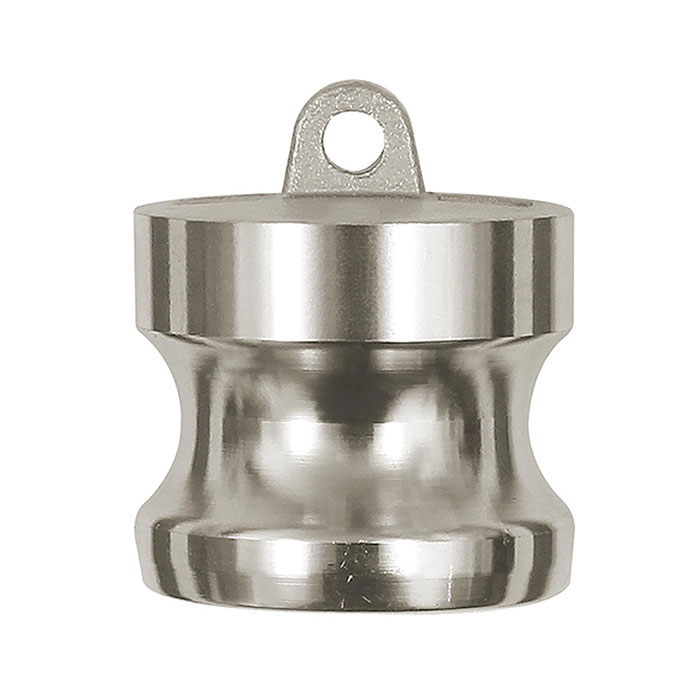

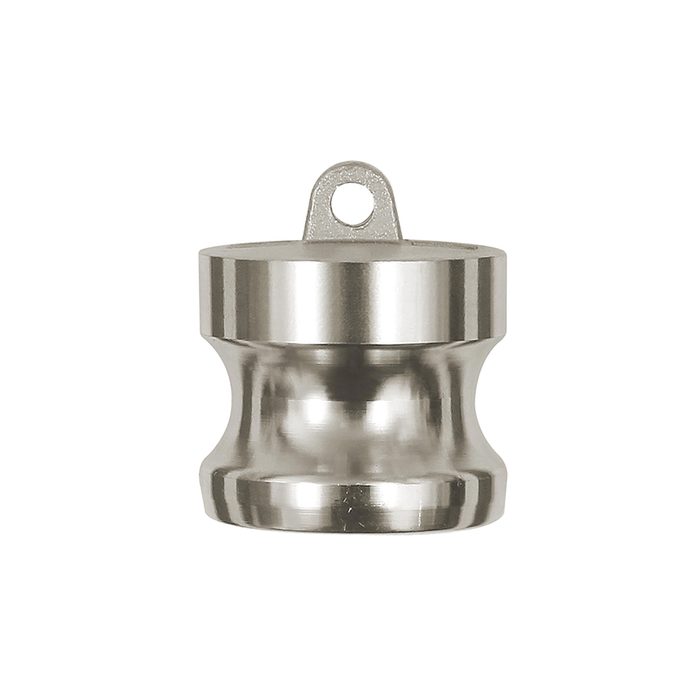

RIEGLER Kamlok cap plug, DP type, St. steel 1.4401, Size 1 1/2, Plug Ø 53
Type number: 1119.112-ES
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Product no. :
108158EAN :
4047322404990Category :
KAMLOK Hose Couplings & AccessoriesWeight :
0.33 kgRIEGLER Kamlok plug for compressed air supply, max. 16 bar - Type 1119.112-ES
The RIEGLER Kamlok plug, type DP, ES 1.4401, 1 1/2, plug Ø 53 enables quick connection according to the Kamlock system. with NBR seals, oil and petrol resistant. Designed for a maximum operating pressure of 16 bar. The temperature range is between -20 °C and 95 °C. Quick coupling for a wide range of media.
Field of application
Typical areas of application: Chemicals, tank technology and food industry.
| Temperature range min. | -20 °C |
| Temperature range max. | 95 °C |
| Sealing material | NBR, oil and petrol resistant |
| Max. operating pressure | 16 bar |
| BG | 1,5 |
| Plug Ø | 53 mm |
| A | 53.4 mm |
| C | 46 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Class name | STAINLESS STEEL |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[108157] RIEGLER Kamlok cap plug, DP type, St. steel 1.4401, Size 1 1/4, Plug Ø 46](/web/image/product.template/192055/image_128/%5B108157%5D%20RIEGLER%20Kamlok%20cap%20plug%2C%20DP%20type%2C%20St.%20steel%201.4401%2C%20Size%201%201-4%2C%20Plug%20%C3%98%2046?unique=ef6fa2a)
|
Type number: 1119.114-ES |
8.20 € | |
![[108156] RIEGLER Kamlok cap plug, DP type, St. steel 1.4401, Size 1, Plug Ø 37](/web/image/product.template/192054/image_128/%5B108156%5D%20RIEGLER%20Kamlok%20cap%20plug%2C%20DP%20type%2C%20St.%20steel%201.4401%2C%20Size%201%2C%20Plug%20%C3%98%2037?unique=6fa7645)
|
Type number: 1119.10-ES |
6.00 € | |
![[108160] RIEGLER Kamlok cap plug, DP type, St. steel 1.4401, Size 2 1/2, Plug Ø 76](/web/image/product.template/192058/image_128/%5B108160%5D%20RIEGLER%20Kamlok%20cap%20plug%2C%20DP%20type%2C%20St.%20steel%201.4401%2C%20Size%202%201-2%2C%20Plug%20%C3%98%2076?unique=d905d91)
|
Type number: 1119.212-ES |
24.04 € | |
![[108159] RIEGLER Kamlok cap plug, DP type, St. steel 1.4401, Size 2, Plug Ø 63](/web/image/product.template/192057/image_128/%5B108159%5D%20RIEGLER%20Kamlok%20cap%20plug%2C%20DP%20type%2C%20St.%20steel%201.4401%2C%20Size%202%2C%20Plug%20%C3%98%2063?unique=c2daffd)
|
Type number: 1119.20-ES |
17.65 € | |
![[108155] RIEGLER Kamlok cap plug, DP type, St. steel 1.4401, Size 3/4, Plug Ø 32](/web/image/product.template/192053/image_128/%5B108155%5D%20RIEGLER%20Kamlok%20cap%20plug%2C%20DP%20type%2C%20St.%20steel%201.4401%2C%20Size%203-4%2C%20Plug%20%C3%98%2032?unique=b41aad3)
|
Type number: 1119.34-ES |
4.68 € | |
![[108161] RIEGLER Kamlok cap plug, DP type, St. steel 1.4401, Size 3, Plug Ø 92](/web/image/product.template/192059/image_128/%5B108161%5D%20RIEGLER%20Kamlok%20cap%20plug%2C%20DP%20type%2C%20St.%20steel%201.4401%2C%20Size%203%2C%20Plug%20%C3%98%2092?unique=fc04c10)
|
Type number: 1119.30-ES |
33.00 € | |
![[108162] RIEGLER Kamlok cap plug, DP type, St. steel 1.4401, Size 4, Plug Ø 120](/web/image/product.template/192060/image_128/%5B108162%5D%20RIEGLER%20Kamlok%20cap%20plug%2C%20DP%20type%2C%20St.%20steel%201.4401%2C%20Size%204%2C%20Plug%20%C3%98%20120?unique=4f87b56)
|
Type number: 1119.40-ES |
46.26 € | |
