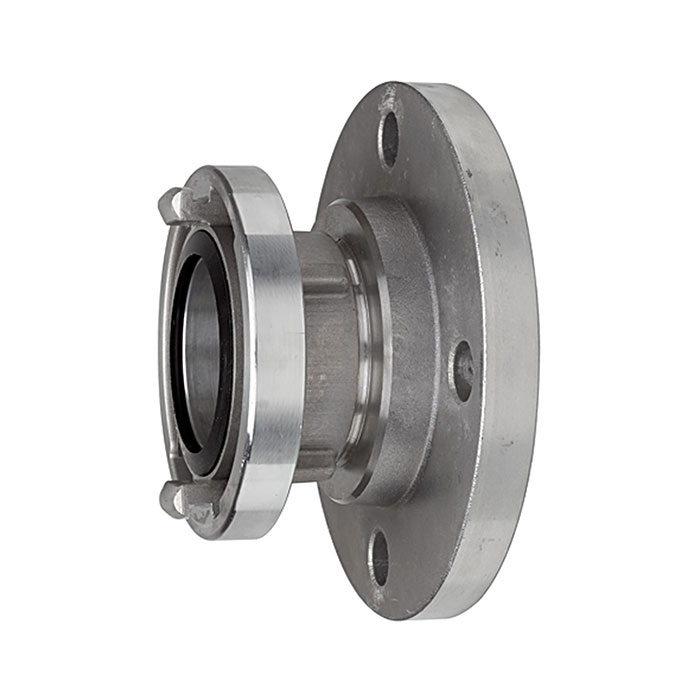

RIEGLER Storz reducer, Alu, Storz size 52-C, Flange DN 40
Type number: 2406.6640
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Storz transition piece made of aluminum, for compressed air supply, max. 16 bar - Type 2406.6640
The RIEGLER Storz transition piece, aluminum, Storz size 52-C, flange DN 40 connects hoses quickly according to the proven Storz system - symmetrical design. The housing is made of aluminum with NBR seals. Designed for a maximum operating pressure of 16 bar. The operating temperature is between -40 °C and 110 °C. Symmetrical coupling - each side fits on each side.
Field of application
Typical areas of application: Fire department, construction site and water technology.
| Sealing material | NBR |
| Max. operating pressure | 16 bar |
| Material | Aluminum |
| Operating temperature min. | -40 °C |
| Operating temperature max. | 110 °C |
| Storz size | 52-C |
| Flange | DN 40 |
| Bolt circle diameter | 110 mm |
| Number of screw holes | 4 |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | no entry |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Material identification | none |
| Bend spacing 1 | 66 mm |
| Class name | FLEX |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[108256] RIEGLER Storz reducer, Alu, Storz size 100, Flange DN 100](/web/image/product.template/192154/image_128/%5B108256%5D%20RIEGLER%20Storz%20reducer%2C%20Alu%2C%20Storz%20size%20100%2C%20Flange%20DN%20100?unique=ac126d2)
|
Type number: 2406.115100 |
195.27 € | |
![[108257] RIEGLER Storz reducer, Alu, Storz size 110-A, Flange DN 100](/web/image/product.template/192155/image_128/%5B108257%5D%20RIEGLER%20Storz%20reducer%2C%20Alu%2C%20Storz%20size%20110-A%2C%20Flange%20DN%20100?unique=43f80ee)
|
Type number: 2406.133100 |
164.83 € | |
![[108250] RIEGLER Storz reducer, Alu, Storz size 25-D, Flange DN 25](/web/image/product.template/192148/image_128/%5B108250%5D%20RIEGLER%20Storz%20reducer%2C%20Alu%2C%20Storz%20size%2025-D%2C%20Flange%20DN%2025?unique=af40b62)
|
Type number: 2406.3125 |
44.33 € | |
![[108252] RIEGLER Storz reducer, Alu, Storz size 52-C, Flange DN 50](/web/image/product.template/192150/image_128/%5B108252%5D%20RIEGLER%20Storz%20reducer%2C%20Alu%2C%20Storz%20size%2052-C%2C%20Flange%20DN%2050?unique=2713dd5)
|
Type number: 2406.6650 |
55.06 € | |

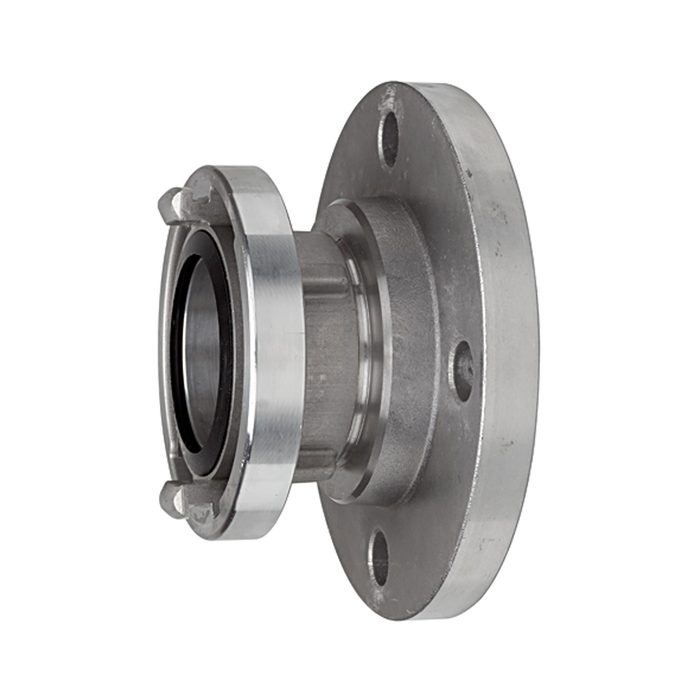

![[108253] RIEGLER Storz reducer, Alu, Storz size 65, Flange DN 65](/web/image/product.template/192151/image_128/%5B108253%5D%20RIEGLER%20Storz%20reducer%2C%20Alu%2C%20Storz%20size%2065%2C%20Flange%20DN%2065?unique=3e348cc)
|
