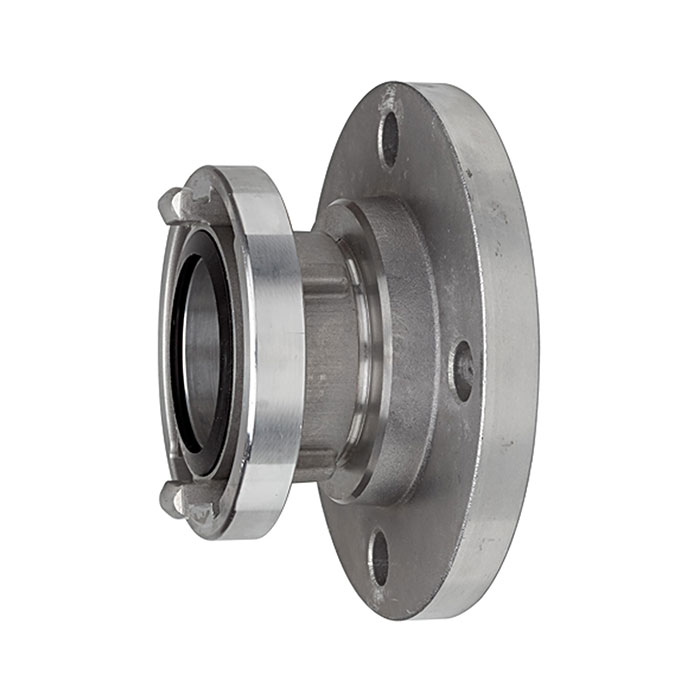

RIEGLER Storz reducer, Alu, Storz size 75-B, Flange DN 80
Type number: 2406.8980
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Storz transition piece made of aluminum, for compressed air supply, max. 16 bar - Type 2406.8980
The RIEGLER Storz transition piece, aluminum, Storz size 75-B, flange DN 80 connects hoses quickly according to the proven Storz system - symmetrical design. The housing is made of aluminum with NBR seals. Designed for a maximum operating pressure of 16 bar. The operating temperature is between -40 °C and 110 °C. Symmetrical coupling - each side fits on each side.
Field of application
Typical areas of application: Fire department, construction site and water technology.
| Sealing material | NBR |
| Max. operating pressure | 16 bar |
| Material | Aluminum |
| Operating temperature min. | -40 °C |
| Operating temperature max. | 110 °C |
| Storz size | 75-B |
| Flange | DN 80 |
| Bolt circle diameter | 160 mm |
| Number of screw holes | 8 |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | no entry |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Material identification | none |
| Bend spacing 1 | 89 mm |
| Class name | FLEX |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[108256] RIEGLER Storz reducer, Alu, Storz size 100, Flange DN 100](/web/image/product.template/192154/image_128/%5B108256%5D%20RIEGLER%20Storz%20reducer%2C%20Alu%2C%20Storz%20size%20100%2C%20Flange%20DN%20100?unique=455ef03)
|
Type number: 2406.115100 |
195.27 € | |

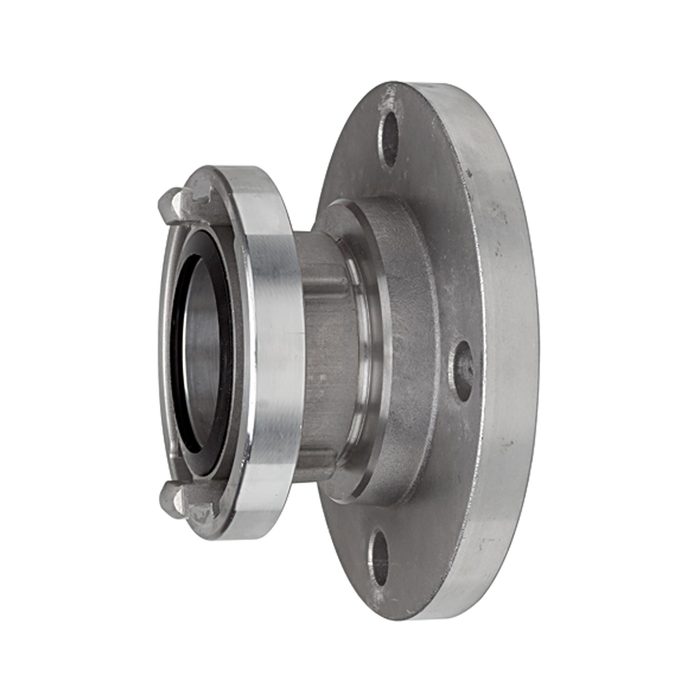

![[108257] RIEGLER Storz reducer, Alu, Storz size 110-A, Flange DN 100](/web/image/product.template/192155/image_128/%5B108257%5D%20RIEGLER%20Storz%20reducer%2C%20Alu%2C%20Storz%20size%20110-A%2C%20Flange%20DN%20100?unique=d7a3a70)
|
