RIEGLER Storz coupling, for shell binding, V4A, Storz size 52-C, I.D. 38
Type number: 3402.6638
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Storz-Kupplung, Schlauchstutzen, für Schaleneinband, drehbar, V4A, Storz-Größe 52-C, LW 38, PN max. 16 bar, Temp. -15°C bis 200°C
| Sealing material | FKM |
| Max. operating pressure | 16 bar |
| Material | Stainless steel V4A |
| Operating temperature min. | -15 °C |
| Operating temperature max. | 200 °C |
| Length | 90 mm |
| Storz size | 52-C |
| Bend spacing | 66 mm |
| Hose LW | 38 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | no entry |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Material identification | none |
| Class name | STAINLESS STEEL |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[108304] RIEGLER Storz coupling, for shell binding, V4A, Storz size 110-A, I.D.100](/web/image/product.template/192202/image_128/%5B108304%5D%20RIEGLER%20Storz%20coupling%2C%20for%20shell%20binding%2C%20V4A%2C%20Storz%20size%20110-A%2C%20I.D.100?unique=bd15093)
|
Type number: 3402.133100 |
676.87 € | |
![[108299] RIEGLER Storz coupling, for shell binding, V4A, Storz size 25-D, I.D. 19](/web/image/product.template/192197/image_128/%5B108299%5D%20RIEGLER%20Storz%20coupling%2C%20for%20shell%20binding%2C%20V4A%2C%20Storz%20size%2025-D%2C%20I.D.%2019?unique=bd15093)
|
Type number: 3402.3119 |
150.86 € | |

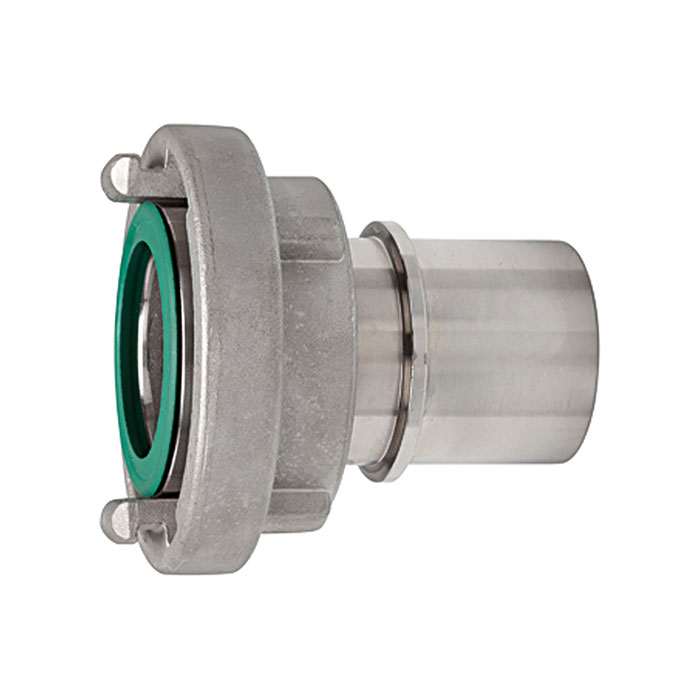

![[108300] RIEGLER Storz coupling, for shell binding, V4A, Storz size 25-D, I.D. 25](/web/image/product.template/192198/image_128/%5B108300%5D%20RIEGLER%20Storz%20coupling%2C%20for%20shell%20binding%2C%20V4A%2C%20Storz%20size%2025-D%2C%20I.D.%2025?unique=bd15093)
|
Type number: 3402.3125 |
150.86 € | |
![[108302] RIEGLER Storz coupling, for shell binding, V4A, Storz size 52-C, I.D. 50](/web/image/product.template/192200/image_128/%5B108302%5D%20RIEGLER%20Storz%20coupling%2C%20for%20shell%20binding%2C%20V4A%2C%20Storz%20size%2052-C%2C%20I.D.%2050?unique=bd15093)
|
Type number: 3402.6650 |
174.20 € | |
![[108303] RIEGLER Storz coupling, for shell binding, V4A, Storz size 75-B, I.D. 75](/web/image/product.template/192201/image_128/%5B108303%5D%20RIEGLER%20Storz%20coupling%2C%20for%20shell%20binding%2C%20V4A%2C%20Storz%20size%2075-B%2C%20I.D.%2075?unique=bd15093)
|
Type number: 3402.8975 |
212.90 € | |
