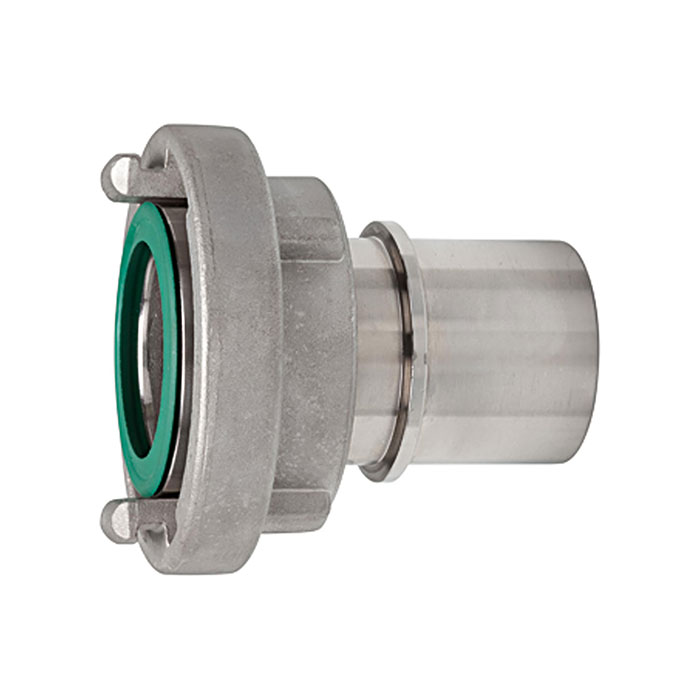

RIEGLER Storz coupling, for shell binding, V4A, Storz size 52-C, I.D. 50
Type number: 3402.6650
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Storz coupling made of stainless steel V4A, for compressed air supply, max. 16 bar - Type 3402.6650
The RIEGLER Storz coupler, spigot, shell fitting, ES V4A, size 52-C, LW 50 connects hoses quickly using the proven Storz system - symmetrical design. The housing is made of V4A stainless steel with FKM seals. Designed for a maximum operating pressure of 16 bar. The operating temperature is between -15 °C and 200 °C. Symmetrical coupling - each side fits on each side.
Field of application
Typical areas of application: Fire department, construction site and water technology.
| Sealing material | FKM |
| Max. operating pressure | 16 bar |
| Material | Stainless steel V4A |
| Operating temperature min. | -15 °C |
| Operating temperature max. | 200 °C |
| Length | 95 mm |
| Storz size | 52-C |
| Bend spacing | 66 mm |
| Hose LW | 50 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | no entry |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Material identification | none |
| Class name | STAINLESS STEEL |
