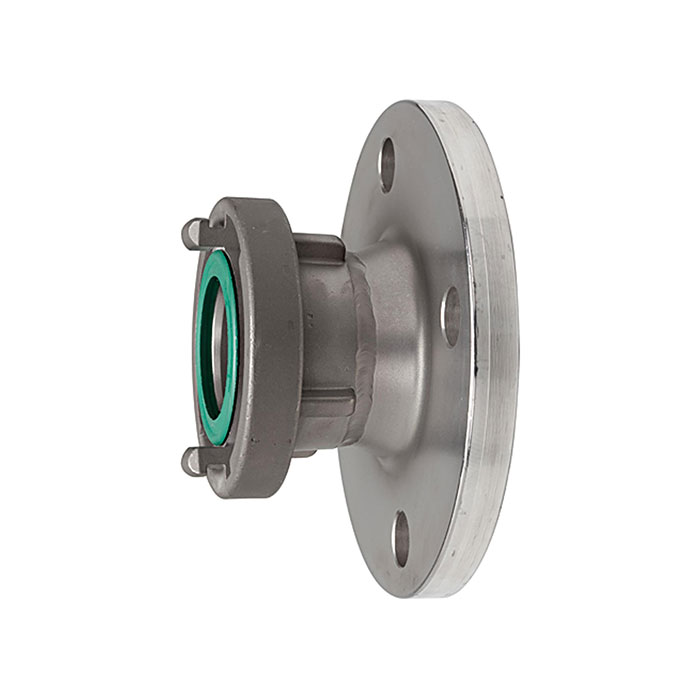

RIEGLER Storz reducer, Stainless steel V4A, Storz size 65, Flange DN 65
Type number: 3406.8165
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Storz transition piece made of stainless steel V4A, for compressed air supply, max. 16 bar - Type 3406.8165
The RIEGLER Storz transition piece, ES V4A, Storz size 65, flange DN 65 connects hoses quickly using the proven Storz system - symmetrical design. The housing is made of V4A stainless steel with FKM seals. Designed for a maximum operating pressure of 16 bar. The operating temperature is between -15 °C and 200 °C. Symmetrical coupling - each side fits on each side.
Field of application
Typical areas of application: Fire department, construction site and water technology.
| Sealing material | FKM |
| Max. operating pressure | 16 bar |
| Material | Stainless steel V4A |
| Operating temperature min. | -15 °C |
| Operating temperature max. | 200 °C |
| Storz size | 65 |
| Flange | DN 65 |
| Bolt circle diameter | 145 mm |
| Number of screw holes | 4 |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | no entry |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Material identification | none |
| Bend spacing 1 | 81 mm |
| Class name | STAINLESS STEEL |
