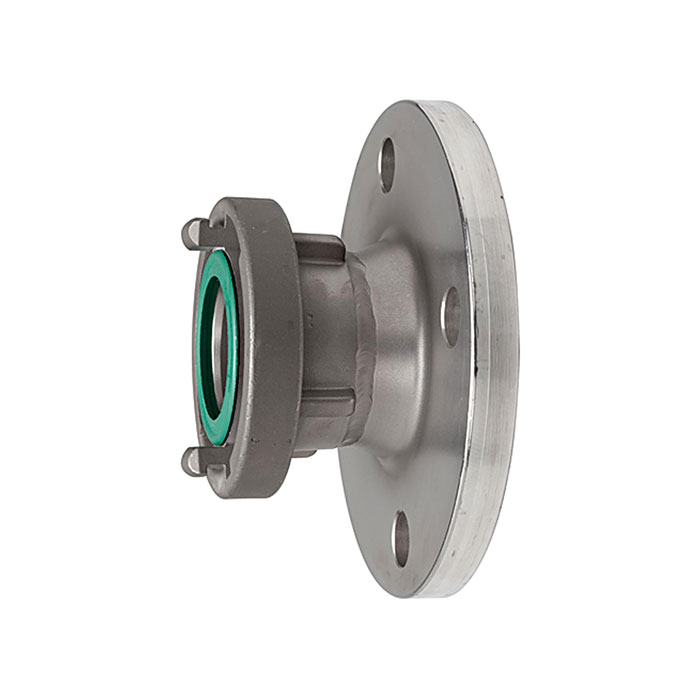

RIEGLER Storz reducer, Stainless steel V4A, Storz size 75-B, Flange DN 65
Type number: 3406.8965
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Storz reducer, Stainless steel V4A, Storz size 75-B, Tappet distance 89 mm, Flange DN 65, Operating pressure max. 16 bar
| Sealing material | FKM |
| Max. operating pressure | 16 bar |
| Material | Stainless steel V4A |
| Operating temperature min. | -15 °C |
| Operating temperature max. | 200 °C |
| Storz size | 75-B |
| Flange | DN 65 |
| Bolt circle diameter | 145 mm |
| Number of screw holes | 4 |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | no entry |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Material identification | none |
| Bend spacing 1 | 89 mm |
| Class name | STAINLESS STEEL |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[108353] RIEGLER Storz reducer, Stainless steel V4A, Storz size 100, Flange DN 100](/web/image/product.template/192251/image_128/%5B108353%5D%20RIEGLER%20Storz%20reducer%2C%20Stainless%20steel%20V4A%2C%20Storz%20size%20100%2C%20Flange%20DN%20100?unique=d150a32)
|
Type number: 3406.115100 |
1,141.61 € | |
![[108354] RIEGLER Storz reducer, Stainless steel V4A, Storz size 110-A Flange DN100](/web/image/product.template/192252/image_128/%5B108354%5D%20RIEGLER%20Storz%20reducer%2C%20Stainless%20steel%20V4A%2C%20Storz%20size%20110-A%20Flange%20DN100?unique=083869b)
|
Type number: 3406.133100 |
793.38 € | |
![[108348] RIEGLER Storz reducer, Stainless steel V4A, Storz size 25-D, Flange DN 25](/web/image/product.template/192246/image_128/%5B108348%5D%20RIEGLER%20Storz%20reducer%2C%20Stainless%20steel%20V4A%2C%20Storz%20size%2025-D%2C%20Flange%20DN%2025?unique=36072cd)
|
Type number: 3406.3125 |
247.51 € | |
![[108349] RIEGLER Storz reducer, Stainless steel V4A, Storz size 52-C, Flange DN 50](/web/image/product.template/192247/image_128/%5B108349%5D%20RIEGLER%20Storz%20reducer%2C%20Stainless%20steel%20V4A%2C%20Storz%20size%2052-C%2C%20Flange%20DN%2050?unique=dca6826)
|
Type number: 3406.6650 |
306.75 € | |
![[108350] RIEGLER Storz reducer, Stainless steel V4A, Storz size 65, Flange DN 65](/web/image/product.template/192248/image_128/%5B108350%5D%20RIEGLER%20Storz%20reducer%2C%20Stainless%20steel%20V4A%2C%20Storz%20size%2065%2C%20Flange%20DN%2065?unique=5971a0e)
|
Type number: 3406.8165 |
511.19 € | |

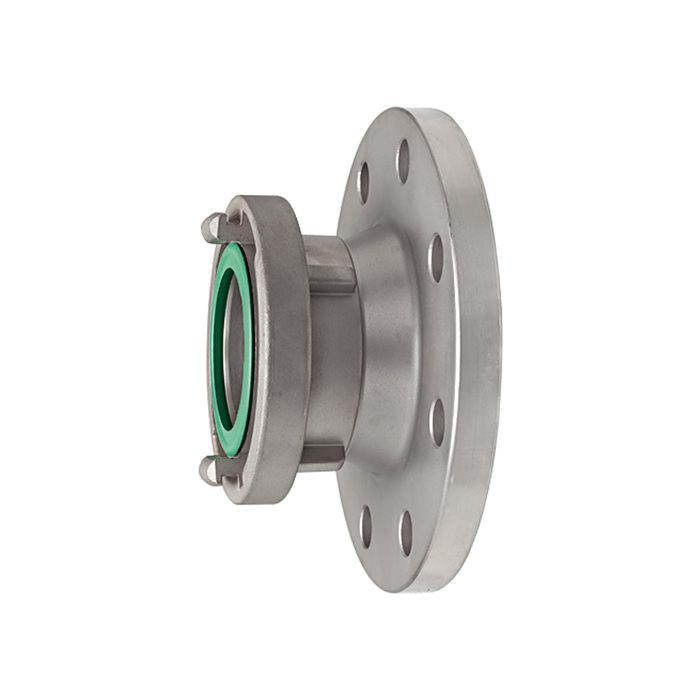

![[108352] RIEGLER Storz reducer, Stainless steel V4A, Storz size 75-B, Flange DN 80](/web/image/product.template/192250/image_128/%5B108352%5D%20RIEGLER%20Storz%20reducer%2C%20Stainless%20steel%20V4A%2C%20Storz%20size%2075-B%2C%20Flange%20DN%2080?unique=46bd652)
|
