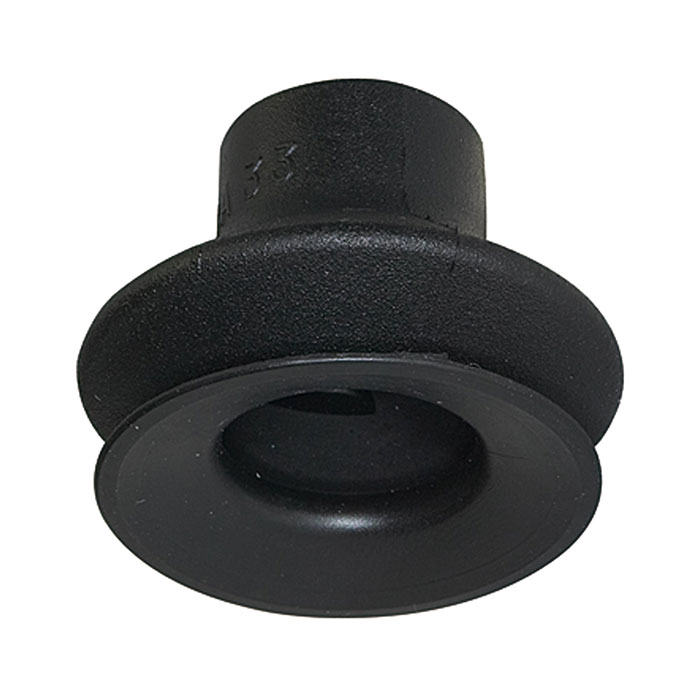

RIEGLER Bellows suction cup, Round 1.5 folds, Material NBR, »FGA« ø20
Type number: FGA 1520-1
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Bellows suction cups for vacuum technology - Type FGA 1520-1
The RIEGLER bellows suction cup, round 1.5 folds, material NBR, FGA, diameter 20 mm lifts and transports workpieces safely by vacuum. Suction force 4.7 N. Gentle workpiece handling without mechanical clamping.
Field of application
Typical areas of application: Robotics, packaging technology and automated handling.
| Diameter | 20 mm |
| Suitable connection nipple IG | G 1/8 |
| Suitable connection nipple AG | M5 / G 1/8 |
| Overall height with nipple IG | 27.5 mm |
| Overall height with nipple AG | 20.5 / 21.5 mm |
| Suction power | 4.7 N |
| Volume | 1.15 cm³ |
| Workpiece radius convex min. | 30 mm |
| Recommended hose Ø | 4 mm |
| Tear-off force | 10.7 N |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[108490] RIEGLER Bellows suction cup, Round 1.5 folds, Material NBR, »FGA« ø11](/web/image/product.template/192387/image_128/%5B108490%5D%20RIEGLER%20Bellows%20suction%20cup%2C%20Round%201.5%20folds%2C%20Material%20NBR%2C%20%C2%BBFGA%C2%AB%20%C3%B811?unique=307b06a)
|
Type number: FGA 1511-1 |
3.94 € | |
![[108491] RIEGLER Bellows suction cup, Round 1.5 folds, Material NBR, »FGA« ø14](/web/image/product.template/192388/image_128/%5B108491%5D%20RIEGLER%20Bellows%20suction%20cup%2C%20Round%201.5%20folds%2C%20Material%20NBR%2C%20%C2%BBFGA%C2%AB%20%C3%B814?unique=da10b59)
|
Type number: FGA 1514-1 |
4.11 € | |
![[108492] RIEGLER Bellows suction cup, Round 1.5 folds, Material NBR, »FGA« ø16](/web/image/product.template/192389/image_128/%5B108492%5D%20RIEGLER%20Bellows%20suction%20cup%2C%20Round%201.5%20folds%2C%20Material%20NBR%2C%20%C2%BBFGA%C2%AB%20%C3%B816?unique=7f91cc8)
|
Type number: FGA 1516-1 |
4.25 € | |
![[108494] RIEGLER Bellows suction cup, Round 1.5 folds, Material NBR, »FGA« ø25](/web/image/product.template/192391/image_128/%5B108494%5D%20RIEGLER%20Bellows%20suction%20cup%2C%20Round%201.5%20folds%2C%20Material%20NBR%2C%20%C2%BBFGA%C2%AB%20%C3%B825?unique=50df7ef)
|
Type number: FGA 1525-1 |
5.34 € | |
![[108495] RIEGLER Bellows suction cup, Round 1.5 folds, Material NBR, »FGA« ø33](/web/image/product.template/192392/image_128/%5B108495%5D%20RIEGLER%20Bellows%20suction%20cup%2C%20Round%201.5%20folds%2C%20Material%20NBR%2C%20%C2%BBFGA%C2%AB%20%C3%B833?unique=7298c32)
|
Type number: FGA 1533-1 |
5.43 € | |
![[108496] RIEGLER Bellows suction cup, Round 1.5 folds, Material NBR, »FGA« ø43](/web/image/product.template/192393/image_128/%5B108496%5D%20RIEGLER%20Bellows%20suction%20cup%2C%20Round%201.5%20folds%2C%20Material%20NBR%2C%20%C2%BBFGA%C2%AB%20%C3%B843?unique=ddb7fe8)
|
Type number: FGA 1543-1 |
7.43 € | |
![[108497] RIEGLER Bellows suction cup, Round 1.5 folds, Material NBR, »FGA« ø53](/web/image/product.template/192394/image_128/%5B108497%5D%20RIEGLER%20Bellows%20suction%20cup%2C%20Round%201.5%20folds%2C%20Material%20NBR%2C%20%C2%BBFGA%C2%AB%20%C3%B853?unique=949f305)
|
Type number: FGA 1553-1 |
9.34 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[108507] RIEGLER Connection nipple for bellows suction cup, round, »FGA« Ø 7](/web/image/product.template/192404/image_128/%5B108507%5D%20RIEGLER%20Connection%20nipple%20for%20bellows%20suction%20cup%2C%20round%2C%20%C2%BBFGA%C2%AB%20%C3%98%207?unique=4e7ebad)
|
Type number: 313.005 |
2.95 € | |
![[108508] RIEGLER Connection nipple for bellows suction cup, round, »FGA« Ø7-25](/web/image/product.template/192405/image_128/%5B108508%5D%20RIEGLER%20Connection%20nipple%20for%20bellows%20suction%20cup%2C%20round%2C%20%C2%BBFGA%C2%AB%20%C3%987-25?unique=823a91d)
|
Type number: 313.018 |
2.95 € | |
![[108511] RIEGLER Connection nipple for bellows suction cup, round, »FGA«](/web/image/product.template/192408/image_128/%5B108511%5D%20RIEGLER%20Connection%20nipple%20for%20bellows%20suction%20cup%2C%20round%2C%20%C2%BBFGA%C2%AB?unique=a2915c4)
|
Type number: 314.018 |
2.95 € | |
