RIEGLER Locking screw, Hexagonal socket, Flange, G 3/4, Stainless steel
Type number: 252.94-2ES
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Screw plug made of stainless steel 1.4571, for pipeline construction, max. 60 bar - Type 252.94-2ES
The RIEGLER screw plug, hexagon socket, collar, G 3/4, SW 12, ES 1.4571 is a high-quality accessory from the RIEGLER range. The housing is made of stainless steel 1.4571. Designed for a maximum operating pressure of 60 bar. Connection thread G 3/4 hexagon socket - suitable for common industry standards. Perfect fit for RIEGLER products - easy installation.
Field of application
Typical areas of application: Maintenance, servicing and expansion of compressed air components.
| Working pressure max. | 60 bar |
| Material | Stainless steel 1.4571 |
| Operating temperature max. | 150 °C |
| Thread | G 3/4 hexagon socket |
| SW | 12 mm |
| L1 | 20 mm |
| L2 | 16 mm |
| Class name | STAINLESS STEEL |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

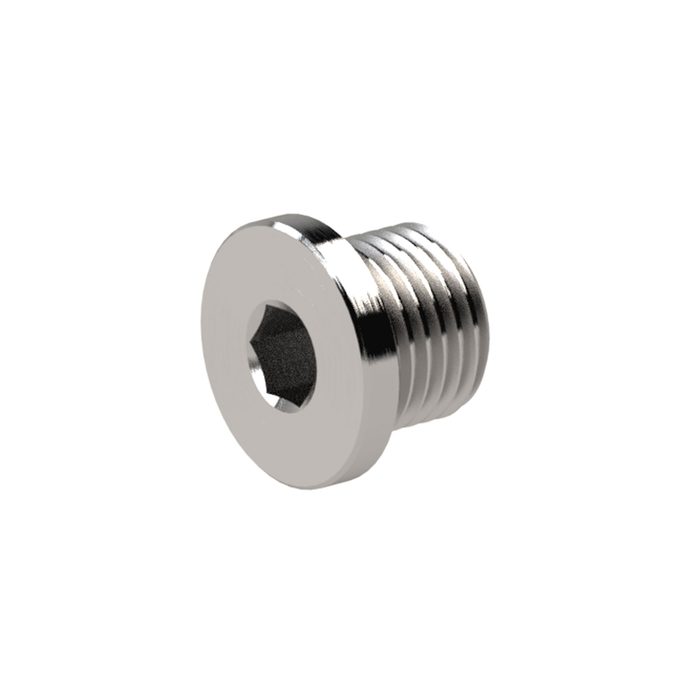

![[111650] RIEGLER Locking screw, Hexagonal socket and flange, G 1, Stainless steel](/web/image/product.template/183571/image_128/%5B111650%5D%20RIEGLER%20Locking%20screw%2C%20Hexagonal%20socket%20and%20flange%2C%20G%201%2C%20Stainless%20steel?unique=02ce1e0)
|
Type number: 252.94-3ES |
19.18 € | |
![[111648] RIEGLER Locking screw, Hexagonal socket, Flange, G 1/2, Stainless steel](/web/image/product.template/183569/image_128/%5B111648%5D%20RIEGLER%20Locking%20screw%2C%20Hexagonal%20socket%2C%20Flange%2C%20G%201-2%2C%20Stainless%20steel?unique=b40f6df)
|
Type number: 252.94-ES |
8.70 € | |
![[111646] RIEGLER Locking screw, Hexagonal socket, Flange, G 1/4, Stainless steel](/web/image/product.template/183567/image_128/%5B111646%5D%20RIEGLER%20Locking%20screw%2C%20Hexagonal%20socket%2C%20Flange%2C%20G%201-4%2C%20Stainless%20steel?unique=c8d59c4)
|
Type number: 252.92-ES |
6.66 € | |
![[111645] RIEGLER Locking screw, Hexagonal socket, Flange, G 1/8, Stainless steel](/web/image/product.template/183566/image_128/%5B111645%5D%20RIEGLER%20Locking%20screw%2C%20Hexagonal%20socket%2C%20Flange%2C%20G%201-8%2C%20Stainless%20steel?unique=c8b424d)
|
Type number: 252.91-ES |
5.49 € | |
![[111647] RIEGLER Locking screw, Hexagonal socket, Flange, G 3/8, Stainless steel](/web/image/product.template/183568/image_128/%5B111647%5D%20RIEGLER%20Locking%20screw%2C%20Hexagonal%20socket%2C%20Flange%2C%20G%203-8%2C%20Stainless%20steel?unique=8806693)
|
Type number: 252.93-ES |
7.63 € | |
