RIEGLER Locking screw, Hexagonal socket and flange, G 1, Stainless steel
Type number: 252.94-3ES
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Verschlussschraube, Innensechskant und Bund, G 1, SW 17, Edelstahl 1.4571, Arbeitsdruck max. 60 bar, Betriebstemp. max. 150 °C
| Working pressure max. | 60 bar |
| Material | Stainless steel 1.4571 |
| Operating temperature max. | 150 °C |
| Thread | G 1 hexagon socket |
| SW | 17 mm |
| L1 | 21 mm |
| L2 | 16 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | no entry |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Material identification | none |
| Class name | STAINLESS STEEL |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[111648] RIEGLER Locking screw, Hexagonal socket, Flange, G 1/2, Stainless steel](/web/image/product.template/183569/image_128/%5B111648%5D%20RIEGLER%20Locking%20screw%2C%20Hexagonal%20socket%2C%20Flange%2C%20G%201-2%2C%20Stainless%20steel?unique=26f5546)
|
Type number: 252.94-ES |
8.70 € | |

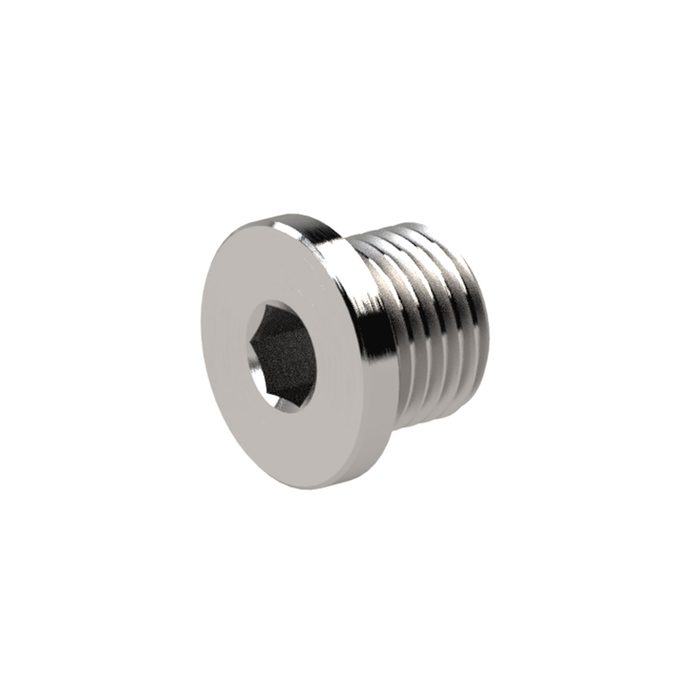

![[111646] RIEGLER Locking screw, Hexagonal socket, Flange, G 1/4, Stainless steel](/web/image/product.template/183567/image_128/%5B111646%5D%20RIEGLER%20Locking%20screw%2C%20Hexagonal%20socket%2C%20Flange%2C%20G%201-4%2C%20Stainless%20steel?unique=f8da3e7)
|
Type number: 252.92-ES |
6.66 € | |
![[111645] RIEGLER Locking screw, Hexagonal socket, Flange, G 1/8, Stainless steel](/web/image/product.template/183566/image_128/%5B111645%5D%20RIEGLER%20Locking%20screw%2C%20Hexagonal%20socket%2C%20Flange%2C%20G%201-8%2C%20Stainless%20steel?unique=519eb6e)
|
Type number: 252.91-ES |
5.49 € | |
![[111649] RIEGLER Locking screw, Hexagonal socket, Flange, G 3/4, Stainless steel](/web/image/product.template/183570/image_128/%5B111649%5D%20RIEGLER%20Locking%20screw%2C%20Hexagonal%20socket%2C%20Flange%2C%20G%203-4%2C%20Stainless%20steel?unique=bc4ab6e)
|
Type number: 252.94-2ES |
15.24 € | |
![[111647] RIEGLER Locking screw, Hexagonal socket, Flange, G 3/8, Stainless steel](/web/image/product.template/183568/image_128/%5B111647%5D%20RIEGLER%20Locking%20screw%2C%20Hexagonal%20socket%2C%20Flange%2C%20G%203-8%2C%20Stainless%20steel?unique=6d74ebc)
|
Type number: 252.93-ES |
7.63 € | |
