RIEGLER Bulkhead fitting, G 1/2 o., G 3/8 i., Stainless steel 1.4571

https://www.filcom-technik.de/web/image/product.template/183619/image_1920?unique=4d15c40

Type number: 252.43-ES

16.24 € 16.240000000000002 EUR 16.24 € VAT Included

29.27 € VAT Included


Price tiers visible after login - register now and get your benefits!

  • Brand

This combination does not exist.


Price Tiers

from 110 € free shipping Details shipping costs
Contact Us
Riegler

Riegler

The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years

Product no. :

111724

EAN :

4047322065146

Category :

Bulkhead Connectors

Weight :

0.04 kg

RIEGLER Bulkhead fitting made of stainless steel 1.4571, for pipeline construction, max. 60 bar - Type 252.43-ES

The RIEGLER bulkhead fitting, G 1/2 a., G 3/8 i., stainless steel 1.4571 permanently connects pipes via threaded connections. The housing is made of stainless steel 1.4571. Designed for a maximum operating pressure of 60 bar. Durable, pressure-resistant pipe connections.

Field of application

Typical areas of application: Pipeline construction and compressed air distribution.

Working pressure max. 60 bar
Material Stainless steel 1.4571
Operating temperature max. 150 °C
SW 1 24 mm
SW 2 24 mm

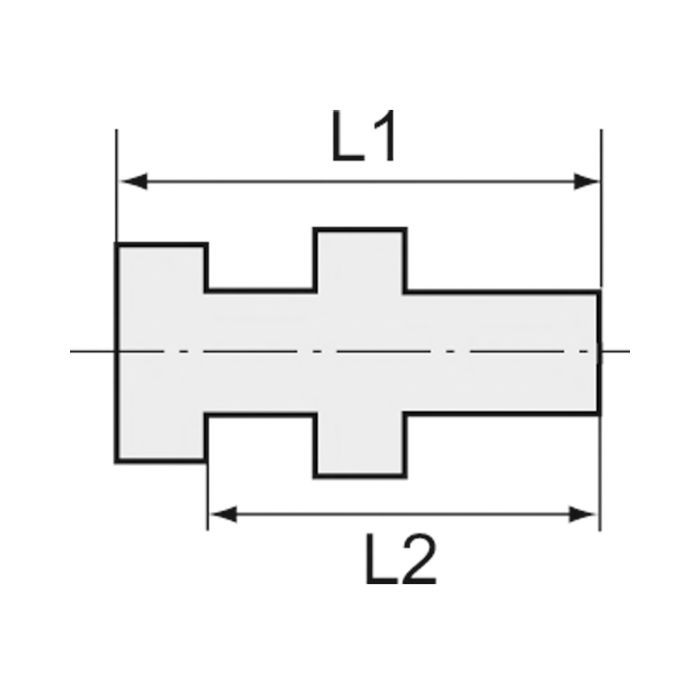

L1 27 mm
L2 21 mm
REACH SVHC1 Substance Name no
CAS No. SVHC 1 none CAS No.
RoHS material information RoHS compliant
RoHS Directive 2011/65/EU, 2015/863/EU, 2018/741/EU
Internal thread G 3/8
External thread G 1/2
RoHS Article of the Directive no entry
Share of SVHC substance in % for RoHS 0
Exception no exception
REACH Info no SVHC substance contained
Share of SVHC SCIP no SVHC substance
Proportion of SVHC substance in SCIP no SVHC substance contained
Material identification none
Class name STAINLESS STEEL

Variants / Alternatives

Product Price

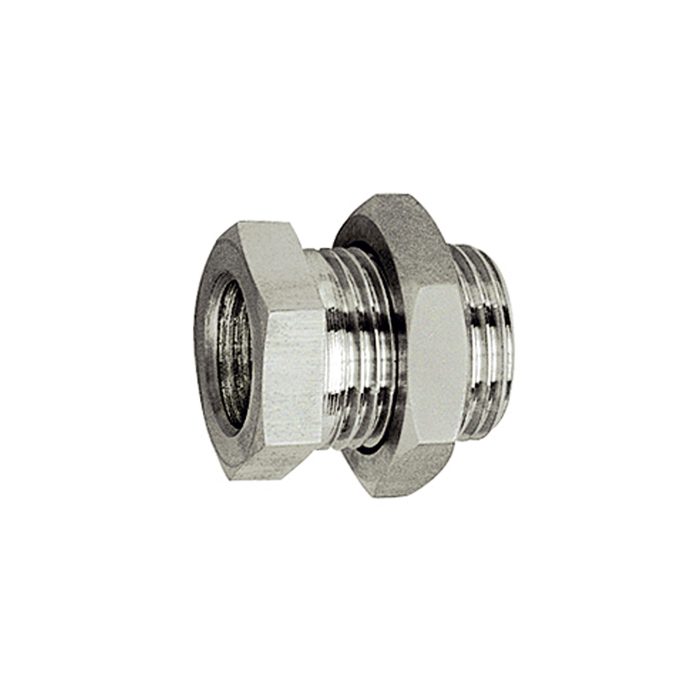

[111722] RIEGLER Bulkhead fitting, G 1/4 o., G 1/8 i., Stainless steel 1.4571
