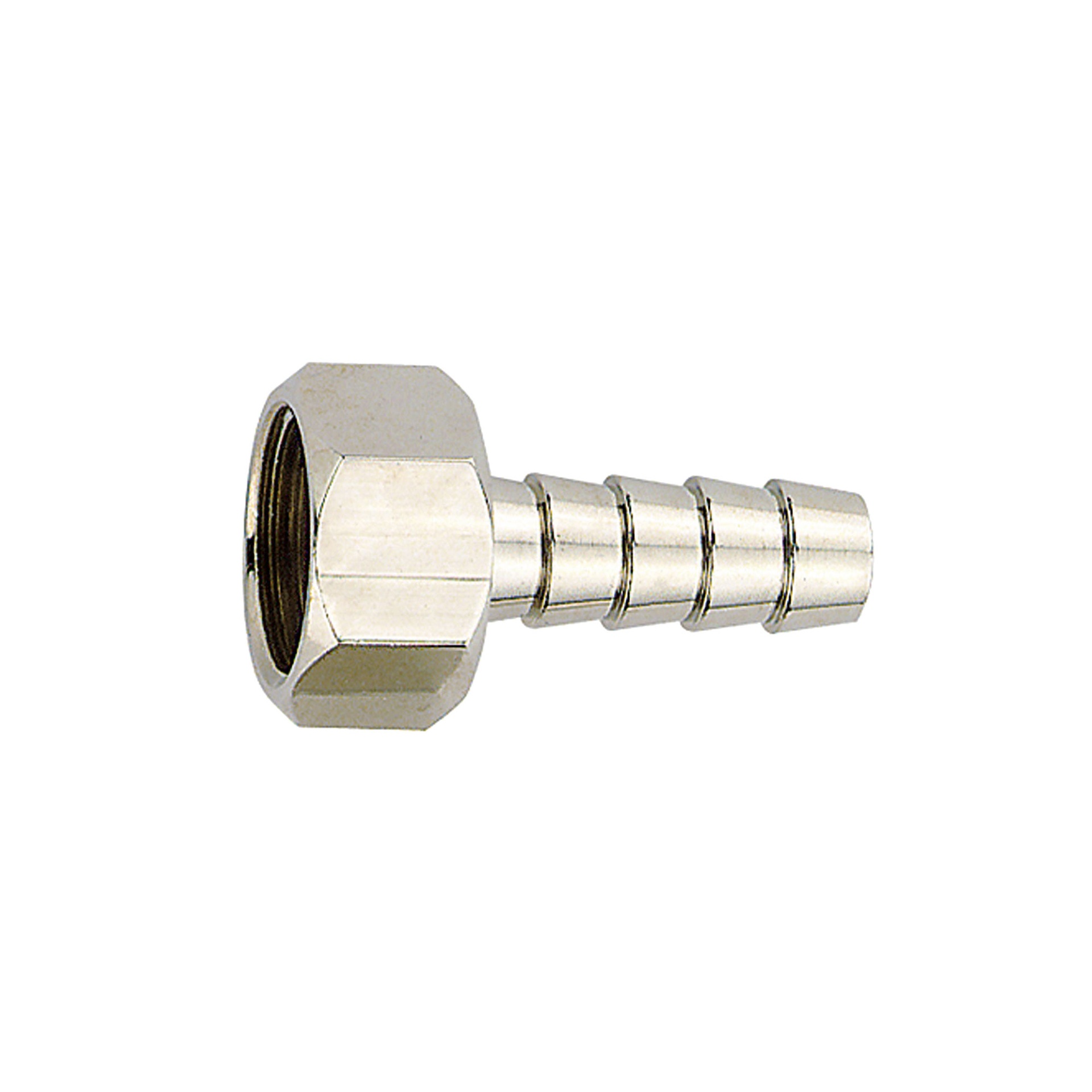

RIEGLER Screw-on hose connector, G 1/4 i., for hose I.D. 6, AF 17
Type number: 239.12-ES
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Screw-on hose nozzle, G 1/4 i., for hose LW 6, SW 17, stainless steel 1.4571, operating pressure max. 60 bar, operating temp. max. 150 °C
| Working pressure max. | 60 bar |
| Material | Stainless steel 1.4571 |
| Operating temperature max. | 150 °C |
| Thread | G 1/4 |
| SW | 17 mm |
| for hose | LW 6 mm |
| L1 | 36 mm |
| L2 | 11 mm |
| Class name | STAINLESS STEEL |
