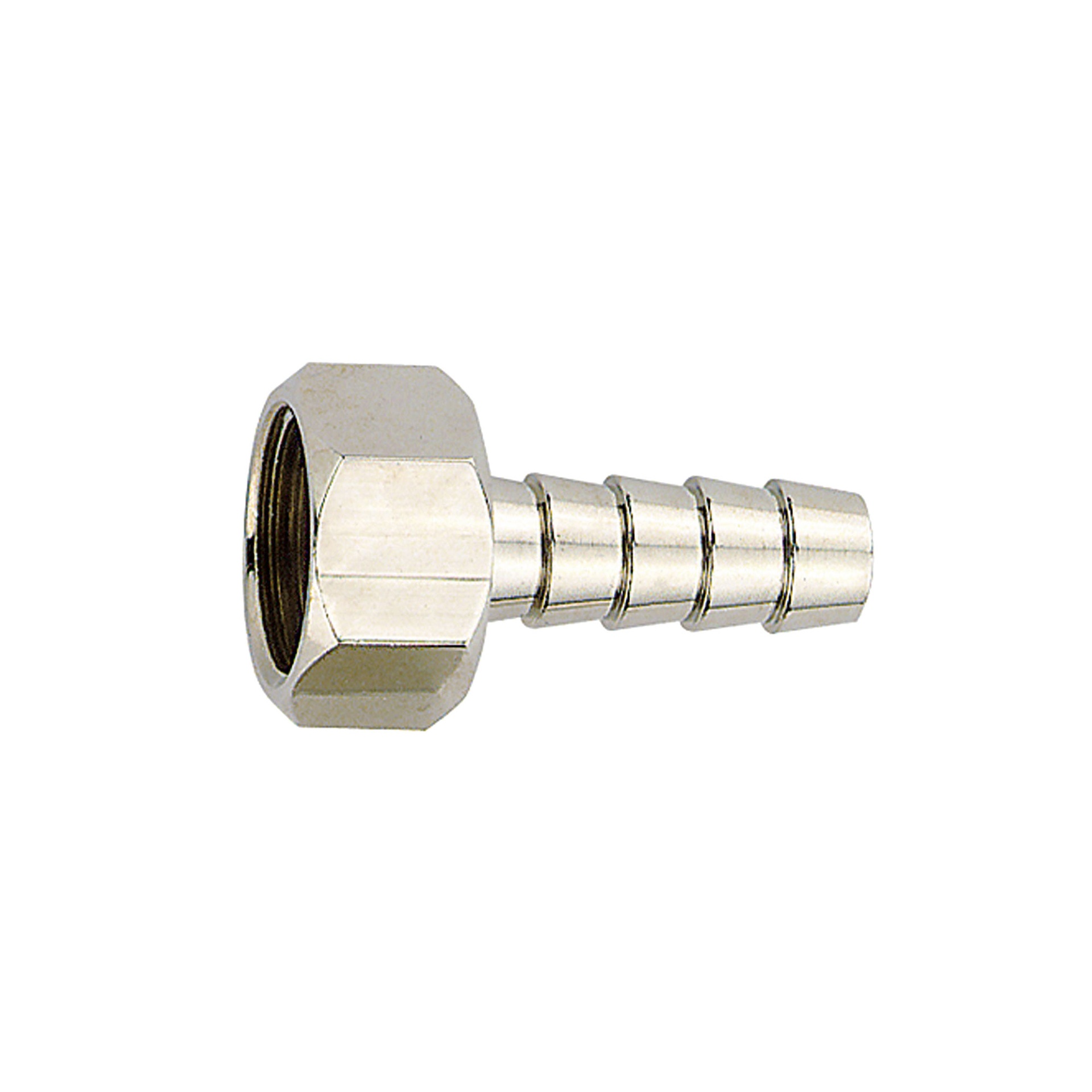

RIEGLER Screw-on hose connector, G 1/4 i., for hose I.D. 8, AF 17
Type number: 239.13-ES
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Screw-on hose nozzle made of stainless steel 1.4571, for pneumatic installation, max. 60 bar - Type 239.13-ES
The RIEGLER screw-on hose nozzle, G 1/4 i., for hose LW 8, ES 1.4571 creates a robust connection between the hose and the threaded connection. The housing is made of stainless steel 1.4571. Designed for a maximum operating pressure of 60 bar. G 1/4 connection thread - suitable for common industry standards. Universally applicable for different hose sizes.
Field of application
Typical areas of application: Water, compressed air and media systems.
| Working pressure max. | 60 bar |
| Material | Stainless steel 1.4571 |
| Operating temperature max. | 150 °C |
| Thread | G 1/4 |
| SW | 17 mm |
| for hose | LW 8 mm |
| L1 | 36 mm |
| L2 | 11 mm |
| Class name | STAINLESS STEEL |
