RIEGLER Adjustable T-fitting, Pipe exterior Ø 15 mm, galvanised steel
Type number: V 545
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Adjustable T-fitting made of galvanized steel (DIN 2353), for pneumatic installation - type V 545
The RIEGLER adjustable T-fitting, pipe outer Ø 15, galvanized steel connects compressed air and pneumatic lines securely and tightly. The housing is made of galvanized steel (DIN 2353). Secure, tight connection for reliable operation.
Field of application
Typical areas of application: Pneumatic installations and compressed air distribution.

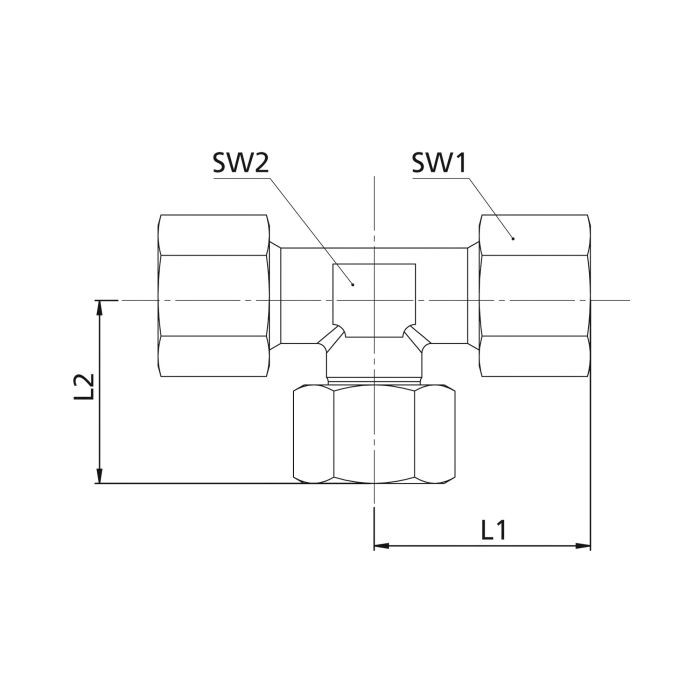

| Material | Galvanized steel (DIN 2353) |
| SW 1 | 27 mm |
| SW 2 | 19 mm |
| Tube outer Ø | 15 mm |
| PN | 315 bar |
| Female nut thread | M22x1.5 |
| L1 | 72 mm |
| L2 | 32.5 mm |
| Class name | FLEX |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[112091] RIEGLER Adjustable T-fitting, Pipe exterior Ø 10 mm, galvanised steel](/web/image/product.template/183986/image_128/%5B112091%5D%20RIEGLER%20Adjustable%20T-fitting%2C%20Pipe%20exterior%20%C3%98%2010%20mm%2C%20galvanised%20steel?unique=8985c13)
|
Type number: V 543 |
10.23 € | |
![[112092] RIEGLER Adjustable T-fitting, Pipe exterior Ø 12 mm, galvanised steel](/web/image/product.template/183987/image_128/%5B112092%5D%20RIEGLER%20Adjustable%20T-fitting%2C%20Pipe%20exterior%20%C3%98%2012%20mm%2C%20galvanised%20steel?unique=9a516bf)
|
Type number: V 544 |
10.72 € | |
![[112094] RIEGLER Adjustable T-fitting, Pipe exterior Ø 18 mm, galvanised steel](/web/image/product.template/183989/image_128/%5B112094%5D%20RIEGLER%20Adjustable%20T-fitting%2C%20Pipe%20exterior%20%C3%98%2018%20mm%2C%20galvanised%20steel?unique=6fb99df)
|
Type number: V 546 |
18.75 € | |
![[112095] RIEGLER Adjustable T-fitting, Pipe exterior Ø 22 mm, galvanised steel](/web/image/product.template/183990/image_128/%5B112095%5D%20RIEGLER%20Adjustable%20T-fitting%2C%20Pipe%20exterior%20%C3%98%2022%20mm%2C%20galvanised%20steel?unique=8addb3d)
|
Type number: V 547 |
28.99 € | |
![[112089] RIEGLER Adjustable T-fitting, Pipe exterior Ø 6 mm, galvanised steel](/web/image/product.template/183984/image_128/%5B112089%5D%20RIEGLER%20Adjustable%20T-fitting%2C%20Pipe%20exterior%20%C3%98%206%20mm%2C%20galvanised%20steel?unique=51156bd)
|
Type number: V 541 |
8.47 € | |
![[112090] RIEGLER Adjustable T-fitting, Pipe exterior Ø 8 mm, galvanised steel](/web/image/product.template/183985/image_128/%5B112090%5D%20RIEGLER%20Adjustable%20T-fitting%2C%20Pipe%20exterior%20%C3%98%208%20mm%2C%20galvanised%20steel?unique=f8fe3de)
|
Type number: V 542 |
8.91 € | |

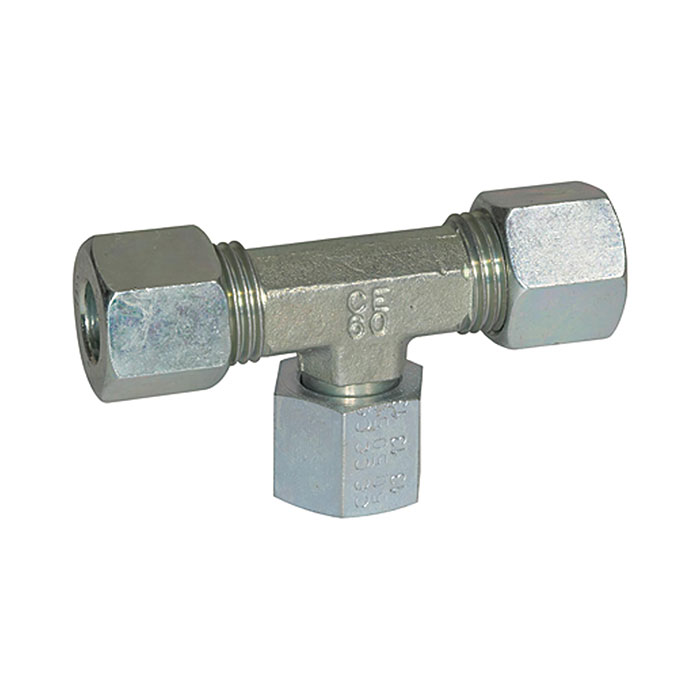

![[159006] RIEGLER Adjustable T-fitting, Pipe ext. Ø 28, galvanised steel](/web/image/product.template/214875/image_128/%5B159006%5D%20RIEGLER%20Adjustable%20T-fitting%2C%20Pipe%20ext.%20%C3%98%2028%2C%20galvanised%20steel?unique=531aaa5)
|
Typennummer: ETVM3628LST |
48.16 € | |
