RIEGLER Adjustable T-fitting, Pipe exterior Ø 22 mm, galvanised steel
Type number: V 547
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Adjustable T-fitting, sealing cone, 360° rotatable, nut M30x2.0 i., outer pipe Ø 22 mm, PN max. 160 bar, galvanized steel
| Material | Galvanized steel (DIN 2353) |

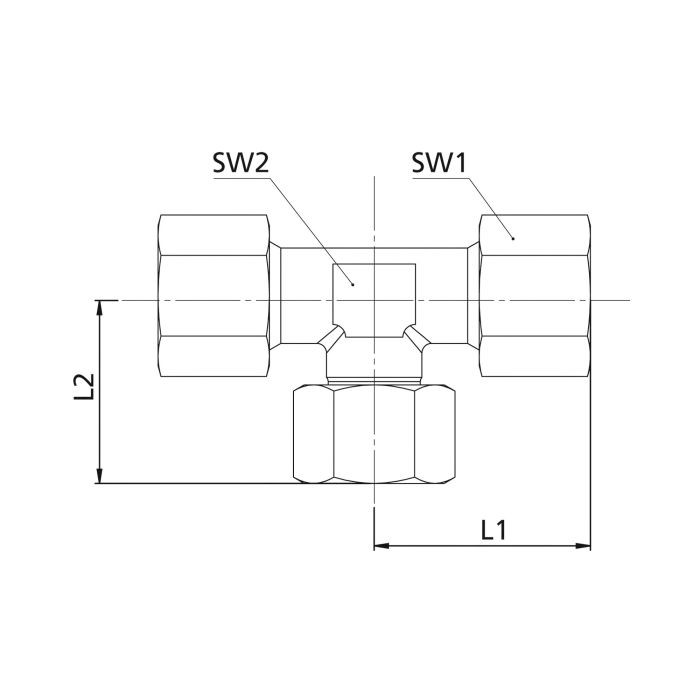

| SW 1 | 36 mm |
| SW 2 | 27 mm |
| Tube outer Ø | 22 mm |
| PN | 160 bar |
| Female nut thread | M30x2.0 |
| L1 | 88 mm |
| L2 | 38.5 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | no entry |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Material identification | none |
| Class name | FLEX |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[112091] RIEGLER Adjustable T-fitting, Pipe exterior Ø 10 mm, galvanised steel](/web/image/product.template/183986/image_128/%5B112091%5D%20RIEGLER%20Adjustable%20T-fitting%2C%20Pipe%20exterior%20%C3%98%2010%20mm%2C%20galvanised%20steel?unique=2ee851e)
|
Type number: V 543 |
10.23 € | |
![[112092] RIEGLER Adjustable T-fitting, Pipe exterior Ø 12 mm, galvanised steel](/web/image/product.template/183987/image_128/%5B112092%5D%20RIEGLER%20Adjustable%20T-fitting%2C%20Pipe%20exterior%20%C3%98%2012%20mm%2C%20galvanised%20steel?unique=4ac7ec5)
|
Type number: V 544 |
10.72 € | |
![[112093] RIEGLER Adjustable T-fitting, Pipe exterior Ø 15 mm, galvanised steel](/web/image/product.template/183988/image_128/%5B112093%5D%20RIEGLER%20Adjustable%20T-fitting%2C%20Pipe%20exterior%20%C3%98%2015%20mm%2C%20galvanised%20steel?unique=1e0ab85)
|
Type number: V 545 |
14.10 € | |
![[112094] RIEGLER Adjustable T-fitting, Pipe exterior Ø 18 mm, galvanised steel](/web/image/product.template/183989/image_128/%5B112094%5D%20RIEGLER%20Adjustable%20T-fitting%2C%20Pipe%20exterior%20%C3%98%2018%20mm%2C%20galvanised%20steel?unique=a8a271e)
|
Type number: V 546 |
18.75 € | |
![[112089] RIEGLER Adjustable T-fitting, Pipe exterior Ø 6 mm, galvanised steel](/web/image/product.template/183984/image_128/%5B112089%5D%20RIEGLER%20Adjustable%20T-fitting%2C%20Pipe%20exterior%20%C3%98%206%20mm%2C%20galvanised%20steel?unique=8762fdb)
|
Type number: V 541 |
8.47 € | |

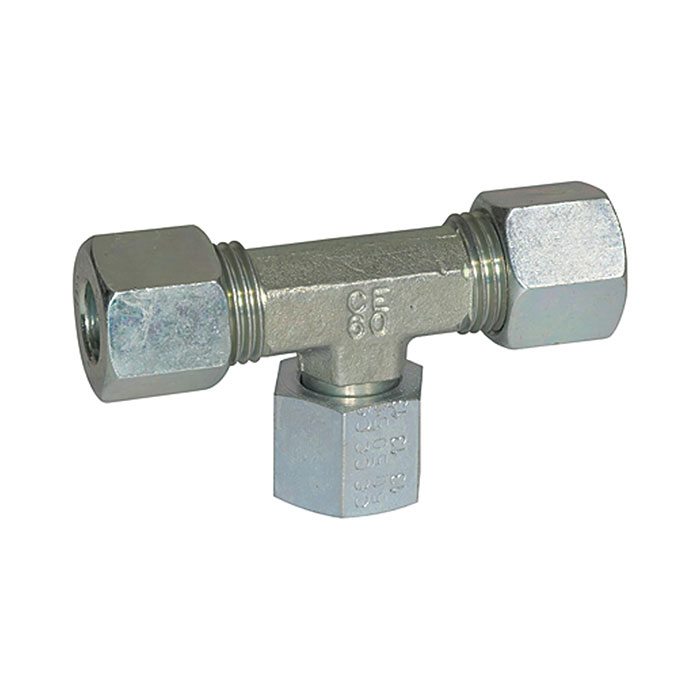

![[112090] RIEGLER Adjustable T-fitting, Pipe exterior Ø 8 mm, galvanised steel](/web/image/product.template/183985/image_128/%5B112090%5D%20RIEGLER%20Adjustable%20T-fitting%2C%20Pipe%20exterior%20%C3%98%208%20mm%2C%20galvanised%20steel?unique=cde4d4a)
|
