RIEGLER Straight screw-in fitting, R 1/8 o., Pipe exterior Ø 5 mm
Type number: V 22
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Straight screw-in fitting made of galvanized steel (DIN 2353), for pneumatic installation - type V 22
The RIEGLER straight screw-in fitting, R 1/8 a., pipe Ø 5, galvanized steel creates a permanent, metal-to-metal sealing pipe connection based on the proven cutting ring principle. The housing is made of galvanized steel (DIN 2353). Connection thread R 1/8 - suitable for common industry standards. Permanently tight - even with vibration and temperature fluctuations.
Field of application
Typical areas of application: Compressed air distribution, hydraulics and process technology.
| Material | Galvanized steel (DIN 2353) |
| Thread | R 1/8 |
| SW 1 | 12 mm |
| SW 2 | 11 mm |
| Tube outer Ø | 5 mm |
| PN | 100 bar |
| L1 | 26 mm |
| L2 | 8 mm |
| Class name | FLEX |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[159630] RIEGLER Straight screw-in fitting, R 1/4o. Pipe ext.Ø10, galvanised steel](/web/image/product.template/215416/image_128/%5B159630%5D%20RIEGLER%20Straight%20screw-in%20fitting%2C%20R%201-4o.%20Pipe%20ext.%C3%9810%2C%20galvanised%20steel?unique=cebdfb2)
|
Typennummer: GER1410SLST |
1.86 € | |
![[159631] RIEGLER Straight screw-in fitting, R 1/4o. Pipe ext.Ø12, galvanised steel](/web/image/product.template/215417/image_128/%5B159631%5D%20RIEGLER%20Straight%20screw-in%20fitting%2C%20R%201-4o.%20Pipe%20ext.%C3%9812%2C%20galvanised%20steel?unique=df990e7)
|
Typennummer: GER1412SLST |
2.18 € | |

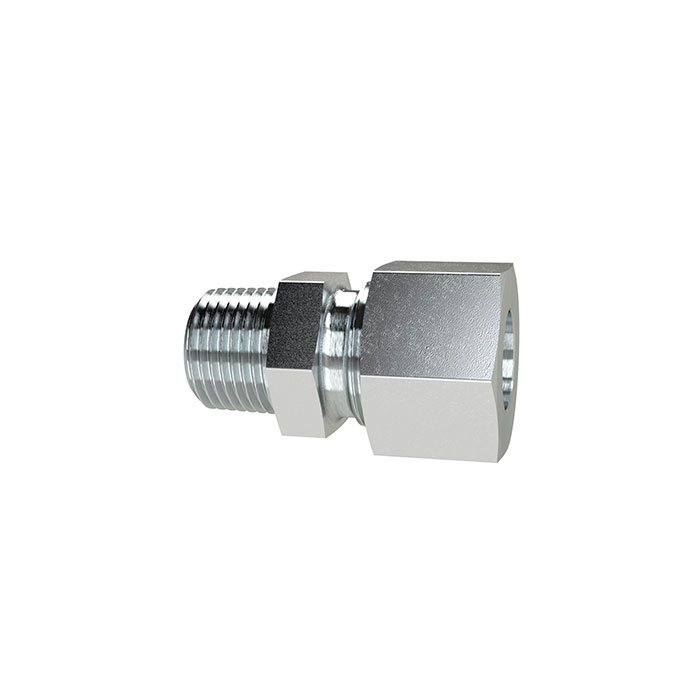

![[159629] RIEGLER Straight screw-in fitting, R 1/4o. Pipe ext.Ø8, galvanised steel](/web/image/product.template/215415/image_128/%5B159629%5D%20RIEGLER%20Straight%20screw-in%20fitting%2C%20R%201-4o.%20Pipe%20ext.%C3%988%2C%20galvanised%20steel?unique=cc1bfdd)
|
