RIEGLER Straight screw-in fitting, R 1/8 o., Pipe exterior Ø 6 mm
Type number: V 23
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Straight screw-in fitting, R 1/8 a., outer pipe Ø 6 mm, PN bar 100, SW1 12, SW2 11, galvanized steel
| Material | Galvanized steel (DIN 2353) |
| Thread | R 1/8 |
| SW 1 | 12 mm |
| SW 2 | 11 mm |
| Tube outer Ø | 6 mm |
| PN | 100 bar |
| L1 | 26 mm |
| L2 | 8 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | no entry |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Material identification | none |
| Class name | FLEX |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[159630] RIEGLER Straight screw-in fitting, R 1/4o. Pipe ext.Ø10, galvanised steel](/web/image/product.template/215416/image_128/%5B159630%5D%20RIEGLER%20Straight%20screw-in%20fitting%2C%20R%201-4o.%20Pipe%20ext.%C3%9810%2C%20galvanised%20steel?unique=04b1d09)
|
Typennummer: GER1410SLST |
1.86 € | |
![[159631] RIEGLER Straight screw-in fitting, R 1/4o. Pipe ext.Ø12, galvanised steel](/web/image/product.template/215417/image_128/%5B159631%5D%20RIEGLER%20Straight%20screw-in%20fitting%2C%20R%201-4o.%20Pipe%20ext.%C3%9812%2C%20galvanised%20steel?unique=546bdd7)
|
Typennummer: GER1412SLST |
2.18 € | |

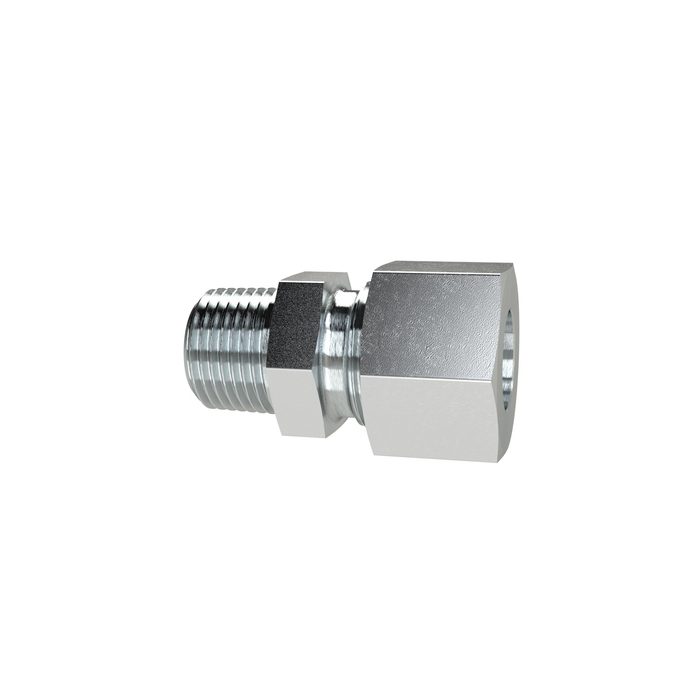

![[159629] RIEGLER Straight screw-in fitting, R 1/4o. Pipe ext.Ø8, galvanised steel](/web/image/product.template/215415/image_128/%5B159629%5D%20RIEGLER%20Straight%20screw-in%20fitting%2C%20R%201-4o.%20Pipe%20ext.%C3%988%2C%20galvanised%20steel?unique=f370816)
|
