RIEGLER Adjustable straight screw-in fitting, Sealing cone, G 1/8
Type number: ES 501
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years

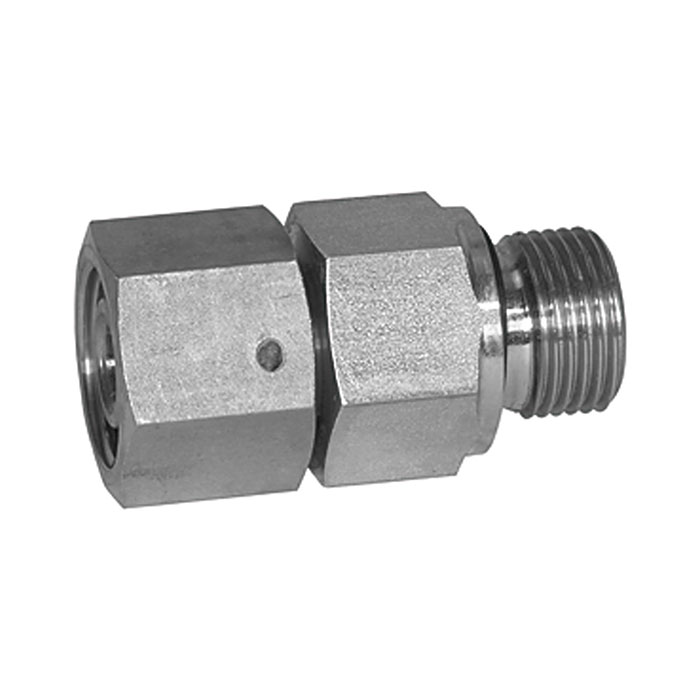

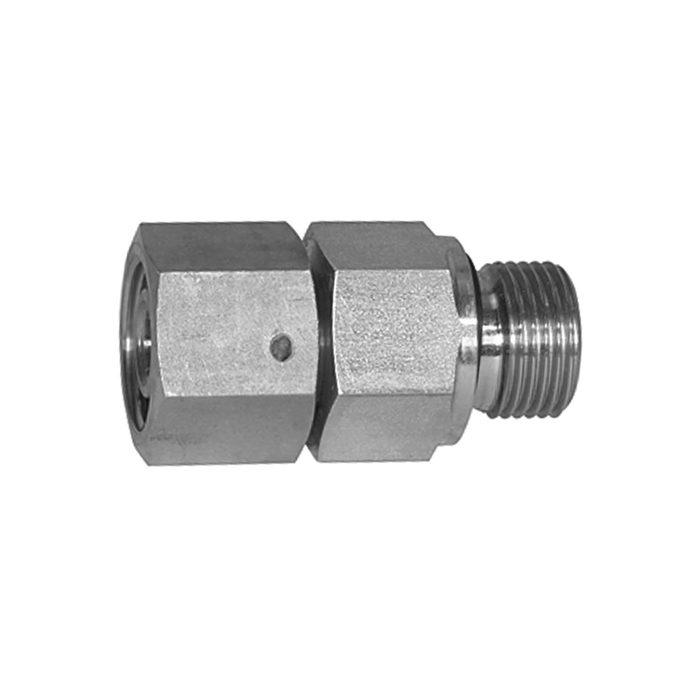

RIEGLER Adjustable straight screw-in plug. Sealing cone made of stainless steel 1.4571 (DIN 2353) - type ES 501
The RIEGLER adjustable straight screw-in plug, G 1/8, ES Ø6mm connects compressed air and pneumatic lines securely and tightly. The housing is made of stainless steel 1.4571 (DIN 2353). Connection thread G 1/8 - suitable for common industry standards. Secure, tight connection for reliable operation.
Field of application
Typical areas of application: Pneumatic installations and compressed air distribution.
| Material | Stainless steel 1.4571 (DIN 2353) |
| Thread | G 1/8 |
| Tube outer Ø | 6 mm |
| PN | 315 bar |
| Female nut thread | M12x1.5 |
| L1 | 32.5 mm |
| L2 | 8 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | no entry |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Material identification | 14571 |
| Class name | STAINLESS STEEL |
