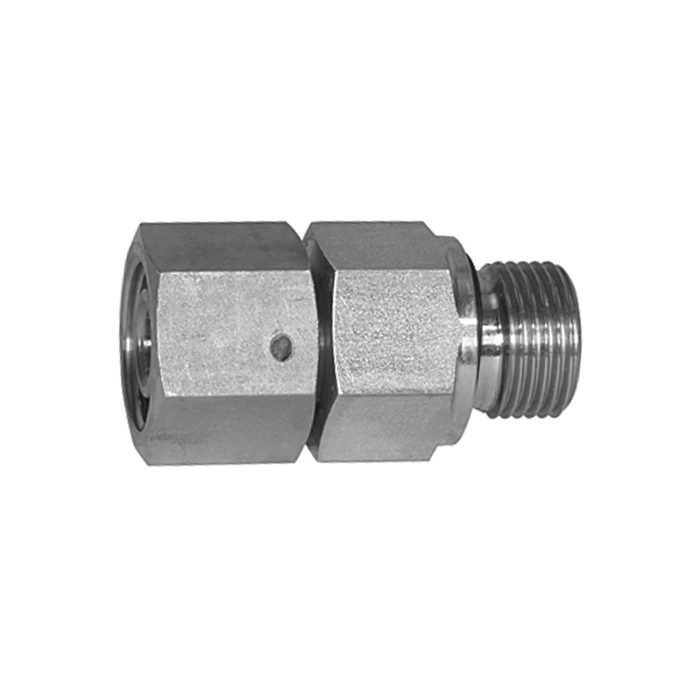

RIEGLER Adjustable straight screw-in fitting, Sealing cone, G 1/2
Type number: ES 505
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Adjustable straight screw-in plug. Sealing cone made of stainless steel 1.4571 (DIN 2353) - Type ES 505
The RIEGLER adjustable straight screw-in plug, sealing cone, G1/2, ES Ø15mm connects compressed air and pneumatic lines safely and tightly. The housing is made of stainless steel 1.4571 (DIN 2353). Connection thread G 1/2 - suitable for common industry standards. Secure, tight connection for reliable operation.
Field of application
Typical areas of application: Pneumatic installations and compressed air distribution.
| Material | Stainless steel 1.4571 (DIN 2353) |
| Thread | G 1/2 |
| Tube outer Ø | 15 mm |
| PN | 315 bar |
| Female nut thread | M22x1.5 |
| L1 | 46 mm |
| L2 | 14 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | no entry |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Material identification | 14571 |
| Class name | STAINLESS STEEL |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

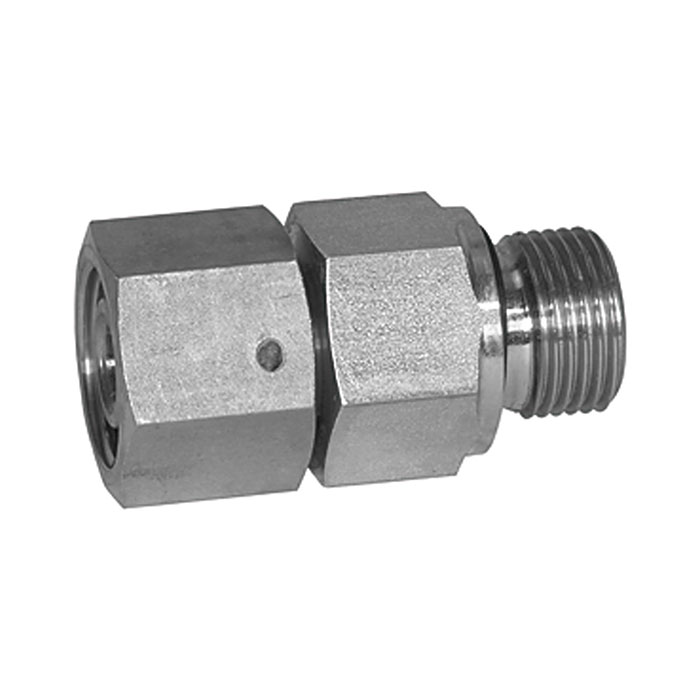

![[112316] RIEGLER Adjustable straight screw-in fitting, Sealing cone, G 1/2](/web/image/product.template/184211/image_128/%5B112316%5D%20RIEGLER%20Adjustable%20straight%20screw-in%20fitting%2C%20Sealing%20cone%2C%20G%201-2?unique=2169ce9)
|
