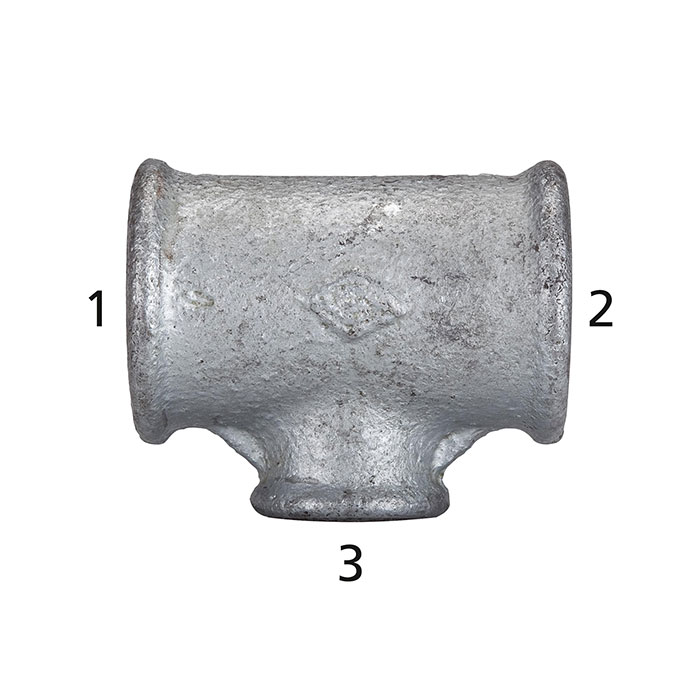

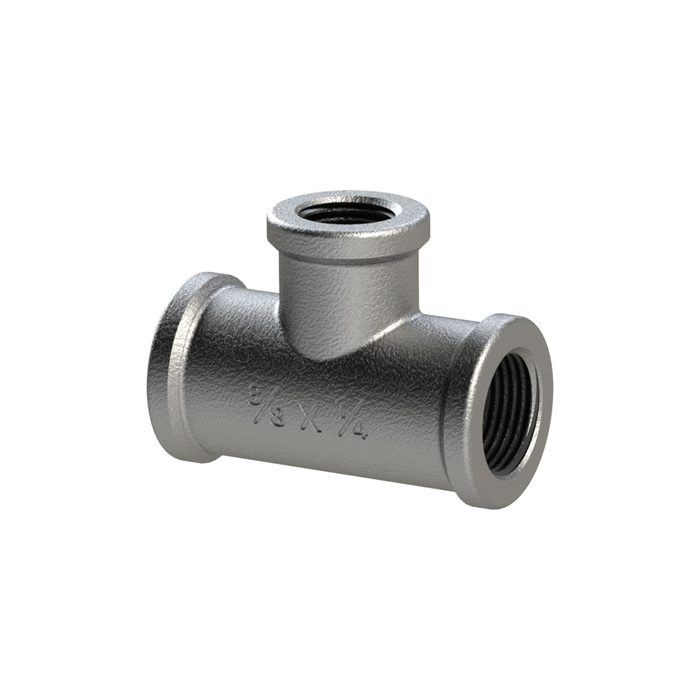

RIEGLER T-piece 130, IT/IT/IT, Rp 1 1/4, T-branch Rp 1
Type number: TFT 130-11410
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years

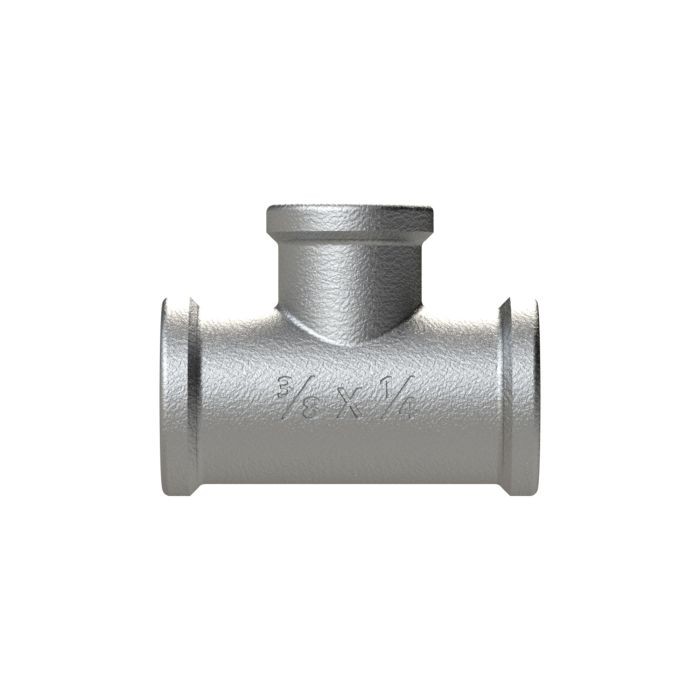

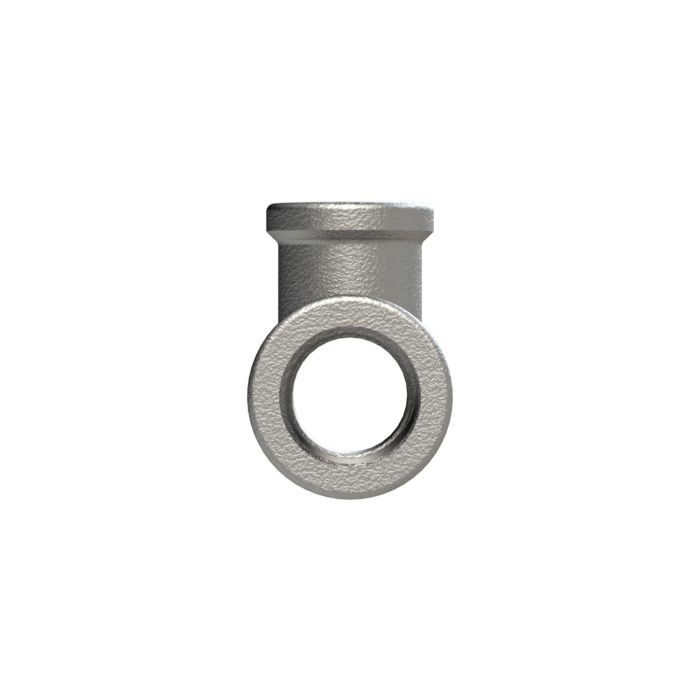

T-Stück 130, IG/IG/IG, Rp 1 1/4, T-Abzweig red. Rp 1, Betriebstemperatur -20 °C bis 300 °C, schwarzer Temperguss, feuerverzinkt
| Temperature range min. | -20 °C |
| Temperature range max. | 300 °C |
| Material | black malleable cast iron B350-10 Design Symbol A |
| Surface | hot-dip galvanized |
| Thread standard | according to ISO 7-1 |
| Thread 2 T-branch reduced | Rp 1 |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | no entry |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Thread 1 | Rp 1 1/4 |
| Thread 3 | Rp 1 1/4 |
| Class name | FLEX |
