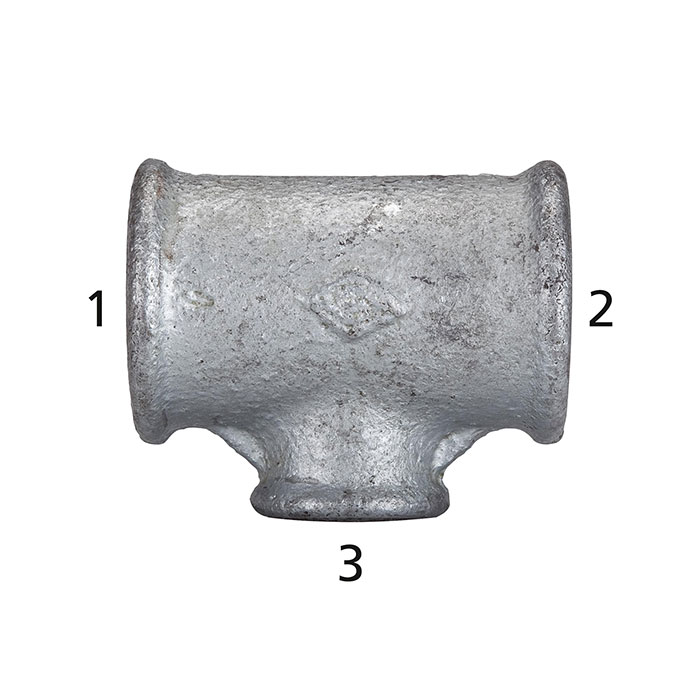

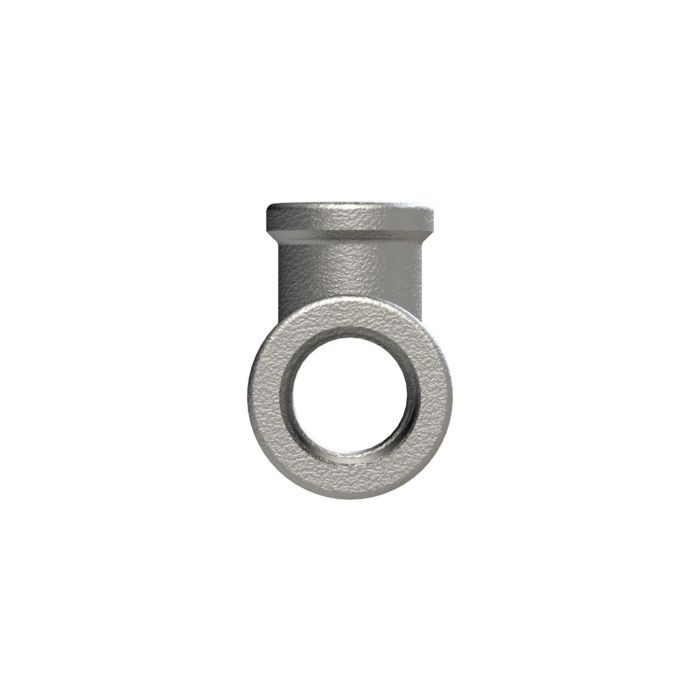

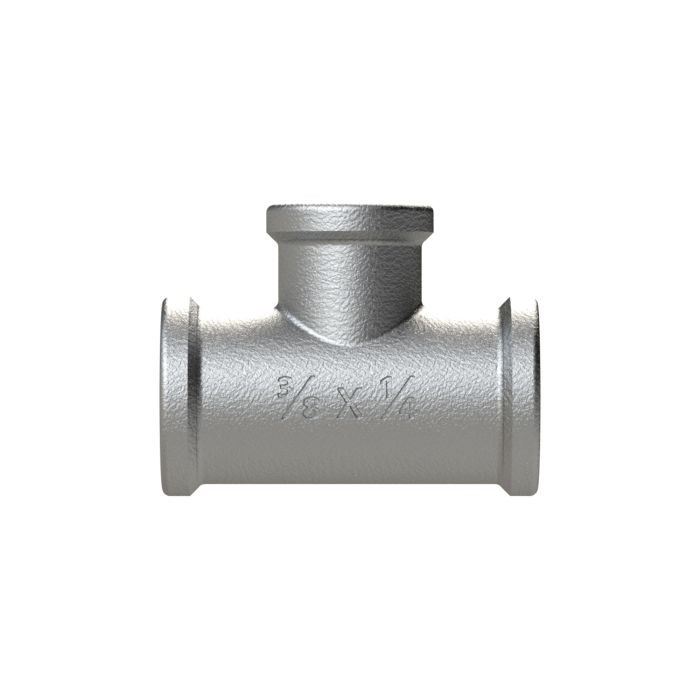

RIEGLER T-piece 130, IT/IT/IT, Rp 1 1/2, T-branch Rp 3/4
Type number: TFT 130-11234
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER T-piece 130 made of black malleable cast iron B350-10 Design Symbol A, for pipeline construction - Type TFT 130-11234
The RIEGLER T-piece 130, IG/IG/IG, Rp 1 1/2, T-branch Rp 3/4, black malleable iron connects pipes permanently and resiliently - particularly robust. The housing is made of black malleable cast iron B350-10 design symbol A. The temperature range is between -20 °C and 300 °C. Extremely robust and durable - even at high temperatures.
Field of application
Typical areas of application: Piping systems in industry, building services and compressed air distribution.
| Temperature range min. | -20 °C |
| Temperature range max. | 300 °C |
| Material | black malleable cast iron B350-10 Design Symbol A |
| Surface | hot-dip galvanized |
| Thread standard | according to ISO 7-1 |
| Thread 2 T-branch reduced | Rp 3/4 |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | no entry |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Thread 1 | Rp 1 1/2 |
| Thread 3 | Rp 1 1/2 |
| Class name | FLEX |
