RIEGLER Plastic silencer, G 1/2, Pore width max. 50 µm
Type number: 566-4
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Plastic silencer for noise protection, max. 6 bar, G 1/2 - Type 566-4
The RIEGLER plastic silencer, G 1/2, pore size max. 50 µm significantly reduces the blow-off noise of pneumatic valves and cylinders. Designed for a maximum operating pressure of 6 bar. The operating temperature is between 5 °C and 80 °C. G 1/2 connection thread - suitable for common industry standards. Significant noise reduction for improved occupational safety.
Field of application
Typical areas of application: Noise reduction on valves and exhaust air openings.
| Max. operating pressure | 6 bar |
| Operating temperature min. | 5 °C |
| Operating temperature max. | 80 °C |
| Thread | G 1/2 |
| A | 11.5 mm |
| B | 70 mm |
| C | 25 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Theme shop | SAFETY |
| Pore size max. | 50 µm |
| Class name | EASY |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[113322] RIEGLER Plastic silencer, G 1/4, Pore width max. 50 µm](/web/image/product.template/186223/image_128/%5B113322%5D%20RIEGLER%20Plastic%20silencer%2C%20G%201-4%2C%20Pore%20width%20max.%2050%20%C2%B5m?unique=57c5270)
|
Type number: 566-2 |
3.75 € | |
![[113321] RIEGLER Plastic silencer, G 1/8, Pore width max. 50 µm](/web/image/product.template/186222/image_128/%5B113321%5D%20RIEGLER%20Plastic%20silencer%2C%20G%201-8%2C%20Pore%20width%20max.%2050%20%C2%B5m?unique=d456836)
|
Type number: 566-1 |
2.84 € | |
![[113325] RIEGLER Plastic silencer, G 1, Pore width max. 50 µm](/web/image/product.template/186226/image_128/%5B113325%5D%20RIEGLER%20Plastic%20silencer%2C%20G%201%2C%20Pore%20width%20max.%2050%20%C2%B5m?unique=c604f6d)
|
Type number: 566-6 |
30.98 € | |
![[113324] RIEGLER Plastic silencer, G 3/4, Pore width max. 50 µm](/web/image/product.template/186225/image_128/%5B113324%5D%20RIEGLER%20Plastic%20silencer%2C%20G%203-4%2C%20Pore%20width%20max.%2050%20%C2%B5m?unique=ec37882)
|
Type number: 566-5 |
22.09 € | |
![[101242] RIEGLER Plastic silencer, G 3/8, Pore width max. 50 µm](/web/image/product.template/140677/image_128/%5B101242%5D%20RIEGLER%20Plastic%20silencer%2C%20G%203-8%2C%20Pore%20width%20max.%2050%20%C2%B5m?unique=e9eac75)
|
Type number: 566-3 |
4.86 € | |

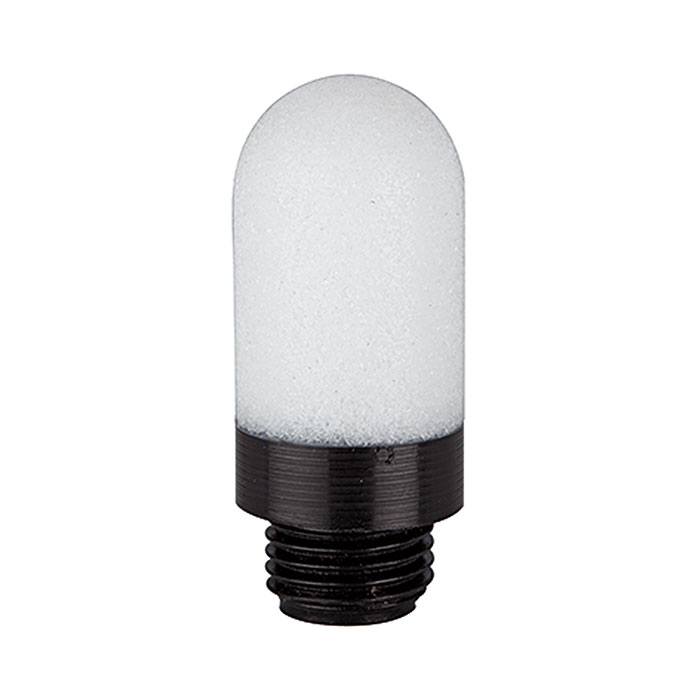

![[113320] RIEGLER Plastic silencer, M5, Pore width max. 35 µm](/web/image/product.template/186221/image_128/%5B113320%5D%20RIEGLER%20Plastic%20silencer%2C%20M5%2C%20Pore%20width%20max.%2035%20%C2%B5m?unique=36d6292)
|
Type number: 566-0 |
3.08 € | |
