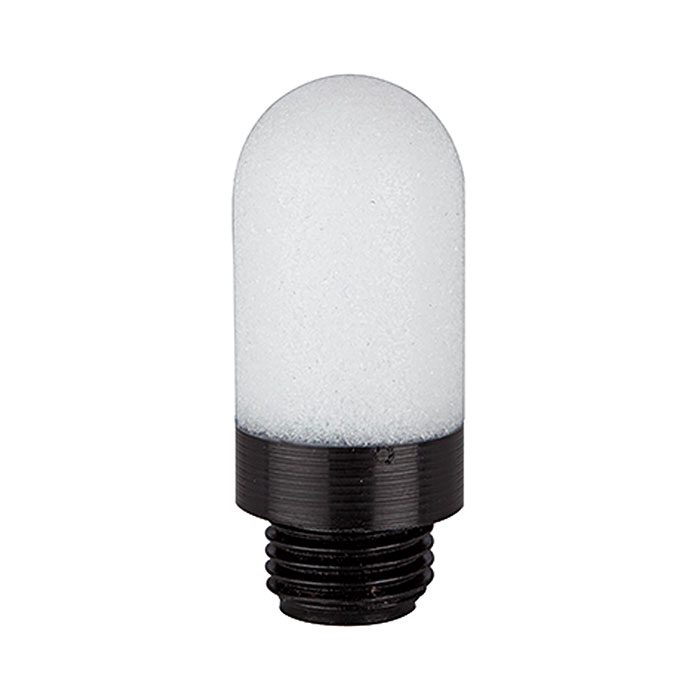

RIEGLER Plastic silencer, G 1, Pore width max. 50 µm
Type number: 566-6
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Plastic silencer for noise protection, max. 6 bar, G 1 - Type 566-6
The RIEGLER plastic silencer, G 1, pore size max. 50 µm significantly reduces the blow-off noise of pneumatic valves and cylinders. Designed for a maximum operating pressure of 6 bar. The operating temperature is between 5 °C and 80 °C. Connection thread G 1 - suitable for common industry standards. Significant noise reduction for improved occupational safety.
Field of application
Typical areas of application: Noise reduction on valves and exhaust air openings.
| Max. operating pressure | 6 bar |
| Operating temperature min. | 5 °C |
| Operating temperature max. | 80 °C |
| Thread | G 1 |
| A | 19.5 mm |
| B | 158 mm |
| C | 48 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Theme shop | SAFETY |
| Pore size max. | 50 µm |
| Class name | EASY |
