RIEGLER Silencer, Stainless steel 1.4401, G 3/8, AF 19
Type number: 562-3 ES
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years

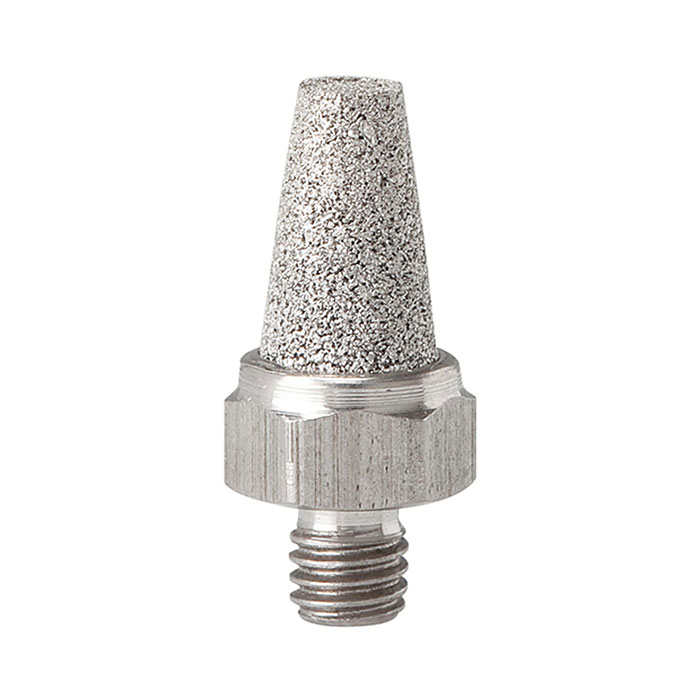

RIEGLER Silencer for noise protection, max. 8 bar, G 3/8 - Type 562-3 ES
The RIEGLER silencer, stainless steel 1.4401, G 3/8, SW 19 significantly reduces the blow-off noise of pneumatic valves and cylinders. Designed for a maximum operating pressure of 8 bar. The operating temperature is between -10 °C and 250 °C. Connection thread G 3/8 (G thread to DIN EN ISO 228-1) - suitable for common industry standards. Significant noise reduction for improved occupational safety.
Field of application
Typical areas of application: Noise reduction on valves and exhaust air openings.
| Max. operating pressure | 8 bar |
| Operating temperature min. | -10 °C |
| Operating temperature max. | 250 °C |
| Thread | G 3/8 |

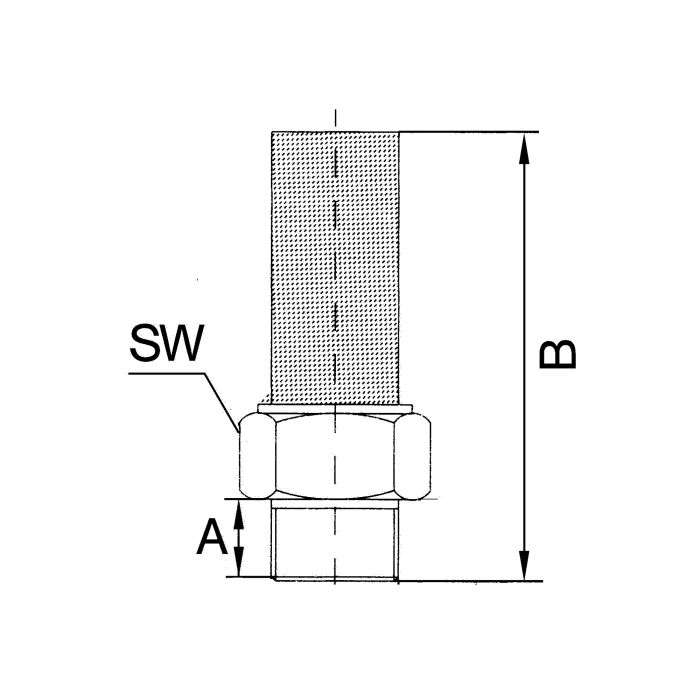

| SW | 19 mm |
| Thread standard | G-thread according to DIN EN ISO 228-1 |
| A | 9 mm |
| B | 39 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | no entry |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Material identification | none |
| Theme shop | SAFETY |
| Class name | STAINLESS STEEL |
