RIEGLER Silencer, Stainless steel 1.4401, G 1/2, AF 23
Type number: 562-4 ES
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Silencer for noise protection, max. 8 bar, G 1/2 - Type 562-4 ES
The RIEGLER silencer, stainless steel 1.4401, G 1/2, SW 23 significantly reduces the blow-off noise of pneumatic valves and cylinders. Designed for a maximum operating pressure of 8 bar. The operating temperature is between -10 °C and 250 °C. Connection thread G 1/2 (G thread to DIN EN ISO 228-1) - suitable for common industry standards. Significant noise reduction for better occupational safety.
Field of application
Typical areas of application: Noise reduction on valves and exhaust air openings.
| Max. operating pressure | 8 bar |
| Operating temperature min. | -10 °C |
| Operating temperature max. | 250 °C |
| Thread | G 1/2 |
| SW | 23 mm |
| Thread standard | G-thread according to DIN EN ISO 228-1 |

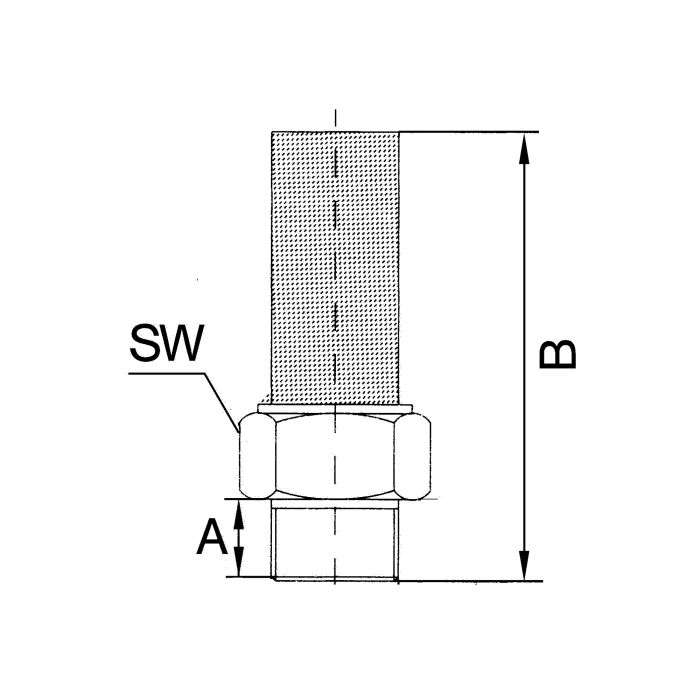

| A | 9.5 mm |
| B | 48 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | no entry |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Material identification | none |
| Theme shop | SAFETY |
| Class name | STAINLESS STEEL |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[113328] RIEGLER Silencer, Stainless steel 1.4401, G 1/4, AF 15](/web/image/product.template/186229/image_128/%5B113328%5D%20RIEGLER%20Silencer%2C%20Stainless%20steel%201.4401%2C%20G%201-4%2C%20AF%2015?unique=3fcf79d)
|
Type number: 562-2 ES |
16.79 € | |
![[113327] RIEGLER Silencer, Stainless steel 1.4401, G 1/8, AF 12](/web/image/product.template/186228/image_128/%5B113327%5D%20RIEGLER%20Silencer%2C%20Stainless%20steel%201.4401%2C%20G%201-8%2C%20AF%2012?unique=06bf052)
|
Type number: 562-1 ES |
13.52 € | |
![[113332] RIEGLER Silencer, Stainless steel 1.4401, G 1, AF 36](/web/image/product.template/186233/image_128/%5B113332%5D%20RIEGLER%20Silencer%2C%20Stainless%20steel%201.4401%2C%20G%201%2C%20AF%2036?unique=60e3725)
|
Type number: 562-6 ES |
49.88 € | |
![[113331] RIEGLER Silencer, Stainless steel 1.4401, G 3/4, AF 30](/web/image/product.template/186232/image_128/%5B113331%5D%20RIEGLER%20Silencer%2C%20Stainless%20steel%201.4401%2C%20G%203-4%2C%20AF%2030?unique=8f406af)
|
Type number: 562-5 ES |
38.90 € | |
![[113329] RIEGLER Silencer, Stainless steel 1.4401, G 3/8, AF 19](/web/image/product.template/186230/image_128/%5B113329%5D%20RIEGLER%20Silencer%2C%20Stainless%20steel%201.4401%2C%20G%203-8%2C%20AF%2019?unique=ecac7fd)
|
Type number: 562-3 ES |
23.24 € | |
![[113326] RIEGLER Silencer, Stainless steel 1.4401, M5, AF 9](/web/image/product.template/186227/image_128/%5B113326%5D%20RIEGLER%20Silencer%2C%20Stainless%20steel%201.4401%2C%20M5%2C%20AF%209?unique=15269b4)
|
Type number: 562-0 ES |
10.32 € | |
