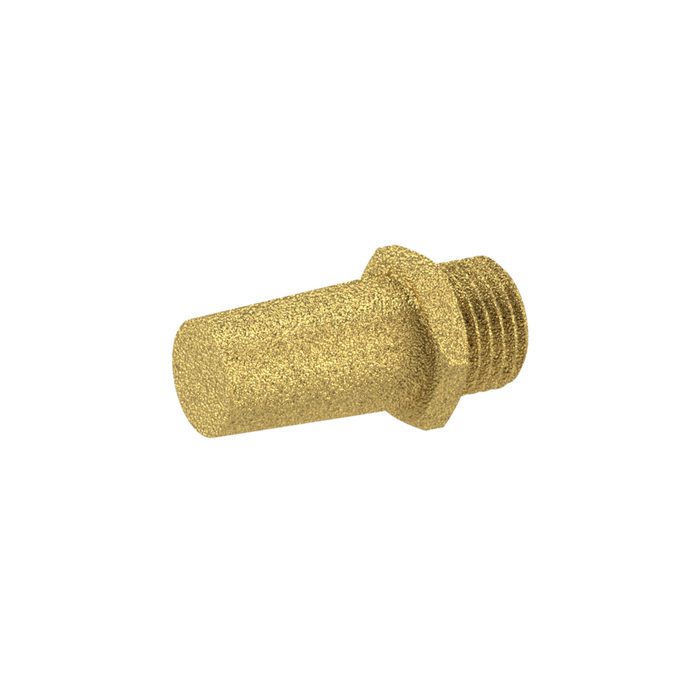

RIEGLER Sintered bronze silencer, Hexagonal, G 1/4, AF 17
Type number: 567-2
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Sintered bronze silencer, hexagonal, G 1/4, SW 17 mm, operating pressure 0 - 8 bar, operating temperature -10 °C to 250 °C
| Operating pressure min. | 0 bar |
| Max. operating pressure | 8 bar |
| Material | Sintered bronze |
| Operating temperature min. | -10 °C |
| Operating temperature max. | 250 °C |
| Noise level at 6 bar | 71 - 108 dB |
| Thread | G 1/4 |
| Flow rate at 6 bar | 1700 l/min |
| SW | 17 mm |
| A | 8 mm |
| B | 34 mm |
| C | 12 mm |
| Execution | with hexagon |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | none |
| Theme shop | SAFETY |
| Pore size max. | 50 µm |
| Class name | PLUS |
