RIEGLER Sintered bronze silencer, Hexagonal, G 1, AF 41
Type number: 567-6
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Sintered bronze silencer for noise protection, max. 8 bar, G 1 - Type 567-6
The RIEGLER sintered bronze silencer, hexagonal, G 1, SW 41 significantly reduces the blow-off noise of pneumatic valves and cylinders. The housing is made of sintered bronze. The operating pressure range is 0 bar to 8 bar. The operating temperature is between -10 °C and 250 °C. G 1 connection thread - suitable for common industry standards. Significant noise reduction for better occupational safety.
Field of application
Typical areas of application: Noise reduction on valves and exhaust air openings.
| Operating pressure min. | 0 bar |
| Max. operating pressure | 8 bar |
| Material | Sintered bronze |
| Operating temperature min. | -10 °C |
| Operating temperature max. | 250 °C |
| Noise level at 6 bar | 71 - 108 dB |
| Thread | G 1 |
| Flow rate at 6 bar | 7300 l/min |
| SW | 41 mm |
| A | 16 mm |
| B | 66 mm |
| C | 28 mm |
| Execution | with hexagon |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | none |
| Theme shop | SAFETY |
| Pore size max. | 50 µm |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[113341] RIEGLER Sintered bronze silencer, Hexagonal, G 1/2, AF 27](/web/image/product.template/186242/image_128/%5B113341%5D%20RIEGLER%20Sintered%20bronze%20silencer%2C%20Hexagonal%2C%20G%201-2%2C%20AF%2027?unique=6574530)
|
Type number: 567-4 |
5.46 € | |
![[113339] RIEGLER Sintered bronze silencer, Hexagonal, G 1/4, AF 17](/web/image/product.template/186240/image_128/%5B113339%5D%20RIEGLER%20Sintered%20bronze%20silencer%2C%20Hexagonal%2C%20G%201-4%2C%20AF%2017?unique=a1e3869)
|
Type number: 567-2 |
2.23 € | |
![[113338] RIEGLER Sintered bronze silencer, Hexagonal, G 1/8, AF 13](/web/image/product.template/186239/image_128/%5B113338%5D%20RIEGLER%20Sintered%20bronze%20silencer%2C%20Hexagonal%2C%20G%201-8%2C%20AF%2013?unique=54e10c6)
|
Type number: 567-1 |
1.80 € | |
![[113342] RIEGLER Sintered bronze silencer, Hexagonal, G 3/4, AF 32](/web/image/product.template/186243/image_128/%5B113342%5D%20RIEGLER%20Sintered%20bronze%20silencer%2C%20Hexagonal%2C%20G%203-4%2C%20AF%2032?unique=d9139ce)
|
Type number: 567-5 |
6.56 € | |

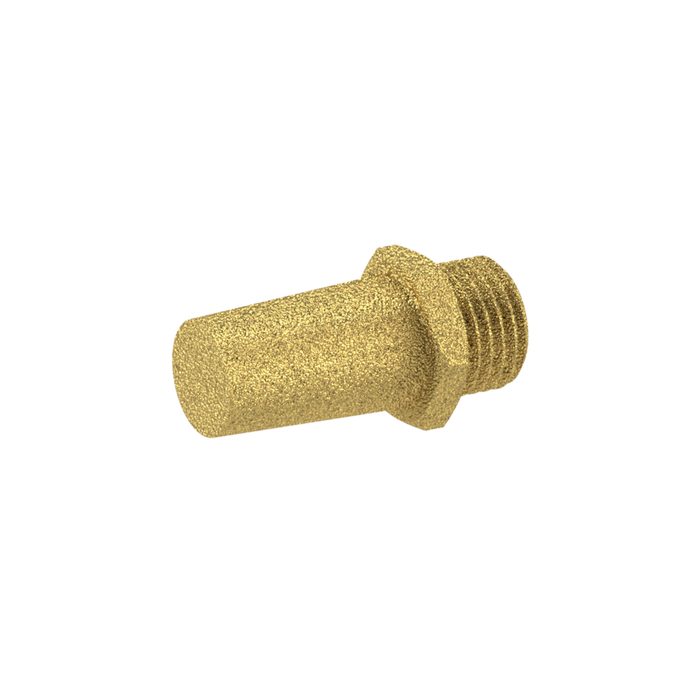

![[113340] RIEGLER Sintered bronze silencer, Hexagonal, G 3/8, AF 22](/web/image/product.template/186241/image_128/%5B113340%5D%20RIEGLER%20Sintered%20bronze%20silencer%2C%20Hexagonal%2C%20G%203-8%2C%20AF%2022?unique=384911c)
|
