RIEGLER Sintered bronze silencer, flat, G 1/8 o.
Type number: 560-1
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Sintered bronze silencer, flat, G 1/8 a., operating pressure max. 10 bar, operating temperature -10 °C to 250 °C
| Max. operating pressure | 10 bar |
| Operating temperature min. | -10 °C |
| Operating temperature max. | 250 °C |
| Thread | G 1/8 |
| Thread standard | G-thread according to DIN EN ISO 228-1 |

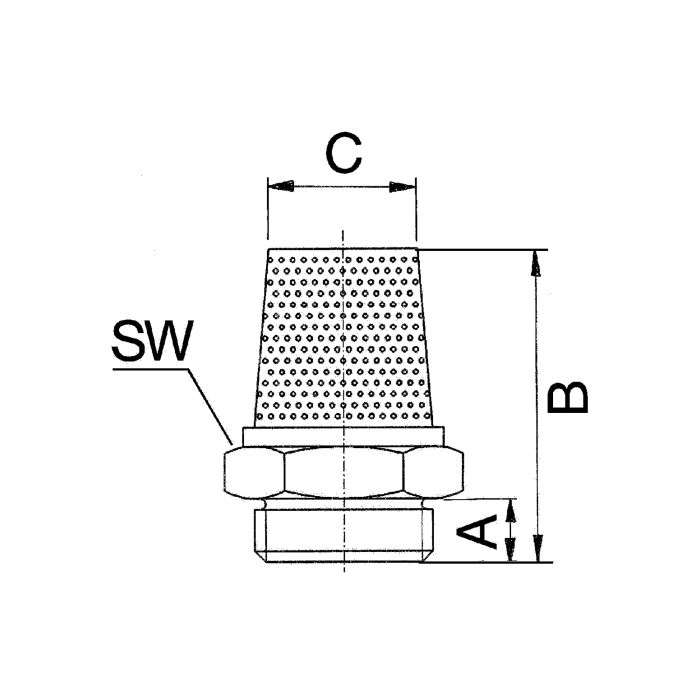

| B | 6 mm |
| C | 6 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | none |
| Theme shop | SAFETY |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[113367] RIEGLER Sintered bronze silencer, flat, G 1/2 o.](/web/image/product.template/186268/image_128/%5B113367%5D%20RIEGLER%20Sintered%20bronze%20silencer%2C%20flat%2C%20G%201-2%20o.?unique=3c901cd)
|
Type number: 560-4 |
2.37 € | |
![[113365] RIEGLER Sintered bronze silencer, flat, G 1/4 o.](/web/image/product.template/186266/image_128/%5B113365%5D%20RIEGLER%20Sintered%20bronze%20silencer%2C%20flat%2C%20G%201-4%20o.?unique=81f76a1)
|
Type number: 560-2 |
0.87 € | |

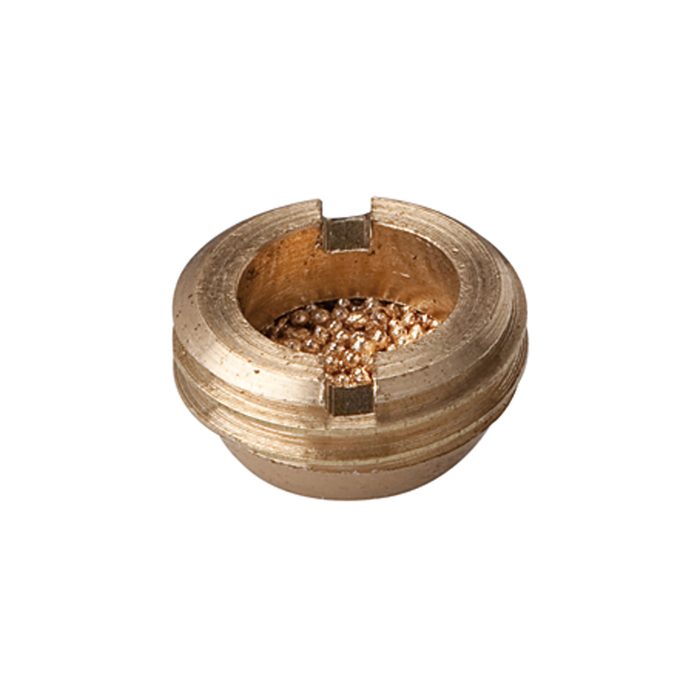

![[113369] RIEGLER Sintered bronze silencer, flat, G 1 o.](/web/image/product.template/186270/image_128/%5B113369%5D%20RIEGLER%20Sintered%20bronze%20silencer%2C%20flat%2C%20G%201%20o.?unique=7599f52)
|
Type number: 560-6 |
6.89 € | |
![[113368] RIEGLER Sintered bronze silencer, flat, G 3/4 o.](/web/image/product.template/186269/image_128/%5B113368%5D%20RIEGLER%20Sintered%20bronze%20silencer%2C%20flat%2C%20G%203-4%20o.?unique=a7db105)
|
Type number: 560-5 |
4.13 € | |
![[113366] RIEGLER Sintered bronze silencer, flat, G 3/8 o.](/web/image/product.template/186267/image_128/%5B113366%5D%20RIEGLER%20Sintered%20bronze%20silencer%2C%20flat%2C%20G%203-8%20o.?unique=44fad9c)
|
Type number: 560-3 |
1.73 € | |
