RIEGLER Sintered bronze silencer, flat, G 1/2 o.
Type number: 560-4
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Sintered bronze silencer for noise protection, max. 10 bar, G 1/2 - Type 560-4
The RIEGLER sintered bronze silencer, flat, G 1/2 a. significantly reduces the blow-off noise of pneumatic valves and cylinders. Designed for a maximum operating pressure of 10 bar. The operating temperature is between -10 °C and 250 °C. G 1/2 connection thread (G thread to DIN EN ISO 228-1) - suitable for common industry standards. Significant noise reduction for better occupational safety.
Field of application
Typical areas of application: Noise reduction on valves and exhaust air openings.
| Max. operating pressure | 10 bar |
| Operating temperature min. | -10 °C |
| Operating temperature max. | 250 °C |
| Thread | G 1/2 |
| Thread standard | G-thread according to DIN EN ISO 228-1 |
| B | 8 mm |
| C | 12 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | none |
| Theme shop | SAFETY |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[113365] RIEGLER Sintered bronze silencer, flat, G 1/4 o.](/web/image/product.template/186266/image_128/%5B113365%5D%20RIEGLER%20Sintered%20bronze%20silencer%2C%20flat%2C%20G%201-4%20o.?unique=80caa9d)
|
Type number: 560-2 |
0.87 € | |
![[113364] RIEGLER Sintered bronze silencer, flat, G 1/8 o.](/web/image/product.template/186265/image_128/%5B113364%5D%20RIEGLER%20Sintered%20bronze%20silencer%2C%20flat%2C%20G%201-8%20o.?unique=80a88f5)
|
Type number: 560-1 |
0.70 € | |
![[113369] RIEGLER Sintered bronze silencer, flat, G 1 o.](/web/image/product.template/186270/image_128/%5B113369%5D%20RIEGLER%20Sintered%20bronze%20silencer%2C%20flat%2C%20G%201%20o.?unique=3860763)
|
Type number: 560-6 |
6.89 € | |

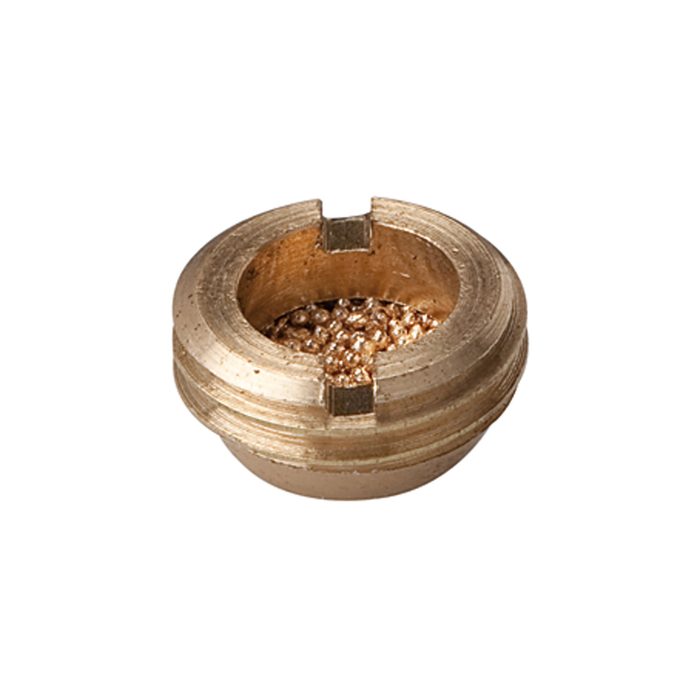

![[113368] RIEGLER Sintered bronze silencer, flat, G 3/4 o.](/web/image/product.template/186269/image_128/%5B113368%5D%20RIEGLER%20Sintered%20bronze%20silencer%2C%20flat%2C%20G%203-4%20o.?unique=61f76f9)
|
