RIEGLER Spiral hose coupling set, PUR, Hose Ø 10x6.5, Length 8.0 m
Type number: SP 246-108
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Spiral safety coupling set made of polyurethane (PUR), for compressed air distribution - type SP 246-108
The RIEGLER spiral hose safety coupling set, PUR, hose ø 10x6.5, 8.0 m conducts compressed air flexibly and reliably from the compressor to the consumer. The housing is made of polyurethane (PUR). Designed for a maximum operating pressure of 10 bar. The permissible medium temperature is between -20 °C and 60 °C. Hose Ø 10x6.5 mm. Flexible, pressure-resistant and suitable for various media.
Field of application
Typical areas of application: Compressed air distribution in workshops and production.
| Max. operating pressure | 10 bar |
| Medium temperature min. | -20 °C |
| Medium temperature max. | 60 °C |
| Ambient temperature min. | -20 °C |
| Ambient temperature max. | 60 °C |
| Material | Polyurethane (PUR) |
| Hose Ø | 10x6.5 mm |
| Working length max. | 8 m |
| Spiral-Ø | 52 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Theme shop | SAFETY |
| Class name | MAX |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[113487] RIEGLER Spiral hose coupling set, PUR, Hose Ø 10x6.5, Length 2.0 m](/web/image/product.template/189268/image_128/%5B113487%5D%20RIEGLER%20Spiral%20hose%20coupling%20set%2C%20PUR%2C%20Hose%20%C3%98%2010x6.5%2C%20Length%202.0%20m?unique=5724727)
|
Type number: SP 246-102 |
50.09 € | |

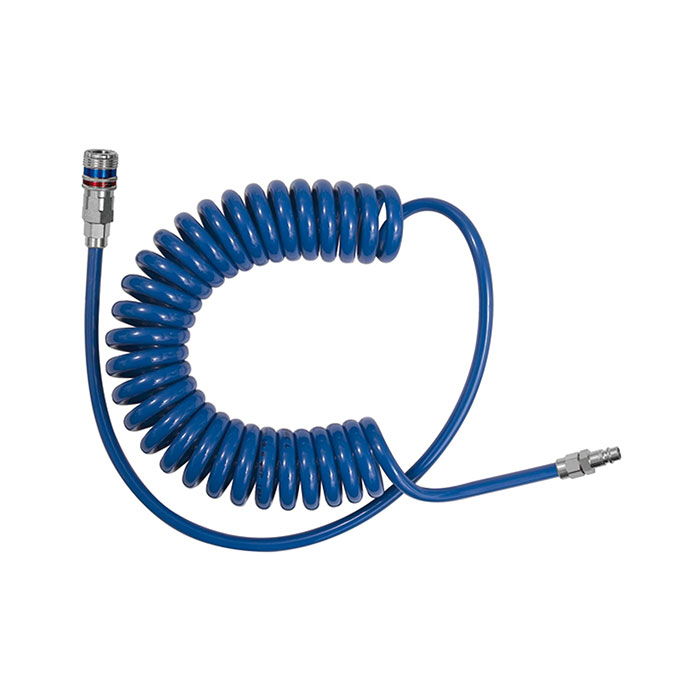

![[113488] RIEGLER Spiral hose coupling set, PUR, Hose Ø 10x6.5, Length 4.0 m](/web/image/product.template/189270/image_128/%5B113488%5D%20RIEGLER%20Spiral%20hose%20coupling%20set%2C%20PUR%2C%20Hose%20%C3%98%2010x6.5%2C%20Length%204.0%20m?unique=ccd4c47)
|
Type number: SP 246-104 |
60.63 € | |
![[113489] RIEGLER Spiral hose coupling set, PUR, Hose Ø 10x6.5, Length 6.0 m](/web/image/product.template/189272/image_128/%5B113489%5D%20RIEGLER%20Spiral%20hose%20coupling%20set%2C%20PUR%2C%20Hose%20%C3%98%2010x6.5%2C%20Length%206.0%20m?unique=d08c062)
|
Type number: SP 246-106 |
70.77 € | |
![[113494] RIEGLER Spiral hose coupling set, PUR, Hose Ø 12x8, Length 8.0 m](/web/image/product.template/189282/image_128/%5B113494%5D%20RIEGLER%20Spiral%20hose%20coupling%20set%2C%20PUR%2C%20Hose%20%C3%98%2012x8%2C%20Length%208.0%20m?unique=ce9a154)
|
Type number: SP 246-128 |
103.20 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[107371] RIEGLER Plug-in connector, I.D. 7.2-7.8, hard./gal. steel, Sleeve I.D. 6](/web/image/product.template/176427/image_128/%5B107371%5D%20RIEGLER%20Plug-in%20connector%2C%20I.D.%207.2-7.8%2C%20hard.-gal.%20steel%2C%20Sleeve%20I.D.%206?unique=675d3e9)
|
Type number: 244.907 |
2.61 € | |
![[107372] RIEGLER Plug-in connector, I.D. 7.2-7.8, hard./gal. steel, Sleeve I.D. 8](/web/image/product.template/176428/image_128/%5B107372%5D%20RIEGLER%20Plug-in%20connector%2C%20I.D.%207.2-7.8%2C%20hard.-gal.%20steel%2C%20Sleeve%20I.D.%208?unique=c983cff)
|
Type number: 244.908 |
3.02 € | |
![[107373] RIEGLER Plug-in connector, I.D. 7.2-7.8, hard./gal. steel, Sleeve I.D. 9](/web/image/product.template/176429/image_128/%5B107373%5D%20RIEGLER%20Plug-in%20connector%2C%20I.D.%207.2-7.8%2C%20hard.-gal.%20steel%2C%20Sleeve%20I.D.%209?unique=f7c26c5)
|
Type number: 244.908-9 |
7.58 € | |
![[107374] RIEGLER Plug-in connector, I.D. 7.2-7.8, hard./gal. steel, Sleeve I.D. 10](/web/image/product.template/176430/image_128/%5B107374%5D%20RIEGLER%20Plug-in%20connector%2C%20I.D.%207.2-7.8%2C%20hard.-gal.%20steel%2C%20Sleeve%20I.D.%2010?unique=38ad8c3)
|
Type number: 244.908-10 |
3.15 € | |
![[107375] RIEGLER Plug-in connector, I.D. 7.2-7.8, hard./gal. steel, Sleeve I.D. 13](/web/image/product.template/176431/image_128/%5B107375%5D%20RIEGLER%20Plug-in%20connector%2C%20I.D.%207.2-7.8%2C%20hard.-gal.%20steel%2C%20Sleeve%20I.D.%2013?unique=f66d8d6)
|
Type number: 244.909 |
3.32 € | |
![[107376] RIEGLER Nipple for I.D. 7.2 - 7.8, hardened / gal. steel, R 1/8 ET, PTFE](/web/image/product.template/176432/image_128/%5B107376%5D%20RIEGLER%20Nipple%20for%20I.D.%207.2%20-%207.8%2C%20hardened%20-%20gal.%20steel%2C%20R%201-8%20ET%2C%20PTFE?unique=bd4b341)
|
Type number: 244.900 |
3.05 € | |
![[107377] RIEGLER Nipple for I.D. 7.2 - 7.8, hardened / gal. steel, R 1/4 ET, PTFE](/web/image/product.template/176433/image_128/%5B107377%5D%20RIEGLER%20Nipple%20for%20I.D.%207.2%20-%207.8%2C%20hardened%20-%20gal.%20steel%2C%20R%201-4%20ET%2C%20PTFE?unique=4a83b8e)
|
Type number: 244.901 |
2.61 € | |
![[107378] RIEGLER Nipple for I.D. 7.2 - 7.8, hardened / gal. steel, R 3/8 ET, PTFE](/web/image/product.template/176434/image_128/%5B107378%5D%20RIEGLER%20Nipple%20for%20I.D.%207.2%20-%207.8%2C%20hardened%20-%20gal.%20steel%2C%20R%203-8%20ET%2C%20PTFE?unique=fcc649c)
|
Type number: 244.902 |
3.32 € | |
![[107379] RIEGLER Nipple for I.D. 7.2 - 7.8, hardened / gal. steel, R 1/2 ET, PTFE](/web/image/product.template/176435/image_128/%5B107379%5D%20RIEGLER%20Nipple%20for%20I.D.%207.2%20-%207.8%2C%20hardened%20-%20gal.%20steel%2C%20R%201-2%20ET%2C%20PTFE?unique=aafb4d5)
|
Type number: 244.903 |
5.77 € | |
![[107380] RIEGLER Nipple for couplings I.D. 7.2 - 7.8, hard. / gal. steel, G 1/8 IT](/web/image/product.template/176436/image_128/%5B107380%5D%20RIEGLER%20Nipple%20for%20couplings%20I.D.%207.2%20-%207.8%2C%20hard.%20-%20gal.%20steel%2C%20G%201-8%20IT?unique=d958c49)
|
Type number: 244.904-1 |
3.95 € | |
![[107381] RIEGLER Nipple for couplings I.D. 7.2 - 7.8, hard. / gal. steel, G 1/4 IT](/web/image/product.template/176437/image_128/%5B107381%5D%20RIEGLER%20Nipple%20for%20couplings%20I.D.%207.2%20-%207.8%2C%20hard.%20-%20gal.%20steel%2C%20G%201-4%20IT?unique=0288fa6)
|
Type number: 244.904 |
2.73 € | |
![[107382] RIEGLER Nipple for couplings I.D. 7.2 - 7.8, hard. / gal. steel, G 3/8 IT](/web/image/product.template/176438/image_128/%5B107382%5D%20RIEGLER%20Nipple%20for%20couplings%20I.D.%207.2%20-%207.8%2C%20hard.%20-%20gal.%20steel%2C%20G%203-8%20IT?unique=4ed200e)
|
Type number: 244.905 |
3.22 € | |
![[107383] RIEGLER Nipple for couplings I.D. 7.2 - 7.8, hard. / gal. steel, G 1/2 IT](/web/image/product.template/176439/image_128/%5B107383%5D%20RIEGLER%20Nipple%20for%20couplings%20I.D.%207.2%20-%207.8%2C%20hard.%20-%20gal.%20steel%2C%20G%201-2%20IT?unique=986212b)
|
Type number: 244.906 |
5.58 € | |
![[107384] RIEGLER Nipple for coupl. I.D. 7.2 - 7.8, »stream line«, hard./gal. steel](/web/image/product.template/176440/image_128/%5B107384%5D%20RIEGLER%20Nipple%20for%20coupl.%20I.D.%207.2%20-%207.8%2C%20%C2%BBstream%20line%C2%AB%2C%20hard.-gal.%20steel?unique=fca0c77)
|
Type number: 244.914 |
7.10 € | |
![[107385] RIEGLER Nipple for coupl. I.D. 7.2 - 7.8, »stream line«, hard./gal. steel](/web/image/product.template/176441/image_128/%5B107385%5D%20RIEGLER%20Nipple%20for%20coupl.%20I.D.%207.2%20-%207.8%2C%20%C2%BBstream%20line%C2%AB%2C%20hard.-gal.%20steel?unique=92faf0a)
|
Type number: 244.915 |
7.82 € | |
![[107386] RIEGLER Nipple for coupl. I.D. 7.2 - 7.8, »stream line«, hard./gal. steel](/web/image/product.template/176442/image_128/%5B107386%5D%20RIEGLER%20Nipple%20for%20coupl.%20I.D.%207.2%20-%207.8%2C%20%C2%BBstream%20line%C2%AB%2C%20hard.-gal.%20steel?unique=964a3d8)
|
Type number: 244.916 |
12.32 € | |
![[107387] RIEGLER Nipple for coupl. I.D. 7.2 - 7.8, »stream line«, hard./gal. steel](/web/image/product.template/176443/image_128/%5B107387%5D%20RIEGLER%20Nipple%20for%20coupl.%20I.D.%207.2%20-%207.8%2C%20%C2%BBstream%20line%C2%AB%2C%20hard.-gal.%20steel?unique=70fe094)
|
Type number: 244.917 |
13.91 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|
![[107600] RIEGLER Safety coupling I.D. 7.6, »stream line«, for hose 10x6.5](/web/image/product.template/191501/image_128/%5B107600%5D%20RIEGLER%20Safety%20coupling%20I.D.%207.6%2C%20%C2%BBstream%20line%C2%AB%2C%20for%20hose%2010x6.5?unique=e37af2b)
|
Type number: 416.06-SL |
33.51 € | |
