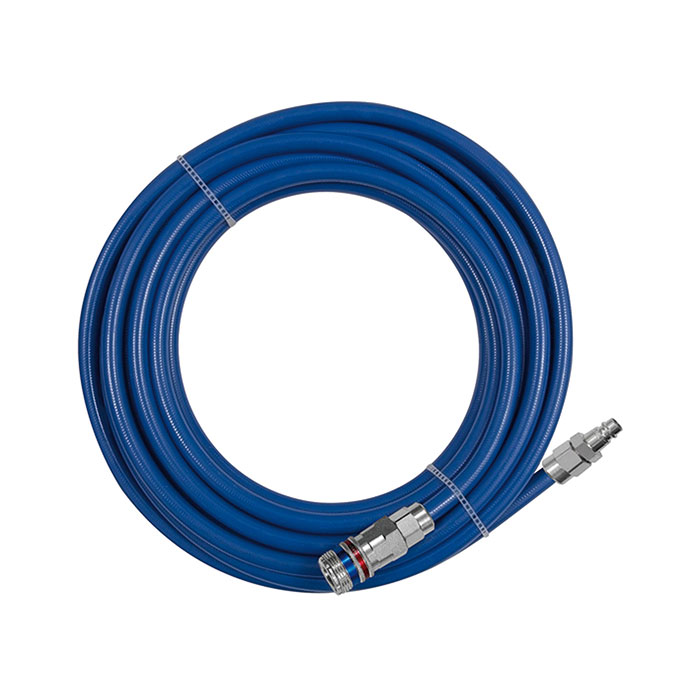

RIEGLER Hose coupling set, PUR, Hose Ø 12x8, Length 10.0 m
Type number: SKS 248.1210
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Hose coupling set, PUR, safety coupling, max. medium/ambient temp. 60 °C, hose ø 12x8, PN max. 16 bar, length 10.0 m
| Max. operating pressure | 16 bar |
| Medium temperature min. | -20 °C |
| Medium temperature max. | 60 °C |
| Ambient temperature min. | -20 °C |
| Ambient temperature max. | 60 °C |
| Material | Polyurethane (PUR) |
| Hose Ø | 12x8 mm |
| Working length max. | 10 m |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Class name | MAX |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[113500] RIEGLER Hose coupling set, PUR, Hose Ø 12x8, Length 15.0 m](/web/image/product.template/189294/image_128/%5B113500%5D%20RIEGLER%20Hose%20coupling%20set%2C%20PUR%2C%20Hose%20%C3%98%2012x8%2C%20Length%2015.0%20m?unique=b8ef1c9)
|
Type number: SKS 248.1215 |
163.28 € | |
![[113501] RIEGLER Hose coupling set, PUR, Hose Ø 16x11, Length 10.0 m](/web/image/product.template/189296/image_128/%5B113501%5D%20RIEGLER%20Hose%20coupling%20set%2C%20PUR%2C%20Hose%20%C3%98%2016x11%2C%20Length%2010.0%20m?unique=685f00e)
|
Type number: SKS 248.1610 |
204.91 € | |
![[113502] RIEGLER Hose coupling set, PUR, Hose Ø 16x11, Length 15.0 m](/web/image/product.template/189298/image_128/%5B113502%5D%20RIEGLER%20Hose%20coupling%20set%2C%20PUR%2C%20Hose%20%C3%98%2016x11%2C%20Length%2015.0%20m?unique=d953ba3)
|
Type number: SKS 248.1615 |
263.85 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[107371] RIEGLER Plug-in connector, I.D. 7.2-7.8, hard./gal. steel, Sleeve I.D. 6](/web/image/product.template/176427/image_128/%5B107371%5D%20RIEGLER%20Plug-in%20connector%2C%20I.D.%207.2-7.8%2C%20hard.-gal.%20steel%2C%20Sleeve%20I.D.%206?unique=1445465)
|
Type number: 244.907 |
2.61 € | |
![[107372] RIEGLER Plug-in connector, I.D. 7.2-7.8, hard./gal. steel, Sleeve I.D. 8](/web/image/product.template/176428/image_128/%5B107372%5D%20RIEGLER%20Plug-in%20connector%2C%20I.D.%207.2-7.8%2C%20hard.-gal.%20steel%2C%20Sleeve%20I.D.%208?unique=b6a62d1)
|
Type number: 244.908 |
3.02 € | |
![[107373] RIEGLER Plug-in connector, I.D. 7.2-7.8, hard./gal. steel, Sleeve I.D. 9](/web/image/product.template/176429/image_128/%5B107373%5D%20RIEGLER%20Plug-in%20connector%2C%20I.D.%207.2-7.8%2C%20hard.-gal.%20steel%2C%20Sleeve%20I.D.%209?unique=3589bd5)
|
Type number: 244.908-9 |
7.46 € | |
![[107374] RIEGLER Plug-in connector, I.D. 7.2-7.8, hard./gal. steel, Sleeve I.D. 10](/web/image/product.template/176430/image_128/%5B107374%5D%20RIEGLER%20Plug-in%20connector%2C%20I.D.%207.2-7.8%2C%20hard.-gal.%20steel%2C%20Sleeve%20I.D.%2010?unique=f740a90)
|
Type number: 244.908-10 |
3.09 € | |
![[107375] RIEGLER Plug-in connector, I.D. 7.2-7.8, hard./gal. steel, Sleeve I.D. 13](/web/image/product.template/176431/image_128/%5B107375%5D%20RIEGLER%20Plug-in%20connector%2C%20I.D.%207.2-7.8%2C%20hard.-gal.%20steel%2C%20Sleeve%20I.D.%2013?unique=8ce2d8d)
|
Type number: 244.909 |
3.27 € | |
![[107376] RIEGLER Nipple for I.D. 7.2 - 7.8, hardened / gal. steel, R 1/8 ET, PTFE](/web/image/product.template/176432/image_128/%5B107376%5D%20RIEGLER%20Nipple%20for%20I.D.%207.2%20-%207.8%2C%20hardened%20-%20gal.%20steel%2C%20R%201-8%20ET%2C%20PTFE?unique=3096916)
|
Type number: 244.900 |
3.00 € | |
![[107377] RIEGLER Nipple for I.D. 7.2 - 7.8, hardened / gal. steel, R 1/4 ET, PTFE](/web/image/product.template/176433/image_128/%5B107377%5D%20RIEGLER%20Nipple%20for%20I.D.%207.2%20-%207.8%2C%20hardened%20-%20gal.%20steel%2C%20R%201-4%20ET%2C%20PTFE?unique=4cdedbb)
|
Type number: 244.901 |
2.61 € | |
![[107378] RIEGLER Nipple for I.D. 7.2 - 7.8, hardened / gal. steel, R 3/8 ET, PTFE](/web/image/product.template/176434/image_128/%5B107378%5D%20RIEGLER%20Nipple%20for%20I.D.%207.2%20-%207.8%2C%20hardened%20-%20gal.%20steel%2C%20R%203-8%20ET%2C%20PTFE?unique=64b52e8)
|
Type number: 244.902 |
3.27 € | |

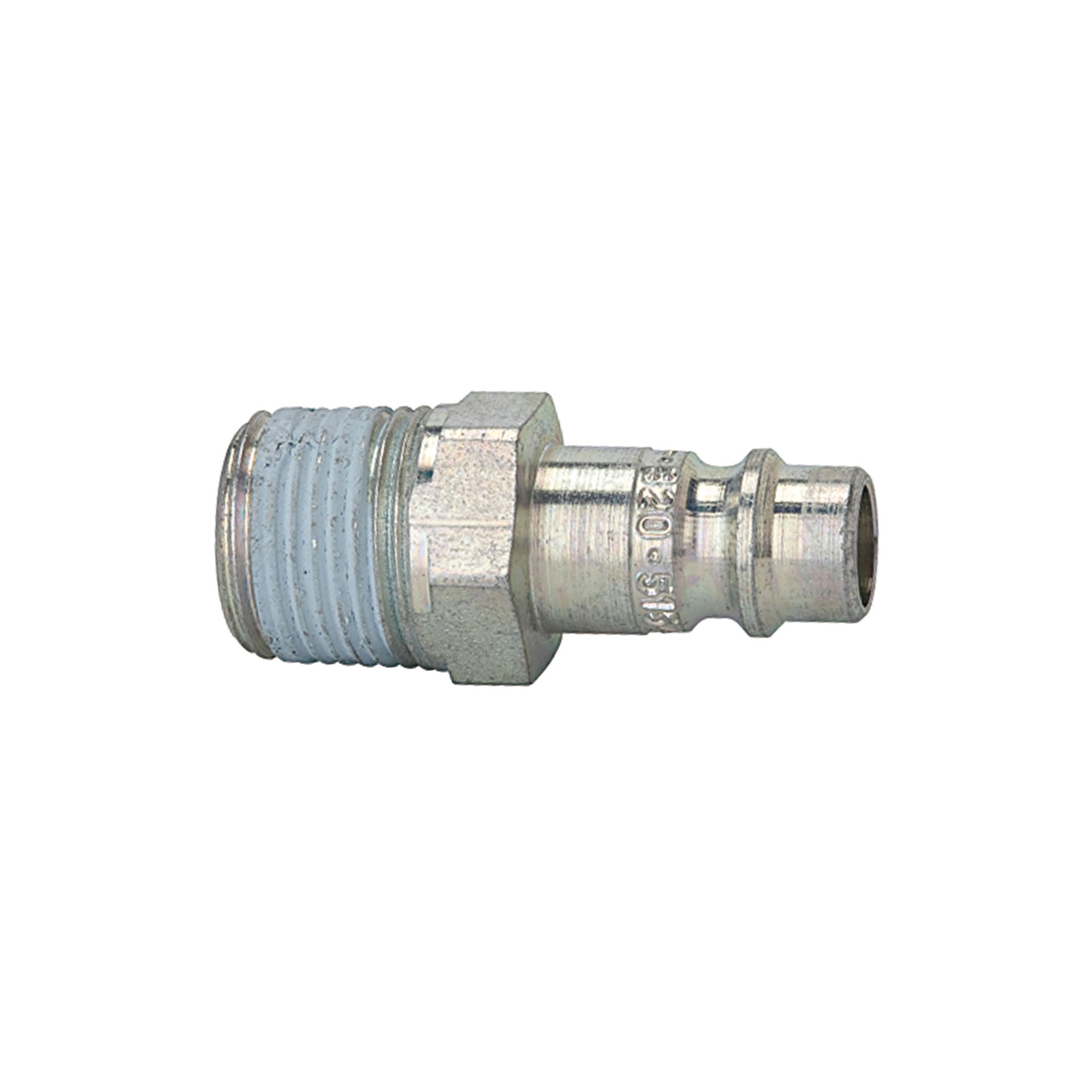

![[107379] RIEGLER Nipple for I.D. 7.2 - 7.8, hardened / gal. steel, R 1/2 ET, PTFE](/web/image/product.template/176435/image_128/%5B107379%5D%20RIEGLER%20Nipple%20for%20I.D.%207.2%20-%207.8%2C%20hardened%20-%20gal.%20steel%2C%20R%201-2%20ET%2C%20PTFE?unique=42989ac)
|
Type number: 244.903 |
5.77 € | |

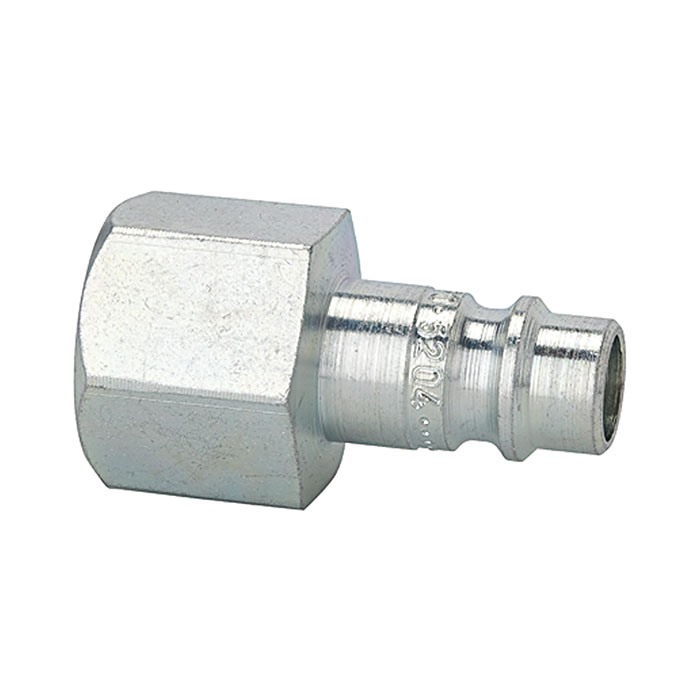

![[107380] RIEGLER Nipple for couplings I.D. 7.2 - 7.8, hard. / gal. steel, G 1/8 IT](/web/image/product.template/176436/image_128/%5B107380%5D%20RIEGLER%20Nipple%20for%20couplings%20I.D.%207.2%20-%207.8%2C%20hard.%20-%20gal.%20steel%2C%20G%201-8%20IT?unique=d5507b8)
|
Type number: 244.904-1 |
3.89 € | |
![[107381] RIEGLER Nipple for couplings I.D. 7.2 - 7.8, hard. / gal. steel, G 1/4 IT](/web/image/product.template/176437/image_128/%5B107381%5D%20RIEGLER%20Nipple%20for%20couplings%20I.D.%207.2%20-%207.8%2C%20hard.%20-%20gal.%20steel%2C%20G%201-4%20IT?unique=989d91c)
|
Type number: 244.904 |
2.69 € | |
![[107382] RIEGLER Nipple for couplings I.D. 7.2 - 7.8, hard. / gal. steel, G 3/8 IT](/web/image/product.template/176438/image_128/%5B107382%5D%20RIEGLER%20Nipple%20for%20couplings%20I.D.%207.2%20-%207.8%2C%20hard.%20-%20gal.%20steel%2C%20G%203-8%20IT?unique=3b710bd)
|
Type number: 244.905 |
3.22 € | |
![[107383] RIEGLER Nipple for couplings I.D. 7.2 - 7.8, hard. / gal. steel, G 1/2 IT](/web/image/product.template/176439/image_128/%5B107383%5D%20RIEGLER%20Nipple%20for%20couplings%20I.D.%207.2%20-%207.8%2C%20hard.%20-%20gal.%20steel%2C%20G%201-2%20IT?unique=5b1e044)
|
Type number: 244.906 |
5.49 € | |
![[107384] RIEGLER Nipple for coupl. I.D. 7.2 - 7.8, »stream line«, hard./gal. steel](/web/image/product.template/176440/image_128/%5B107384%5D%20RIEGLER%20Nipple%20for%20coupl.%20I.D.%207.2%20-%207.8%2C%20%C2%BBstream%20line%C2%AB%2C%20hard.-gal.%20steel?unique=2069d0b)
|
Type number: 244.914 |
6.99 € | |

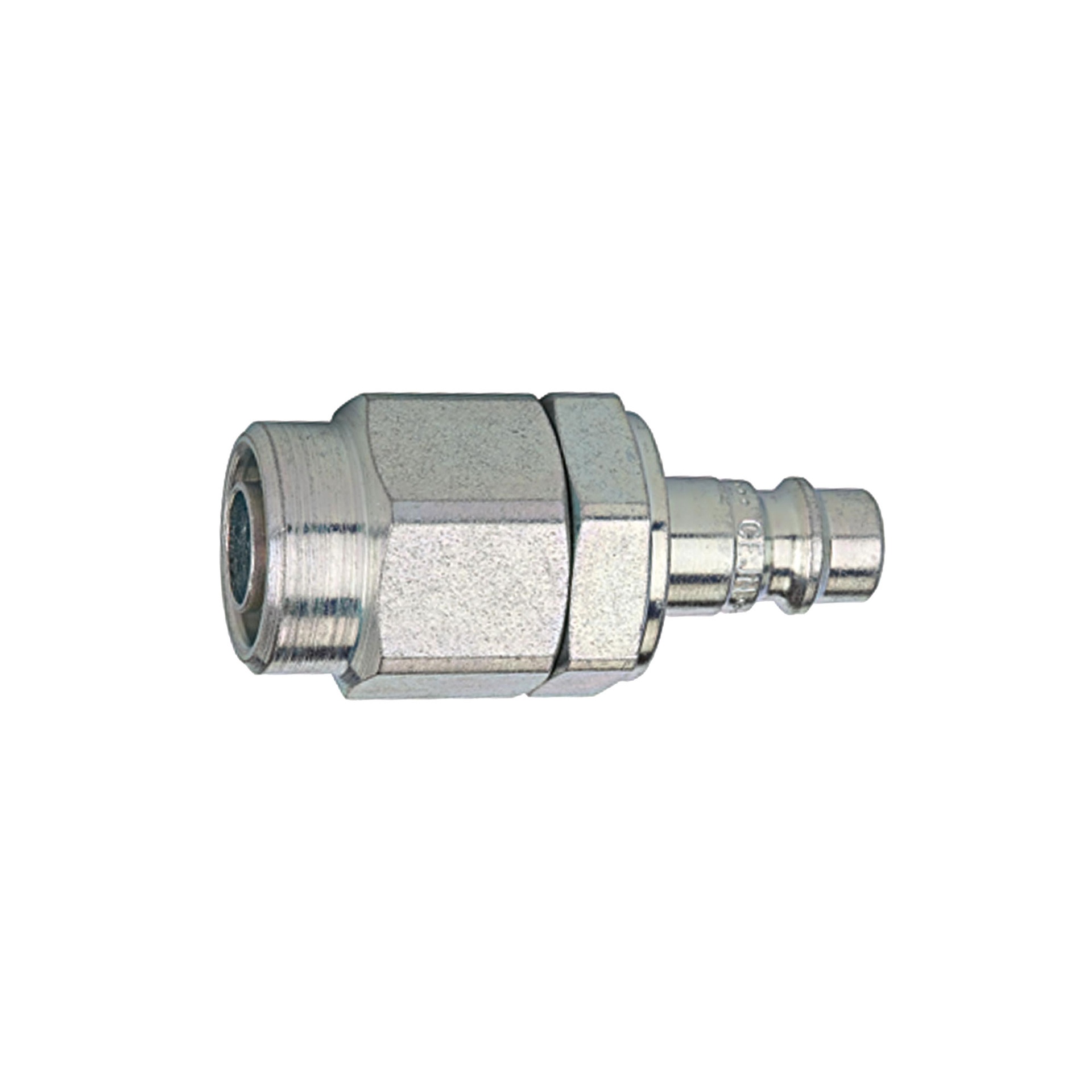

![[107385] RIEGLER Nipple for coupl. I.D. 7.2 - 7.8, »stream line«, hard./gal. steel](/web/image/product.template/176441/image_128/%5B107385%5D%20RIEGLER%20Nipple%20for%20coupl.%20I.D.%207.2%20-%207.8%2C%20%C2%BBstream%20line%C2%AB%2C%20hard.-gal.%20steel?unique=57a12d3)
|
Type number: 244.915 |
7.82 € | |
![[107386] RIEGLER Nipple for coupl. I.D. 7.2 - 7.8, »stream line«, hard./gal. steel](/web/image/product.template/176442/image_128/%5B107386%5D%20RIEGLER%20Nipple%20for%20coupl.%20I.D.%207.2%20-%207.8%2C%20%C2%BBstream%20line%C2%AB%2C%20hard.-gal.%20steel?unique=463ee67)
|
Type number: 244.916 |
12.11 € | |
![[107387] RIEGLER Nipple for coupl. I.D. 7.2 - 7.8, »stream line«, hard./gal. steel](/web/image/product.template/176443/image_128/%5B107387%5D%20RIEGLER%20Nipple%20for%20coupl.%20I.D.%207.2%20-%207.8%2C%20%C2%BBstream%20line%C2%AB%2C%20hard.-gal.%20steel?unique=e283984)
|
Type number: 244.917 |
13.91 € | |
![[142182] RIEGLER Vibration damper with 300 mm PVC hose, plug I.D. 7.2 - I.D. 7.8](/web/image/product.template/210700/image_128/%5B142182%5D%20RIEGLER%20Vibration%20damper%20with%20300%20mm%20PVC%20hose%2C%20plug%20I.D.%207.2%20-%20I.D.%207.8?unique=bb27cea)
|
Type number: VD-300-7,2-1/4 |
14.41 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|

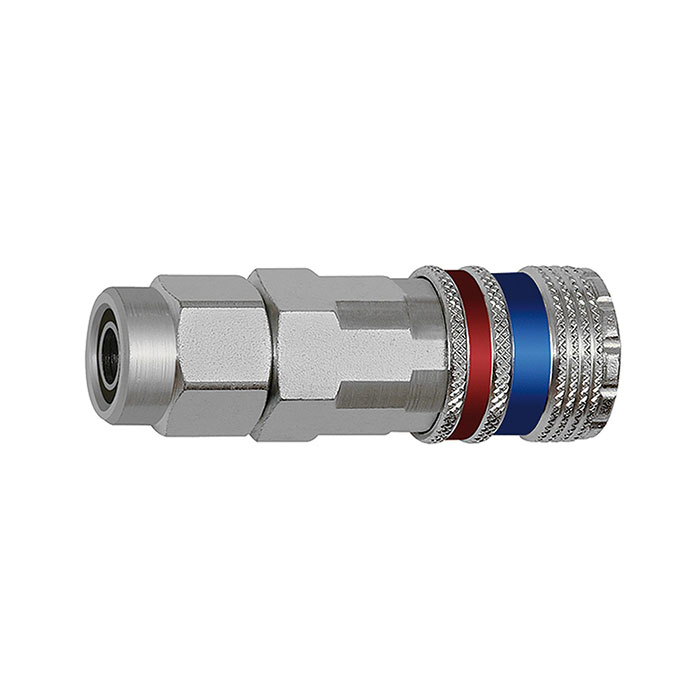

![[107601] RIEGLER Safety coupling I.D. 7.6, »stream line«, for hose 12x8](/web/image/product.template/191502/image_128/%5B107601%5D%20RIEGLER%20Safety%20coupling%20I.D.%207.6%2C%20%C2%BBstream%20line%C2%AB%2C%20for%20hose%2012x8?unique=fbbb662)
|
Type number: 416.08-SL |
33.51 € | |
