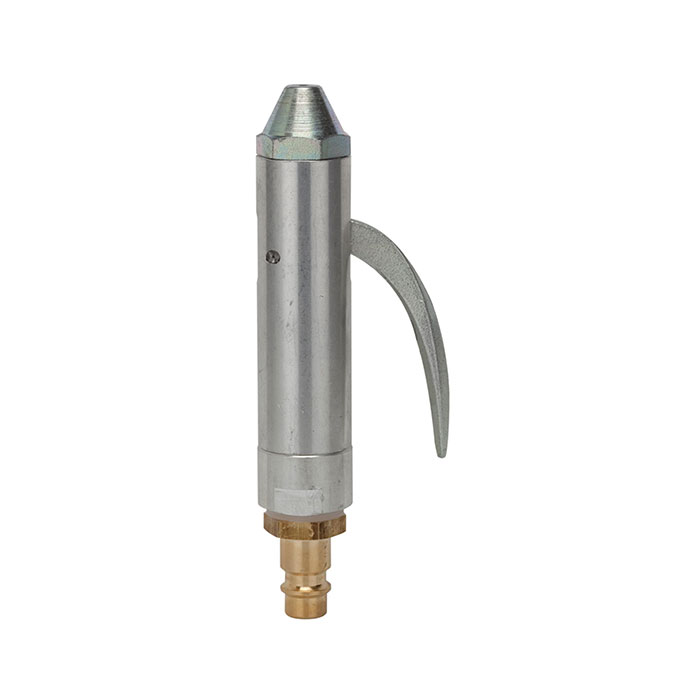

RIEGLER Bleeder valve, Standard nozzle straight design, I.D. 7.2
Type number: 21 K
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Blow-off valve for compressed air cleaning, max. 12 bar - Type 21 K
The RIEGLER blow-off valve, aluminum, standard nozzle straight design, nipple NW 7.2 is a powerful compressed air blow gun for the targeted cleaning of workpieces, machines and workplaces. Designed for a maximum operating pressure of 12 bar. The temperature range extends between -20 °C and 100 °C. Reduces cleaning time and keeps workplaces clean.
Field of application
Typical areas of application: Workshop, production and industrial cleaning.
| Temperature range min. | -20 °C |
| Temperature range max. | 100 °C |
| Max. operating pressure | 12 bar |
| Nozzle | G 3/8 |
| Connection type | Connection nipple for couplings NW 7.2 |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | none |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

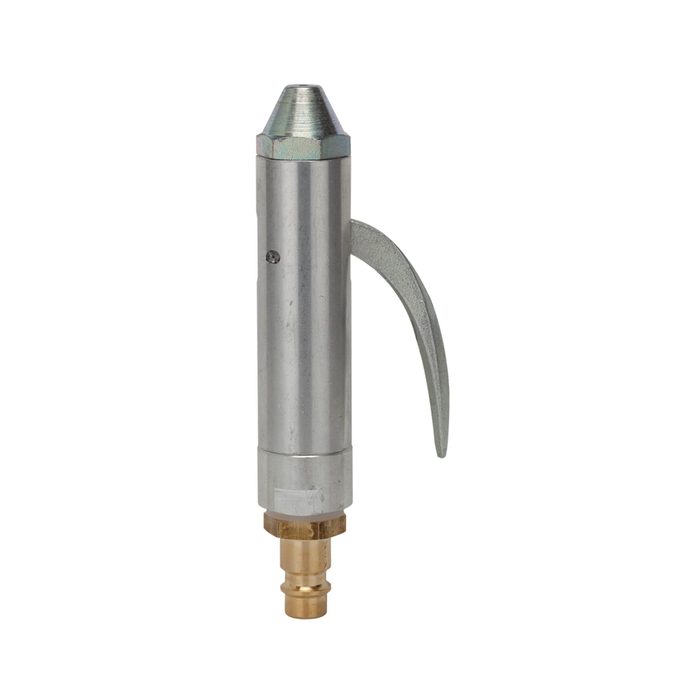

![[114428] RIEGLER Bleeder valve, Standard nozzle, straight design, G 1/4 IT](/web/image/product.template/191011/image_128/%5B114428%5D%20RIEGLER%20Bleeder%20valve%2C%20Standard%20nozzle%2C%20straight%20design%2C%20G%201-4%20IT?unique=aed50b9)
|
