RIEGLER Bleeder valve, Standard nozzle, straight design, G 1/4 IT
Type number: 21-0
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Blow-off valve, aluminum, with standard nozzle, straight design, temperature range -20 °C to 100 °C, PN max. 12 bar, G 1/4 IG
| Temperature range min. | -20 °C |
| Temperature range max. | 100 °C |
| Max. operating pressure | 12 bar |
| Nozzle | G 3/8 |
| Connection type | G 1/4 FEMALE THREAD |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | no entry |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Material identification | none |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

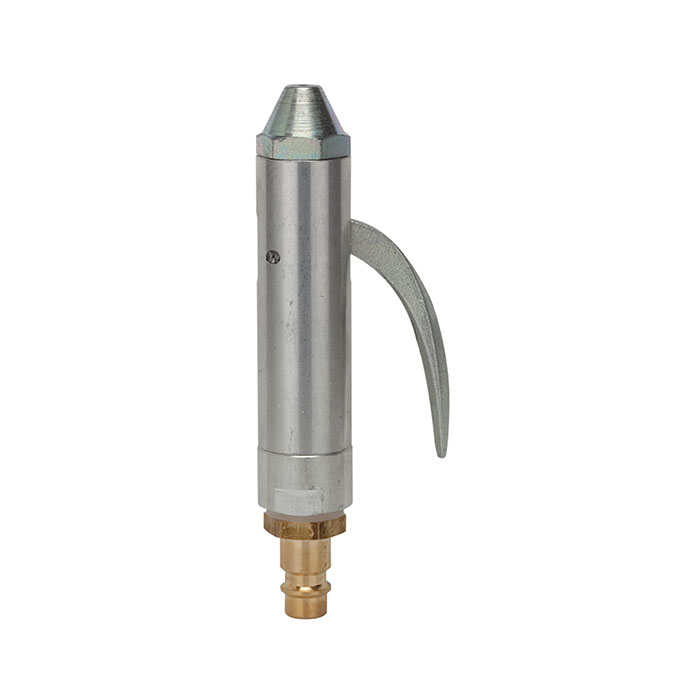

![[114427] RIEGLER Bleeder valve, Standard nozzle straight design, I.D. 7.2](/web/image/product.template/191009/image_128/%5B114427%5D%20RIEGLER%20Bleeder%20valve%2C%20Standard%20nozzle%20straight%20design%2C%20I.D.%207.2?unique=d3568ed)
|
Type number: 21 K |
12.77 € | |
![[114426] RIEGLER Bleeder valve, Standard nozzle, straight design, Sleeve I.D. 13](/web/image/product.template/191007/image_128/%5B114426%5D%20RIEGLER%20Bleeder%20valve%2C%20Standard%20nozzle%2C%20straight%20design%2C%20Sleeve%20I.D.%2013?unique=3e07262)
|
Type number: 21 C |
12.77 € | |
![[114424] RIEGLER Bleeder valve, Standard nozzle, straight design, Sleeve I.D. 6](/web/image/product.template/191003/image_128/%5B114424%5D%20RIEGLER%20Bleeder%20valve%2C%20Standard%20nozzle%2C%20straight%20design%2C%20Sleeve%20I.D.%206?unique=af81182)
|
Type number: 21 A |
12.77 € | |

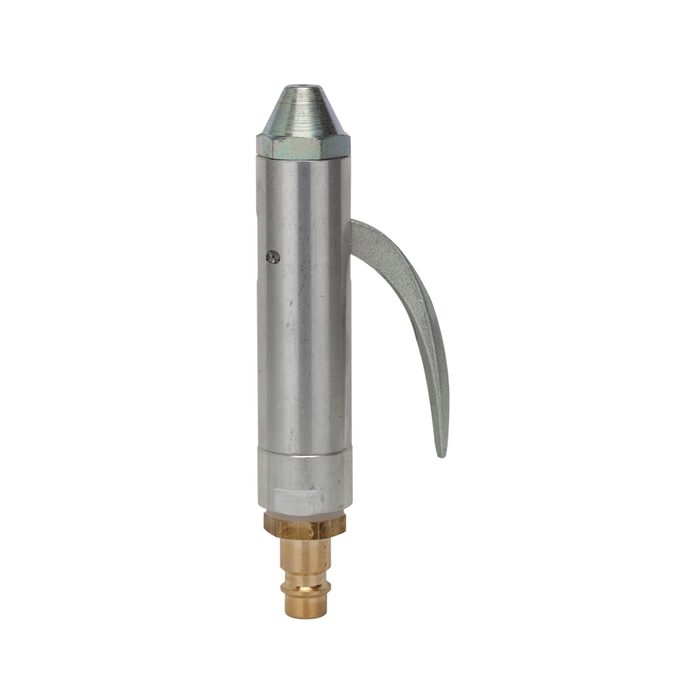

![[114425] RIEGLER Bleeder valve, Standard nozzle, straight design, Sleeve I.D. 9](/web/image/product.template/191005/image_128/%5B114425%5D%20RIEGLER%20Bleeder%20valve%2C%20Standard%20nozzle%2C%20straight%20design%2C%20Sleeve%20I.D.%209?unique=704b72d)
|
Type number: 21 B |
12.77 € | |
