RIEGLER Throttle check valve »ASC«, in block shape, Aluminium, G 3/8
Type number: 225.45
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Product no. :
115508EAN :
4047322323147Category :
Unidirectional Flow Control ValvesWeight :
0.14 kgRIEGLER Throttle check valve "ASC" made of aluminum, for pneumatic control, max. 9.5 bar - Type 225.45
The RIEGLER throttle check valve "ASC", in block form, aluminum, G 3/8 controls the speed of pneumatic actuators or blocks backflow. The housing is made of aluminum with NBR seals. The operating pressure range is 0.5 bar to 9.5 bar. The operating temperature is between -20 °C and 70 °C. G 3/8 connection thread - suitable for common industry standards. Infinitely variable speed control for smooth movement sequences.
Field of application
Typical areas of application: Speed control of pneumatic cylinders.
| Housing | Aluminum |
| Sealing material | NBR |
| Operating pressure min. | 0.5 bar |
| Max. operating pressure | 9.5 bar |
| Interior parts | |
| Operating temperature min. | -20 °C |
| Operating temperature max. | 70 °C |
| Thread | G 3/8 |

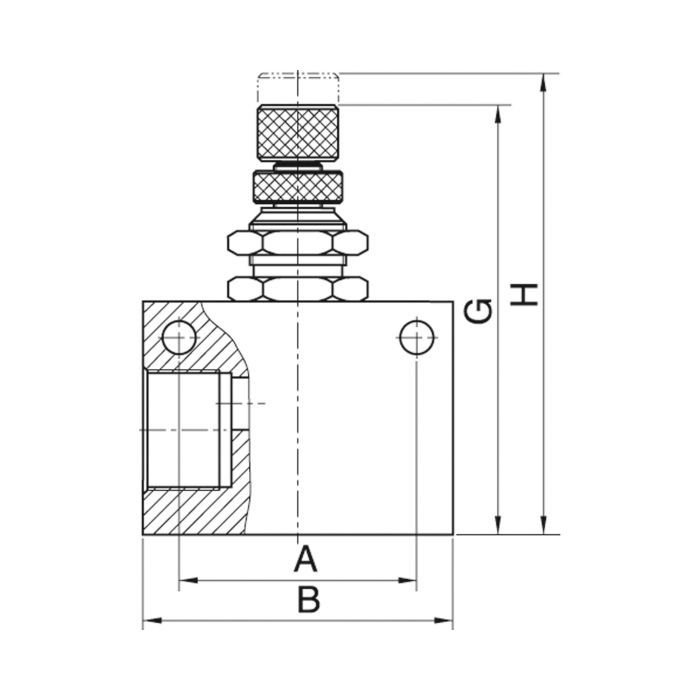

| A | 35 mm |
| B | 50 mm |
| G | 65 mm |
| H | 74 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Class name | EASY |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

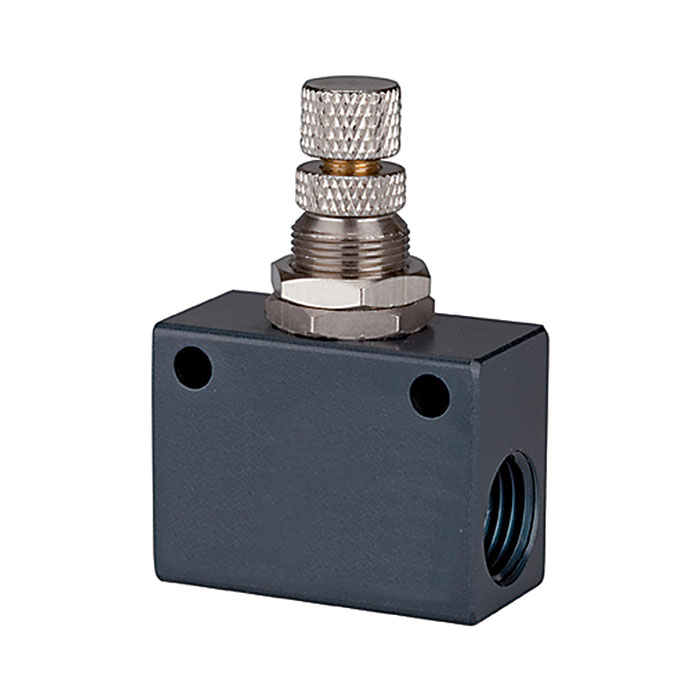

![[115509] RIEGLER Throttle check valve »ASC«, in block shape, Aluminium, G 1/2](/web/image/product.template/200268/image_128/%5B115509%5D%20RIEGLER%20Throttle%20check%20valve%20%C2%BBASC%C2%AB%2C%20in%20block%20shape%2C%20Aluminium%2C%20G%201-2?unique=d48fed2)
|
