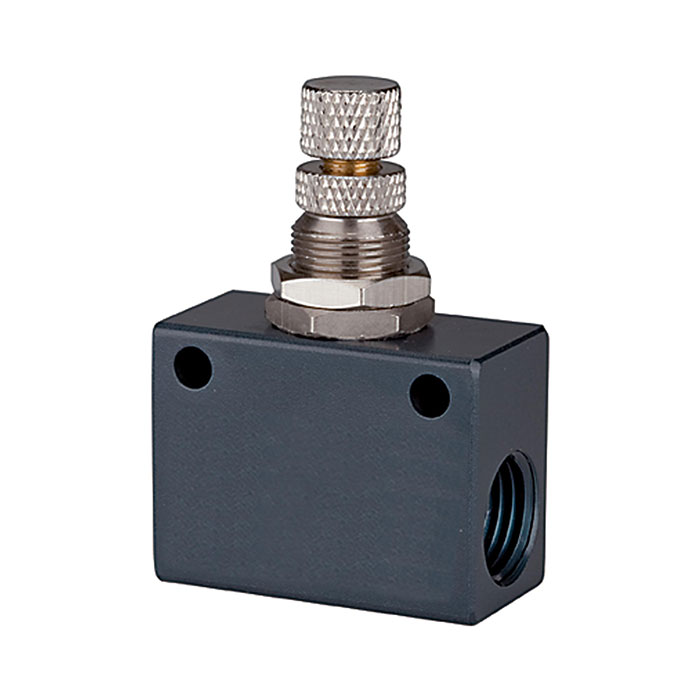

RIEGLER Throttle check valve »ASC«, in block shape, Aluminium, G 1/2
Type number: 225.46
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Product no. :
115509EAN :
4047322323154Category :
Unidirectional Flow Control ValvesWeight :
0.13 kgThrottle check valve "ASC", in block form, aluminum, operating temperature -20 °C to 70 °C, G 1/2, PN 0.5 - 9.5 bar
| Housing | Aluminum |
| Sealing material | NBR |
| Operating pressure min. | 0.5 bar |
| Max. operating pressure | 9.5 bar |
| Interior parts | |
| Operating temperature min. | -20 °C |
| Operating temperature max. | 70 °C |
| Thread | G 1/2 |

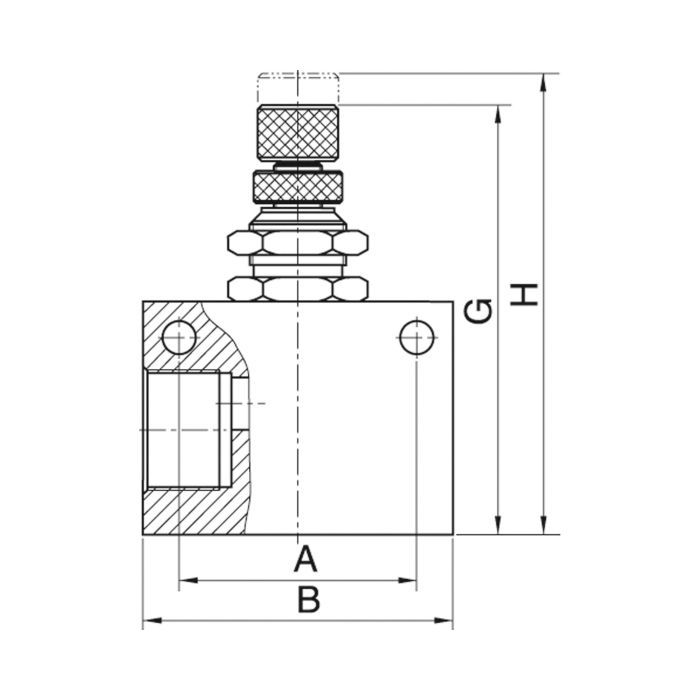

| A | 35 mm |
| B | 50 mm |
| G | 65 mm |
| H | 74 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Class name | EASY |
