RIEGLER Bulkhead fitting »value line«, M28x1.5 o., G 1/2 i.
Type number: 232.04-N-E
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Bulkhead fitting »value line«, M28x1.5 o., G 1/2 i., Operating pressure max 60 bar, Operating temp. max 150°C, nickel-plated brass
| Max. operating pressure | 60 bar |
| Operating temperature max. | 150 °C |
| SW 1 | 32 mm |
| SW 2 | 36 mm |
| L1 | 33 mm |
| L2 | 27 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| Internal thread | G 1/2 |
| External thread | M28x1.5 |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW617 |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[115518] RIEGLER Bulkhead fitting »value line«, M16x1.5 o., G 1/8 i.](/web/image/product.template/200277/image_128/%5B115518%5D%20RIEGLER%20Bulkhead%20fitting%20%C2%BBvalue%20line%C2%AB%2C%20M16x1.5%20o.%2C%20G%201-8%20i.?unique=2152f0c)
|
Type number: 232.01-N-E |
1.24 € | |

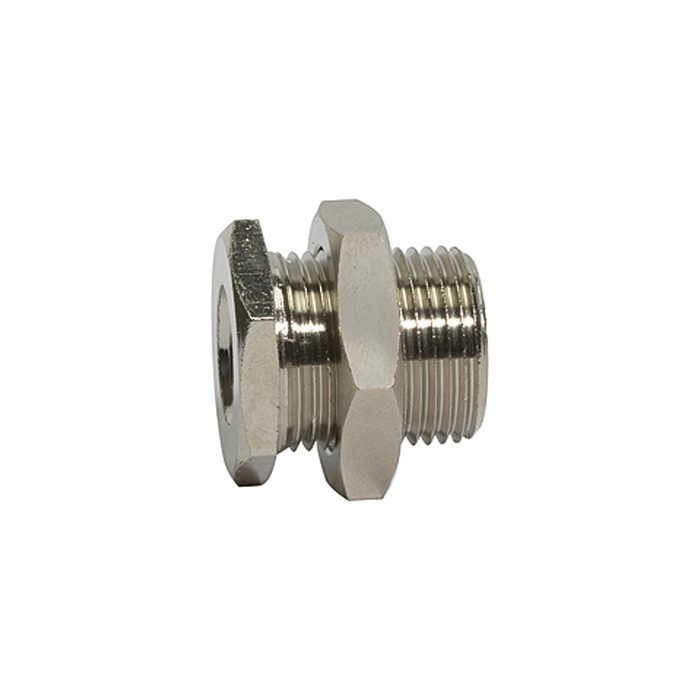

![[115519] RIEGLER Bulkhead fitting »value line«, M20x1.5 o., G 1/4 i.](/web/image/product.template/200278/image_128/%5B115519%5D%20RIEGLER%20Bulkhead%20fitting%20%C2%BBvalue%20line%C2%AB%2C%20M20x1.5%20o.%2C%20G%201-4%20i.?unique=edebbbf)
|
Type number: 232.02-N-E |
2.39 € | |
![[115520] RIEGLER Bulkhead fitting »value line«, M26x1.5 o., G 3/8 i.](/web/image/product.template/200279/image_128/%5B115520%5D%20RIEGLER%20Bulkhead%20fitting%20%C2%BBvalue%20line%C2%AB%2C%20M26x1.5%20o.%2C%20G%203-8%20i.?unique=760aa43)
|
Type number: 232.03-N-E |
3.81 € | |
