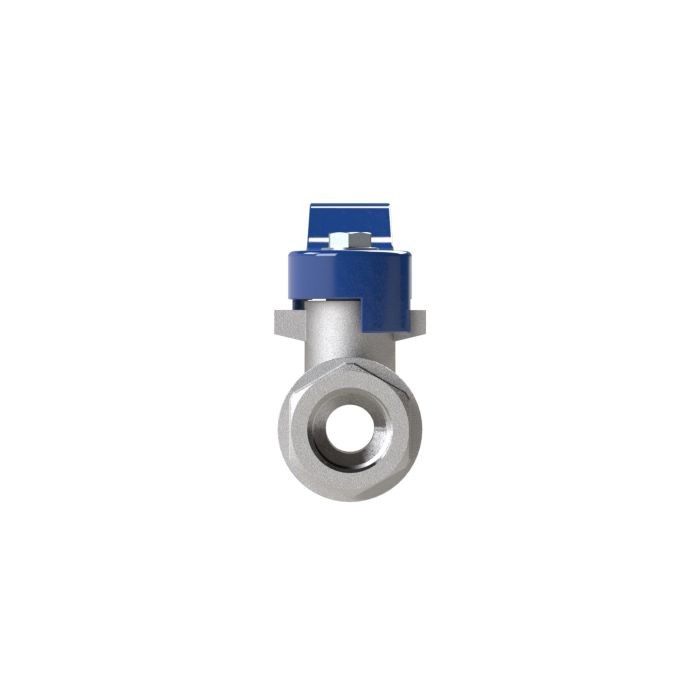

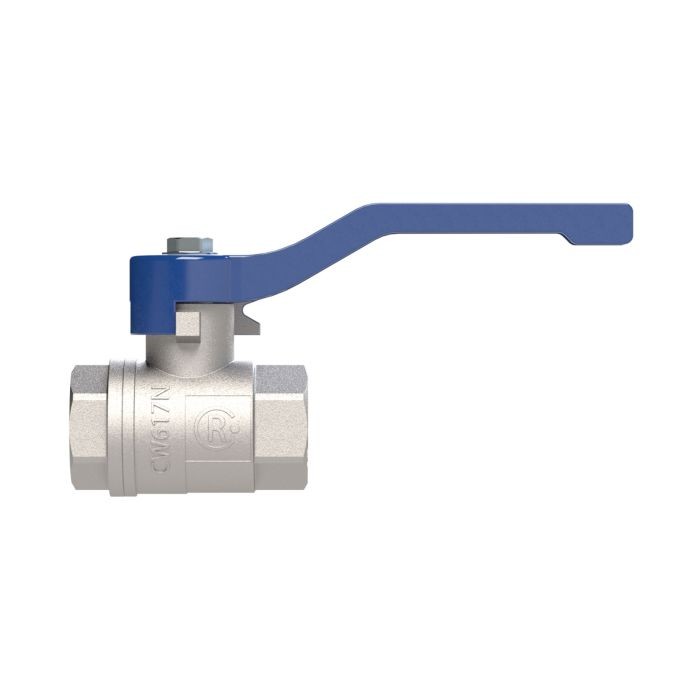

RIEGLER Ball valve »valve line«, Hand lever blue, IT/IT, G 1/4
Type number: 334.02-E
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Ball valve "valve line" made of nickel-plated brass, for industrial systems, max. 25 bar - Type 334.02-E
The RIEGLER ball valve "valve line", hand lever blue, MS nickel-plated, IG/IG, G 1/4 opens or shuts off the media flow with a quarter turn - full flow with minimal pressure loss. The housing is made of nickel-plated brass. Designed for a maximum operating pressure of 25 bar. The operating temperature is between -20 °C and 120 °C. G 1/4 connection thread (G thread to DIN EN ISO 288-1) - suitable for common industry standards. Simple operation with minimal pressure loss.
Field of application
Typical areas of application: Compressed air, water, gas and industrial pipes.
| Housing | Nickel-plated brass |
| Max. operating pressure | 25 bar |
| Ball | Nickel-plated brass |
| Ball seal | PTFE |
| Spindle seal | NBR |
| Hand lever | Steel Q235-A (1.0038) with blue PVC coating |
| Operating temperature min. | -20 °C |
| Operating temperature max. | 120 °C |
| Thread | G 1/4 |
| DN | 8 |
| Thread standard | G-thread according to DIN EN ISO 288-1 |

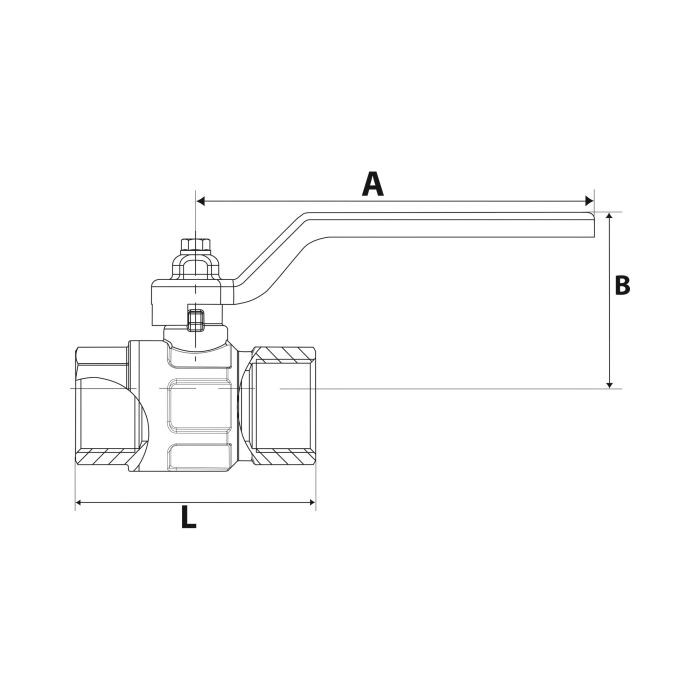

| A | 75 mm |
| B | 38 mm |
| L | 40 mm |
| C Ø | 8 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW617N |
| Thread material | Nickel-plated brass |
| Class name | EASY |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[115715] RIEGLER Ball valve »valve line«, Hand lever blue, IT/IT, G 1](/web/image/product.template/200450/image_128/%5B115715%5D%20RIEGLER%20Ball%20valve%20%C2%BBvalve%20line%C2%AB%2C%20Hand%20lever%20blue%2C%20IT-IT%2C%20G%201?unique=d3efb48)
|
Type number: 334.06-E |
8.29 € | |
![[115717] RIEGLER Ball valve »valve line«, Hand lever blue, IT/IT, G 1 1/2](/web/image/product.template/200452/image_128/%5B115717%5D%20RIEGLER%20Ball%20valve%20%C2%BBvalve%20line%C2%AB%2C%20Hand%20lever%20blue%2C%20IT-IT%2C%20G%201%201-2?unique=f8be88d)
|
Type number: 334.08-E |
18.53 € | |

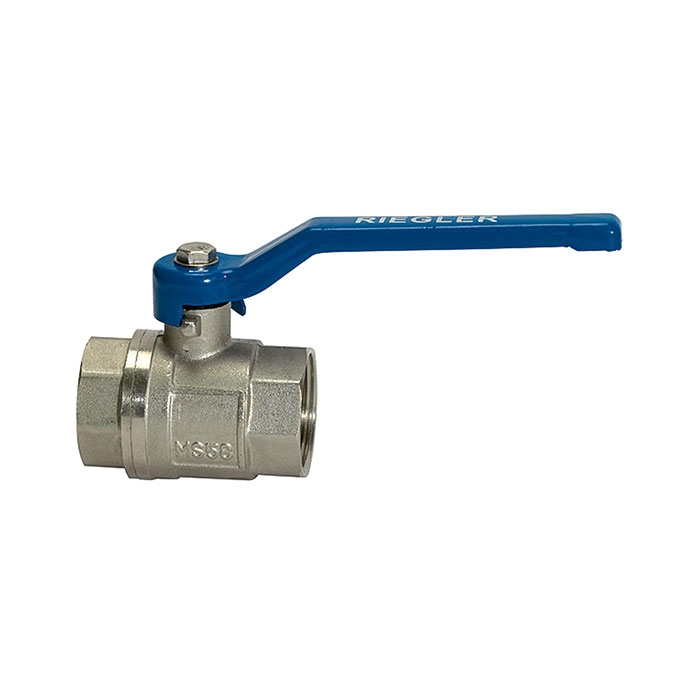

![[115716] RIEGLER Ball valve »valve line«, Hand lever blue, IT/IT, G 1 1/4](/web/image/product.template/200451/image_128/%5B115716%5D%20RIEGLER%20Ball%20valve%20%C2%BBvalve%20line%C2%AB%2C%20Hand%20lever%20blue%2C%20IT-IT%2C%20G%201%201-4?unique=268e1dd)
|
Type number: 334.07-E |
13.20 € | |
![[115713] RIEGLER Ball valve »valve line«, Hand lever blue, IT/IT, G 1/2](/web/image/product.template/200448/image_128/%5B115713%5D%20RIEGLER%20Ball%20valve%20%C2%BBvalve%20line%C2%AB%2C%20Hand%20lever%20blue%2C%20IT-IT%2C%20G%201-2?unique=0a6ec83)
|
Type number: 334.04-E |
3.67 € | |

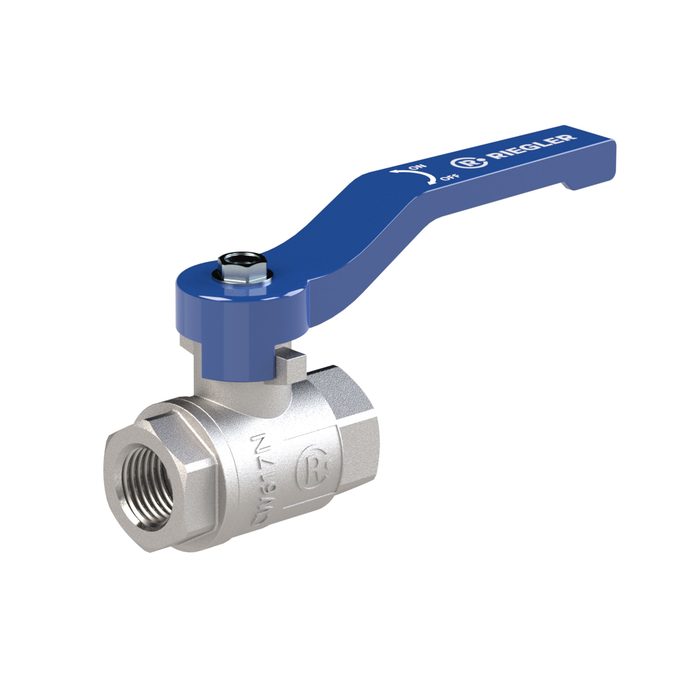

![[115718] RIEGLER Ball valve »valve line«, Hand lever blue, IT/IT, G 2](/web/image/product.template/200453/image_128/%5B115718%5D%20RIEGLER%20Ball%20valve%20%C2%BBvalve%20line%C2%AB%2C%20Hand%20lever%20blue%2C%20IT-IT%2C%20G%202?unique=61fb0bd)
|
