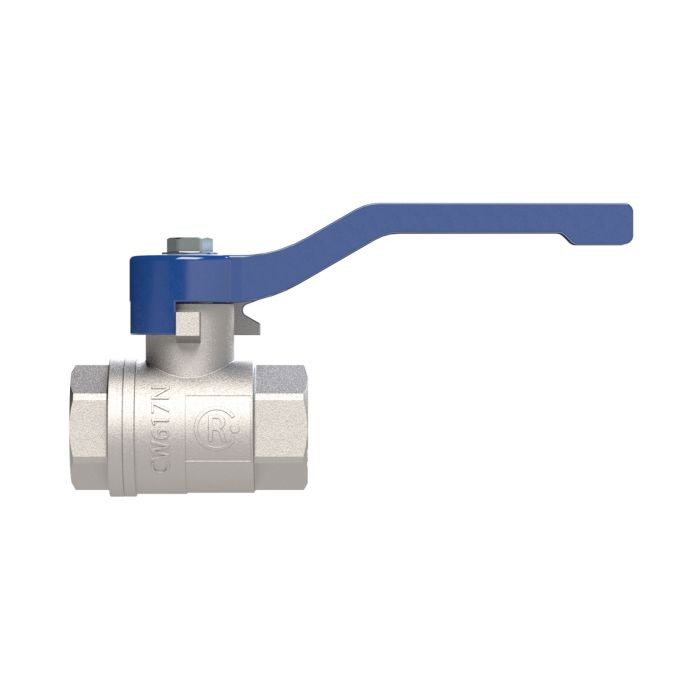

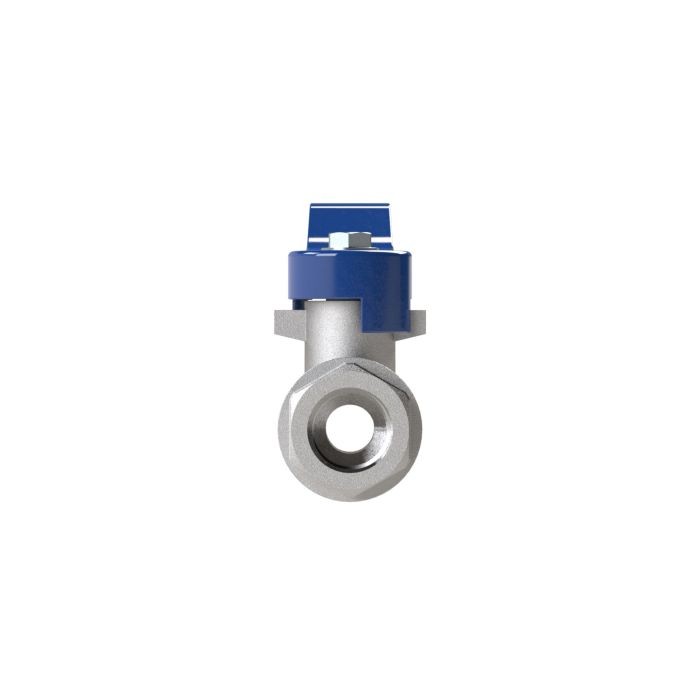

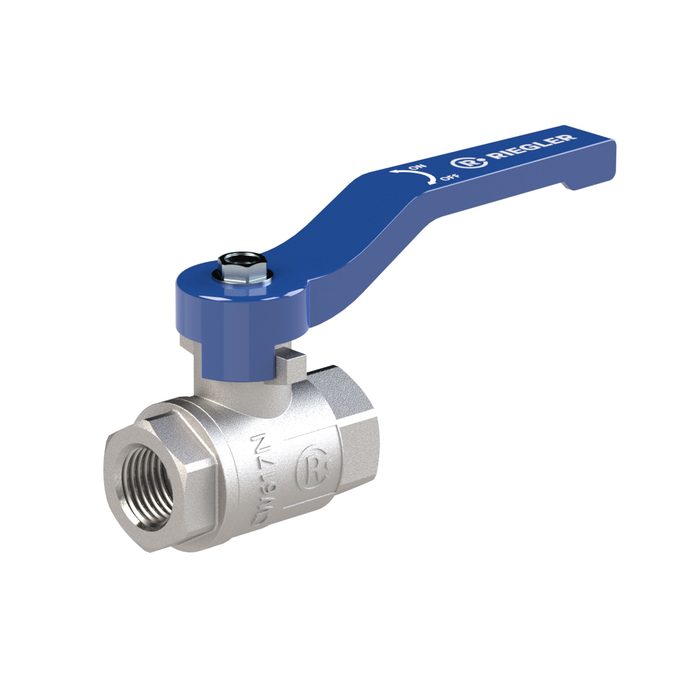

RIEGLER Ball valve »valve line«, Hand lever blue, IT/IT, G 2
Type number: 334.09-E
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Ball valve »valve line« Hand lever blue, Nickel-plated brass, IT/IT, G 2, DN 50, Operating temp. -20 °C to 120 °C, PN max 25 bar
| Housing | Nickel-plated brass |
| Max. operating pressure | 25 bar |
| Ball | Nickel-plated brass |
| Ball seal | PTFE |
| Spindle seal | NBR |
| Hand lever | Steel Q235-A (1.0038) with blue PVC coating |
| Operating temperature min. | -20 °C |
| Operating temperature max. | 120 °C |
| Thread | G 2 |
| DN | 50 |
| Thread standard | G-thread according to DIN EN ISO 288-1 |

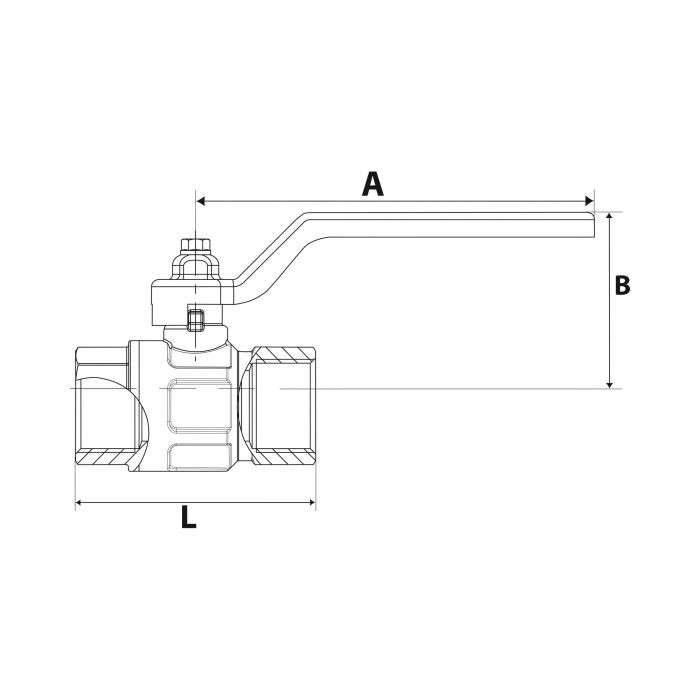

| A | 160 mm |
| B | 79 mm |
| L | 99 mm |
| C Ø | 45 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW617N |
| Thread material | Nickel-plated brass |
| Class name | EASY |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[115715] RIEGLER Ball valve »valve line«, Hand lever blue, IT/IT, G 1](/web/image/product.template/200450/image_128/%5B115715%5D%20RIEGLER%20Ball%20valve%20%C2%BBvalve%20line%C2%AB%2C%20Hand%20lever%20blue%2C%20IT-IT%2C%20G%201?unique=0375607)
|
Type number: 334.06-E |
8.40 € | |
![[115717] RIEGLER Ball valve »valve line«, Hand lever blue, IT/IT, G 1 1/2](/web/image/product.template/200452/image_128/%5B115717%5D%20RIEGLER%20Ball%20valve%20%C2%BBvalve%20line%C2%AB%2C%20Hand%20lever%20blue%2C%20IT-IT%2C%20G%201%201-2?unique=6804e25)
|
Type number: 334.08-E |
18.77 € | |
![[115716] RIEGLER Ball valve »valve line«, Hand lever blue, IT/IT, G 1 1/4](/web/image/product.template/200451/image_128/%5B115716%5D%20RIEGLER%20Ball%20valve%20%C2%BBvalve%20line%C2%AB%2C%20Hand%20lever%20blue%2C%20IT-IT%2C%20G%201%201-4?unique=6a55519)
|
Type number: 334.07-E |
13.36 € | |

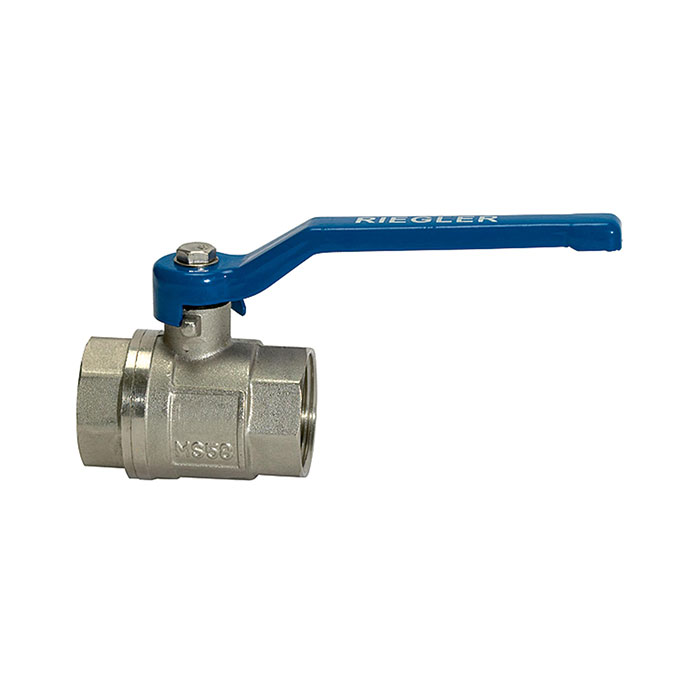

![[115713] RIEGLER Ball valve »valve line«, Hand lever blue, IT/IT, G 1/2](/web/image/product.template/200448/image_128/%5B115713%5D%20RIEGLER%20Ball%20valve%20%C2%BBvalve%20line%C2%AB%2C%20Hand%20lever%20blue%2C%20IT-IT%2C%20G%201-2?unique=84bcf5e)
|
