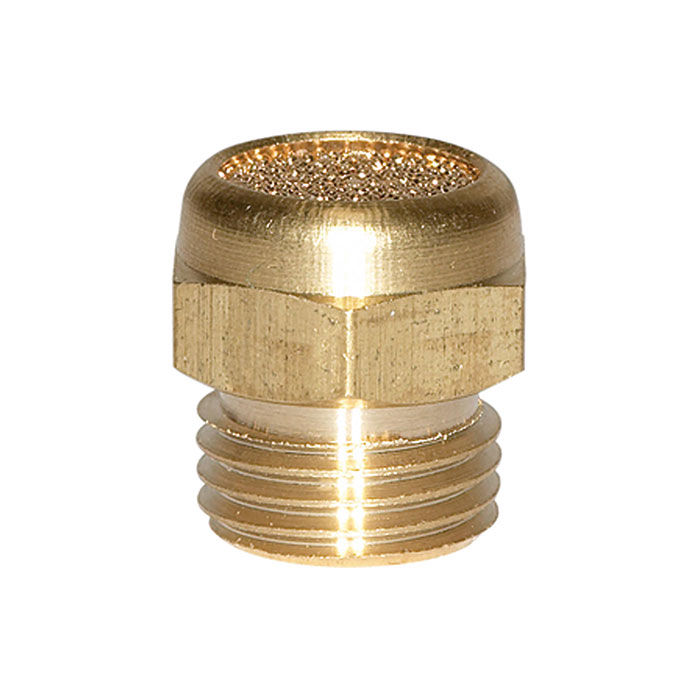

RIEGLER Sintered bronze silencer »value line«, flat, Hexagonal, M5
Type number: 569-0-E
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Sintered bronze silencer "value line", flat, hexagon/thread MS, M5, max. operating pressure 10 bar, operating temp. -10 °C to 200 °C
| Max. operating pressure | 10 bar |
| Operating temperature min. | -10 °C |
| Operating temperature max. | 200 °C |
| Noise level at 6 bar | 80 - 90 dB |
| Thread | M5 |
| SW | 8 mm |
| A | 4 mm |
| B | 7.6 mm |
| C | 6 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Class name | EASY |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[116294] RIEGLER Sintered bronze silencer »value line« flat, Hexagonal, G 1/2](/web/image/product.template/201027/image_128/%5B116294%5D%20RIEGLER%20Sintered%20bronze%20silencer%20%C2%BBvalue%20line%C2%AB%20flat%2C%20Hexagonal%2C%20G%201-2?unique=30a214a)
|
Type number: 569-4-E |
1.94 € | |
![[116292] RIEGLER Sintered bronze silencer »value line« flat, Hexagonal, G 1/4](/web/image/product.template/201025/image_128/%5B116292%5D%20RIEGLER%20Sintered%20bronze%20silencer%20%C2%BBvalue%20line%C2%AB%20flat%2C%20Hexagonal%2C%20G%201-4?unique=ca3489f)
|
Type number: 569-2-E |
0.75 € | |
![[116291] RIEGLER Sintered bronze silencer »value line« flat, Hexagonal, G 1/8](/web/image/product.template/201024/image_128/%5B116291%5D%20RIEGLER%20Sintered%20bronze%20silencer%20%C2%BBvalue%20line%C2%AB%20flat%2C%20Hexagonal%2C%20G%201-8?unique=a74c8ef)
|
Type number: 569-1-E |
0.58 € | |
![[116293] RIEGLER Sintered bronze silencer »value line« flat, Hexagonal, G 3/8](/web/image/product.template/201026/image_128/%5B116293%5D%20RIEGLER%20Sintered%20bronze%20silencer%20%C2%BBvalue%20line%C2%AB%20flat%2C%20Hexagonal%2C%20G%203-8?unique=fd3e54e)
|
Type number: 569-3-E |
1.37 € | |
