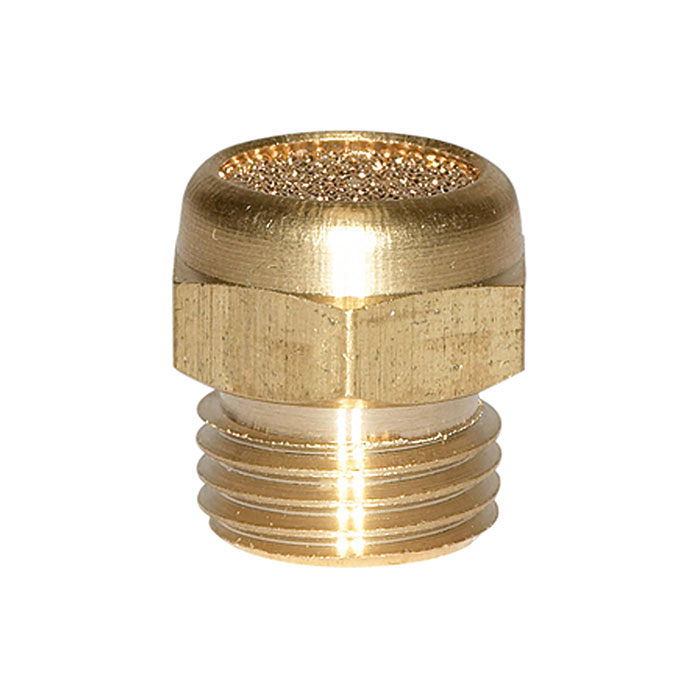

RIEGLER Sintered bronze silencer »value line« flat, Hexagonal, G 1/8
Type number: 569-1-E
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Sintered bronze silencer "value line" flat for noise protection, max. 10 bar, G 1/8 - Type 569-1-E
The RIEGLER sintered bronze silencer "value line" flat design, G 1/8 significantly reduces the blow-off noise of pneumatic valves and cylinders. Designed for a maximum operating pressure of 10 bar. The operating temperature is between -10 °C and 200 °C. G 1/8 connection thread - suitable for common industry standards. Significant noise reduction for improved occupational safety.
Field of application
Typical areas of application: Noise reduction on valves and exhaust air openings.
| Max. operating pressure | 10 bar |
| Operating temperature min. | -10 °C |
| Operating temperature max. | 200 °C |
| Noise level at 6 bar | 80 - 90 dB |
| Thread | G 1/8 |
| SW | 13 mm |
| A | 5.5 mm |
| B | 10.5 mm |
| C | 11 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Class name | EASY |
