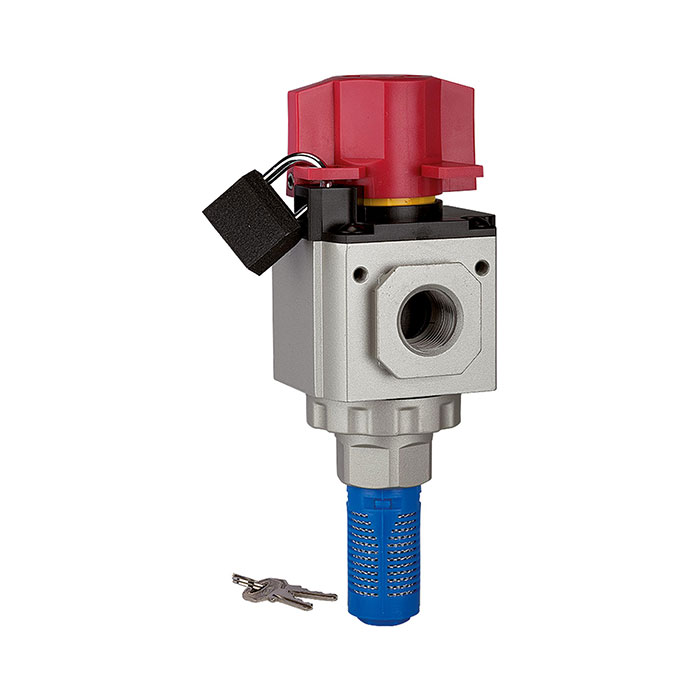

RIEGLER 3/2-way blocking valve »G«, Size 400, G 3/8
Type number: GK 32
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
3/2-way shut-off valve "G" with mounting bracket, padlock and silencer, manually operated, BG 400, G 3/8, inlet pressure 0 - 9 bar
| Inlet pressure min. | 0 bar |
| Inlet pressure max. | 9 bar |
| Housing | Die-cast aluminum |
| Sealing material | NBR |
| Flow rate measurement | with P<sub>1</sub> = 8 bar, P<sub>2 </sub>= 6 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Series | G |
| Medium temperature max. | 70 °C |
| Ambient temperature max. | 70 °C |
| Gag | Plastic |
| Thread | G 3/8 |
| Flow rate | 6200 l/min |
| BG | 400 |
| A | 63 mm |
| B | 134 mm |
| C | 75.5 mm |
| D | 58.5 mm |
| Vent connection | G 1/2 |
| Class name | EASY |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[116435] RIEGLER 3/2-way blocking valve »G«, Size 300, G 1/2](/web/image/product.template/201166/image_128/%5B116435%5D%20RIEGLER%203-2-way%20blocking%20valve%20%C2%BBG%C2%AB%2C%20Size%20300%2C%20G%201-2?unique=4ceda43)
|
Type number: GK 13 |
28.96 € | |
![[116433] RIEGLER 3/2-way blocking valve »G«, Size 300, G 1/4](/web/image/product.template/201164/image_128/%5B116433%5D%20RIEGLER%203-2-way%20blocking%20valve%20%C2%BBG%C2%AB%2C%20Size%20300%2C%20G%201-4?unique=0e01cd6)
|
Type number: GK 11 |
28.96 € | |
![[116434] RIEGLER 3/2-way blocking valve »G«, Size 300, G 3/8](/web/image/product.template/201165/image_128/%5B116434%5D%20RIEGLER%203-2-way%20blocking%20valve%20%C2%BBG%C2%AB%2C%20Size%20300%2C%20G%203-8?unique=731ad27)
|
Type number: GK 12 |
28.96 € | |
![[116437] RIEGLER 3/2-way blocking valve »G«, Size 400, G 1/2](/web/image/product.template/201168/image_128/%5B116437%5D%20RIEGLER%203-2-way%20blocking%20valve%20%C2%BBG%C2%AB%2C%20Size%20400%2C%20G%201-2?unique=c73ff8d)
|
Type number: GK 33 |
40.21 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[116517] RIEGLER Connecting element with wall mounting, 1 hole, L-shaped bracket](/web/image/product.template/201217/image_128/%5B116517%5D%20RIEGLER%20Connecting%20element%20with%20wall%20mounting%2C%201%20hole%2C%20L-shaped%20bracket?unique=5ee6b97)
|
Type number: LB 400 |
9.12 € | |
![[116610] RIEGLER Connecting element with wall mounting, 2 holes, T-shaped bracket](/web/image/product.template/202328/image_128/%5B116610%5D%20RIEGLER%20Connecting%20element%20with%20wall%20mounting%2C%202%20holes%2C%20T-shaped%20bracket?unique=b6035b4)
|
Type number: TB 400 |
9.12 € | |
![[116614] RIEGLER Connecting element without wall mounting, U-shaped band, size 400](/web/image/product.template/202332/image_128/%5B116614%5D%20RIEGLER%20Connecting%20element%20without%20wall%20mounting%2C%20U-shaped%20band%2C%20size%20400?unique=ad17825)
|
Type number: UB 400 |
10.82 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|

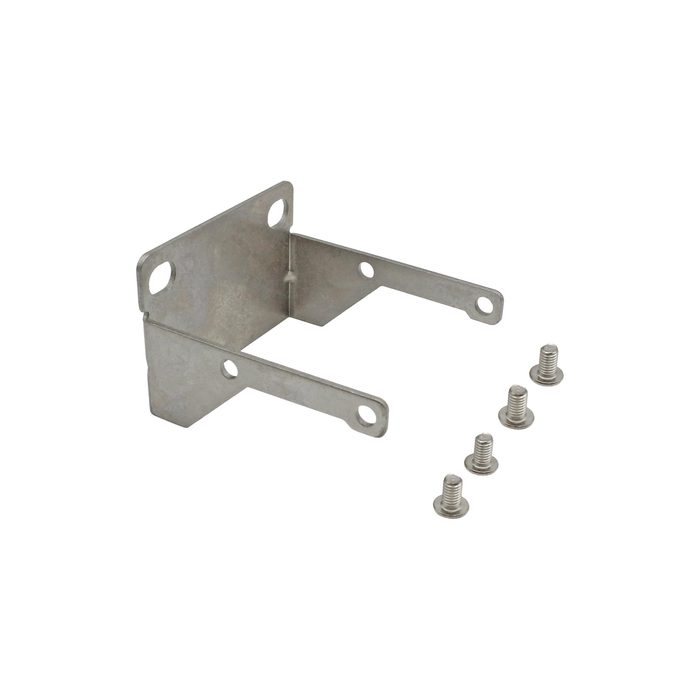

![[116485] RIEGLER Mounting bracket incl. 4 screws, for »G«/»GA«, size 400](/web/image/product.template/201212/image_128/%5B116485%5D%20RIEGLER%20Mounting%20bracket%20incl.%204%20screws%2C%20for%20%C2%BBG%C2%AB-%C2%BBGA%C2%AB%2C%20size%20400?unique=7c87662)
|
