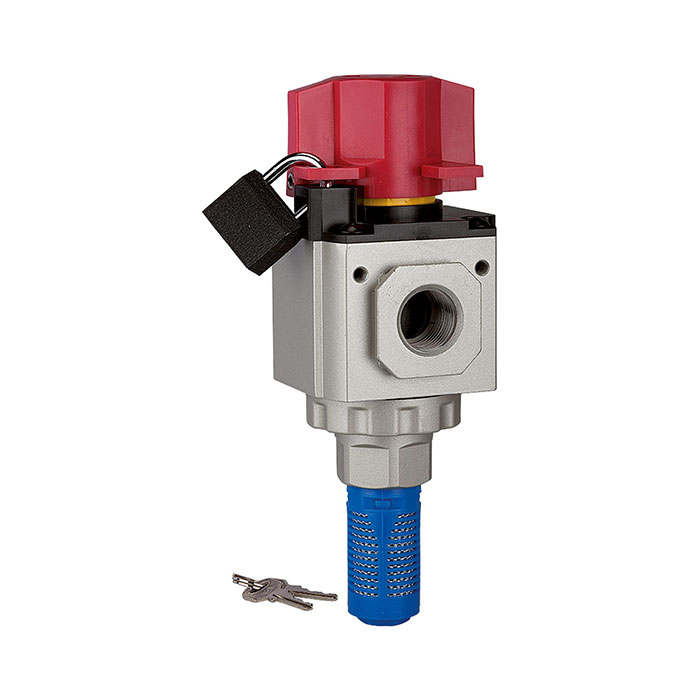

RIEGLER 3/2-way blocking valve »G«, Size 400, G 1/2
Type number: GK 33
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
3/2-way shut-off valve "G" with mounting bracket, padlock and silencer, manually operated, BG 400, G 1/2, inlet pressure 0 - 9 bar
| Inlet pressure min. | 0 bar |
| Inlet pressure max. | 9 bar |
| Housing | Die-cast aluminum |
| Sealing material | NBR |
| Flow rate measurement | with P<sub>1</sub> = 8 bar, P<sub>2 </sub>= 6 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Series | G |
| Medium temperature max. | 70 °C |
| Ambient temperature max. | 70 °C |
| Gag | Plastic |
| Thread | G 1/2 |
| Flow rate | 6200 l/min |
| BG | 400 |
| A | 63 mm |
| B | 134 mm |
| C | 75.5 mm |
| D | 58.5 mm |
| Vent connection | G 1/2 |
| Class name | EASY |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[116435] RIEGLER 3/2-way blocking valve »G«, Size 300, G 1/2](/web/image/product.template/201166/image_128/%5B116435%5D%20RIEGLER%203-2-way%20blocking%20valve%20%C2%BBG%C2%AB%2C%20Size%20300%2C%20G%201-2?unique=bdf437d)
|
Type number: GK 13 |
28.81 € | |
![[116433] RIEGLER 3/2-way blocking valve »G«, Size 300, G 1/4](/web/image/product.template/201164/image_128/%5B116433%5D%20RIEGLER%203-2-way%20blocking%20valve%20%C2%BBG%C2%AB%2C%20Size%20300%2C%20G%201-4?unique=6a5cbf5)
|
Type number: GK 11 |
28.81 € | |

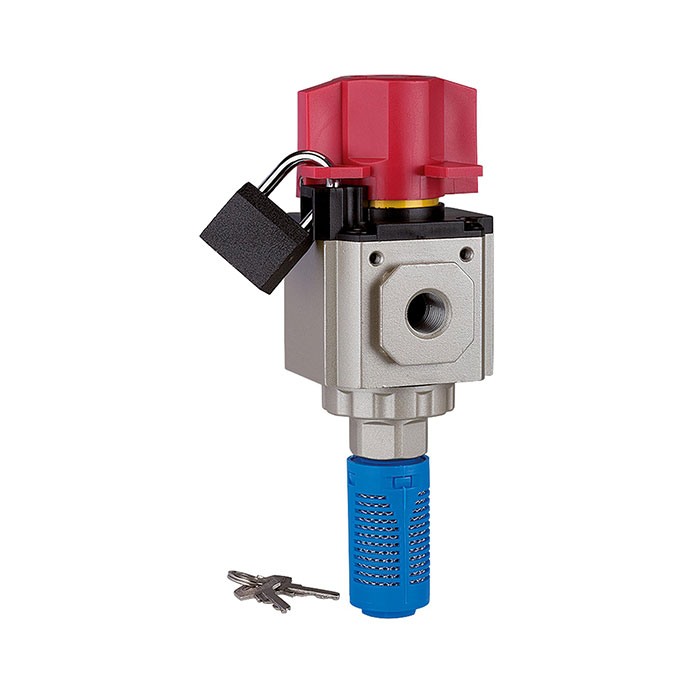

![[116434] RIEGLER 3/2-way blocking valve »G«, Size 300, G 3/8](/web/image/product.template/201165/image_128/%5B116434%5D%20RIEGLER%203-2-way%20blocking%20valve%20%C2%BBG%C2%AB%2C%20Size%20300%2C%20G%203-8?unique=47fbf6e)
|
