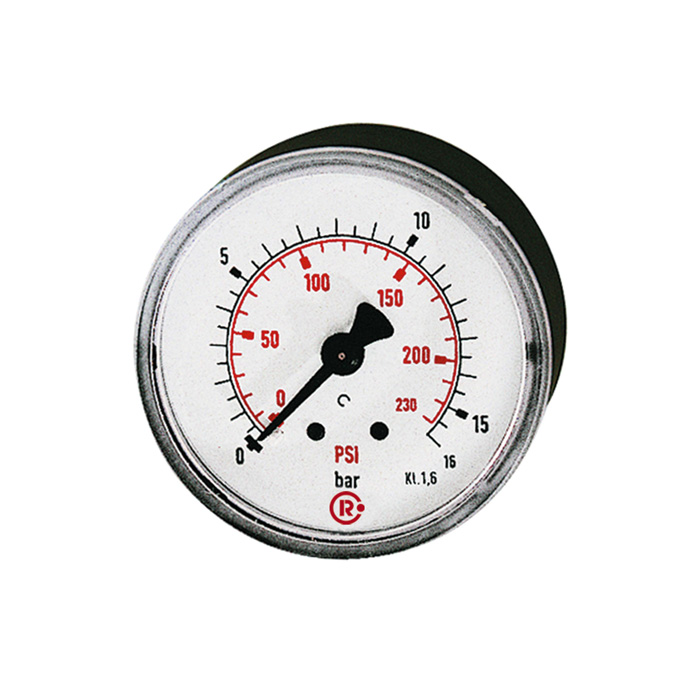

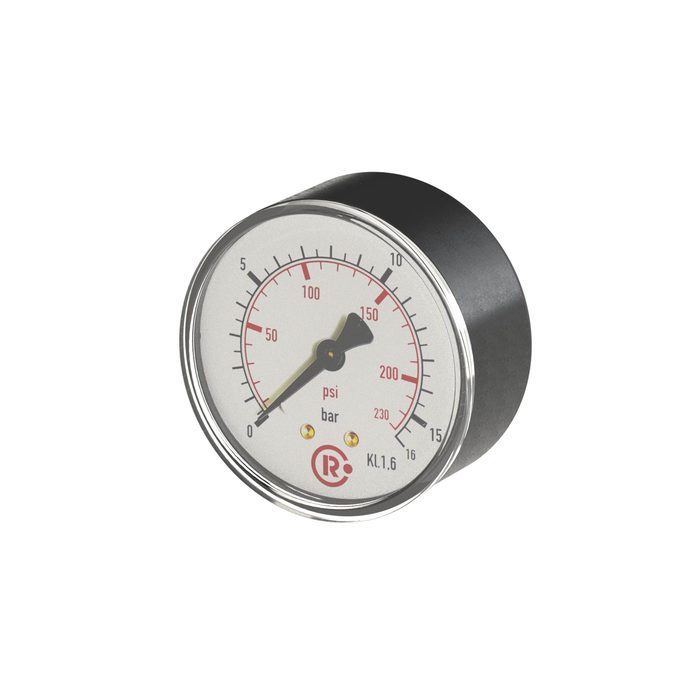

RIEGLER Standard mano, plastic, G 1/4 rear, 0 - 6.0 bar/87 psi, Ø 40
Type number: 110.02-KD
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Standard pressure gauge, Double scale, Connection, rear, centr., G 1/4, Goods class 1.6, Measurement range 0-6 bar/87 psi, Ø 40
| Housing | Plastic |
| Medium temperature min. | -20 °C |
| Medium temperature max. | 60 °C |
| Ambient temperature min. | -20 °C |
| Ambient temperature max. | 60 °C |
| Measuring element | Copper alloy |
| Pointer movement | Copper alloy |
| Viewing window | Plastic crystal clear |
| Measuring range min. bar | 0 |
| Measuring range max. bar | 6 |
| Measuring range min. psi | 0 |
| Diameter | 40 mm |
| Graduation value in the bar range | 0.2 bar |
| Connection | G 1/4 |
| Measuring range max. psi | 87 |
| Quality class | 45444 |
| Connection position | rear, centric |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[101244] RIEGLER Standard pressure gauge, rear centric, G 1/4, 0 - 10 bar/145 psi](/web/image/product.template/140679/image_128/%5B101244%5D%20RIEGLER%20Standard%20pressure%20gauge%2C%20rear%20centric%2C%20G%201-4%2C%200%20-%2010%20bar-145%20psi?unique=2733aaa)
|
Type number: 217-KD |
6.30 € | |
![[101398] RIEGLER Standard pressure gauge, rear centric, G 1/4, 0 - 16 bar/230 psi](/web/image/product.template/169372/image_128/%5B101398%5D%20RIEGLER%20Standard%20pressure%20gauge%2C%20rear%20centric%2C%20G%201-4%2C%200%20-%2016%20bar-230%20psi?unique=ae20dc8)
|
Type number: 218-KD |
6.30 € | |
![[101462] RIEGLER Standard pressure gauge, rear centric, G 1/4, 0 - 25 bar/360 psi](/web/image/product.template/169436/image_128/%5B101462%5D%20RIEGLER%20Standard%20pressure%20gauge%2C%20rear%20centric%2C%20G%201-4%2C%200%20-%2025%20bar-360%20psi?unique=cdc5abf)
|
Type number: 219-KD |
6.30 € | |
![[101222] RIEGLER Standard pressure gauge, rear centric, G 1/4, 0 - 2.5 bar/36 psi](/web/image/product.template/140658/image_128/%5B101222%5D%20RIEGLER%20Standard%20pressure%20gauge%2C%20rear%20centric%2C%20G%201-4%2C%200%20-%202.5%20bar-36%20psi?unique=c8fda57)
|
Type number: 214-KD |
6.30 € | |
![[101223] RIEGLER Standard pressure gauge, rear centric, G 1/4, 0 - 4 bar/58 psi](/web/image/product.template/140659/image_128/%5B101223%5D%20RIEGLER%20Standard%20pressure%20gauge%2C%20rear%20centric%2C%20G%201-4%2C%200%20-%204%20bar-58%20psi?unique=66c8faf)
|
Type number: 215-KD |
6.30 € | |
![[101224] RIEGLER Standard pressure gauge, rear centric, G 1/4, 0 - 6 bar/87 psi](/web/image/product.template/140660/image_128/%5B101224%5D%20RIEGLER%20Standard%20pressure%20gauge%2C%20rear%20centric%2C%20G%201-4%2C%200%20-%206%20bar-87%20psi?unique=9aee9e2)
|
Type number: 216-KD |
6.30 € | |
![[116896] RIEGLER Standard mano, plastic, G 1/4 rear, 0 - 10.0 bar/145 psi, Ø40](/web/image/product.template/274705/image_128/%5B116896%5D%20RIEGLER%20Standard%20mano%2C%20plastic%2C%20G%201-4%20rear%2C%200%20-%2010.0%20bar-145%20psi%2C%20%C3%9840?unique=3a4dbf5)
|
Type number: 110.03-KD |
5.82 € | |
![[116901] RIEGLER Standard mano, plastic, G 1/4 rear, 0 - 16.0 bar/230 psi, Ø40](/web/image/product.template/274706/image_128/%5B116901%5D%20RIEGLER%20Standard%20mano%2C%20plastic%2C%20G%201-4%20rear%2C%200%20-%2016.0%20bar-230%20psi%2C%20%C3%9840?unique=9168f54)
|
Type number: 110.04-KD |
5.82 € | |
![[142533] RIEGLER Standard Mano, plastic, G 1/4 rear, 0 - 1.6 bar/23 psi, Ø 50](/web/image/product.template/277781/image_128/%5B142533%5D%20RIEGLER%20Standard%20Mano%2C%20plastic%2C%20G%201-4%20rear%2C%200%20-%201.6%20bar-23%20psi%2C%20%C3%98%2050?unique=890a6f9)
|
Type number: 202-KD |
6.30 € | |
![[149044] RIEGLER Standard mano, plastic, G 1/4 rear, 0 - 1.6 bar/23 psi, Ø 63](/web/image/product.template/276000/image_128/%5B149044%5D%20RIEGLER%20Standard%20mano%2C%20plastic%2C%20G%201-4%20rear%2C%200%20-%201.6%20bar-23%20psi%2C%20%C3%98%2063?unique=38c5f96)
|
Typennummer: 213-KD |
22.96 € | |
![[149047] RIEGLER Standard Mano, plastic, G 1/4 rear, 0 - 25.0 bar/360 psi, Ø40](/web/image/product.template/276001/image_128/%5B149047%5D%20RIEGLER%20Standard%20Mano%2C%20plastic%2C%20G%201-4%20rear%2C%200%20-%2025.0%20bar-360%20psi%2C%20%C3%9840?unique=0877902)
|
Typennummer: 110.05-KD |
5.82 € | |
![[116892] RIEGLER Standard mano, plastic, G 1/4 rear, 0 - 4.0 bar/58 psi, Ø 40](/web/image/product.template/274703/image_128/%5B116892%5D%20RIEGLER%20Standard%20mano%2C%20plastic%2C%20G%201-4%20rear%2C%200%20-%204.0%20bar-58%20psi%2C%20%C3%98%2040?unique=e9a256a)
|
Type number: 110.01-KD |
5.82 € | |
![[101677] RIEGLER Standard pressure gauge, rear centric, G 1/4, 0 - 10 bar/145 psi](/web/image/product.template/169649/image_128/%5B101677%5D%20RIEGLER%20Standard%20pressure%20gauge%2C%20rear%20centric%2C%20G%201-4%2C%200%20-%2010%20bar-145%20psi?unique=c9ab48e)
|
Type number: 206-KD |
6.30 € | |
![[101678] RIEGLER Standard pressure gauge, rear centric, G 1/4, 0 - 16 bar/230 psi](/web/image/product.template/169650/image_128/%5B101678%5D%20RIEGLER%20Standard%20pressure%20gauge%2C%20rear%20centric%2C%20G%201-4%2C%200%20-%2016%20bar-230%20psi?unique=c74a5f4)
|
Type number: 207-KD |
6.30 € | |
![[101679] RIEGLER Standard pressure gauge, rear centric, G 1/4, 0 - 25 bar/360 psi](/web/image/product.template/169651/image_128/%5B101679%5D%20RIEGLER%20Standard%20pressure%20gauge%2C%20rear%20centric%2C%20G%201-4%2C%200%20-%2025%20bar-360%20psi?unique=cc2897c)
|
Type number: 208-KD |
6.30 € | |
![[101674] RIEGLER Standard pressure gauge, rear centric, G 1/4, 0 - 2.5 bar/36 psi](/web/image/product.template/169646/image_128/%5B101674%5D%20RIEGLER%20Standard%20pressure%20gauge%2C%20rear%20centric%2C%20G%201-4%2C%200%20-%202.5%20bar-36%20psi?unique=71f91c8)
|
Type number: 203-KD |
6.30 € | |
![[101675] RIEGLER Standard pressure gauge, rear centric, G 1/4, 0 - 4 bar/58 psi](/web/image/product.template/169647/image_128/%5B101675%5D%20RIEGLER%20Standard%20pressure%20gauge%2C%20rear%20centric%2C%20G%201-4%2C%200%20-%204%20bar-58%20psi?unique=3272194)
|
Type number: 204-KD |
6.30 € | |
![[101676] RIEGLER Standard pressure gauge, rear centric, G 1/4, 0 - 6 bar/87 psi](/web/image/product.template/169648/image_128/%5B101676%5D%20RIEGLER%20Standard%20pressure%20gauge%2C%20rear%20centric%2C%20G%201-4%2C%200%20-%206%20bar-87%20psi?unique=57a0339)
|
Type number: 205-KD |
6.30 € | |
![[101672] RIEGLER Standard pressure gauge, rear centric, G 1/8, 0 - 10 bar/145 psi](/web/image/product.template/169644/image_128/%5B101672%5D%20RIEGLER%20Standard%20pressure%20gauge%2C%20rear%20centric%2C%20G%201-8%2C%200%20-%2010%20bar-145%20psi?unique=e9eece8)
|
Type number: 110.46-KD |
6.15 € | |
![[101534] RIEGLER Standard pressure gauge, rear centric, G 1/8, 0 - 16 bar/230 psi](/web/image/product.template/169508/image_128/%5B101534%5D%20RIEGLER%20Standard%20pressure%20gauge%2C%20rear%20centric%2C%20G%201-8%2C%200%20-%2016%20bar-230%20psi?unique=b653074)
|
Type number: 110.47-KD |
6.15 € | |
![[101673] RIEGLER Standard pressure gauge, rear centric, G 1/8, 0 - 25 bar/360 psi](/web/image/product.template/169645/image_128/%5B101673%5D%20RIEGLER%20Standard%20pressure%20gauge%2C%20rear%20centric%2C%20G%201-8%2C%200%20-%2025%20bar-360%20psi?unique=e1f637c)
|
Type number: 110.48-KD |
6.15 € | |
![[101670] RIEGLER Standard pressure gauge, rear centric, G 1/8, 0 - 2.5 bar/36 psi](/web/image/product.template/169642/image_128/%5B101670%5D%20RIEGLER%20Standard%20pressure%20gauge%2C%20rear%20centric%2C%20G%201-8%2C%200%20-%202.5%20bar-36%20psi?unique=8ab87e3)
|
Type number: 110.43-KD |
6.15 € | |
![[101671] RIEGLER Standard pressure gauge, rear centric, G 1/8, 0 - 4 bar/58 psi](/web/image/product.template/169643/image_128/%5B101671%5D%20RIEGLER%20Standard%20pressure%20gauge%2C%20rear%20centric%2C%20G%201-8%2C%200%20-%204%20bar-58%20psi?unique=4b2ea45)
|
Type number: 110.44-KD |
6.15 € | |
![[101533] RIEGLER Standard pressure gauge, rear centric, G 1/8, 0 - 6 bar/87 psi](/web/image/product.template/169507/image_128/%5B101533%5D%20RIEGLER%20Standard%20pressure%20gauge%2C%20rear%20centric%2C%20G%201-8%2C%200%20-%206%20bar-87%20psi?unique=d08216c)
|
Type number: 110.45-KD |
6.15 € | |
