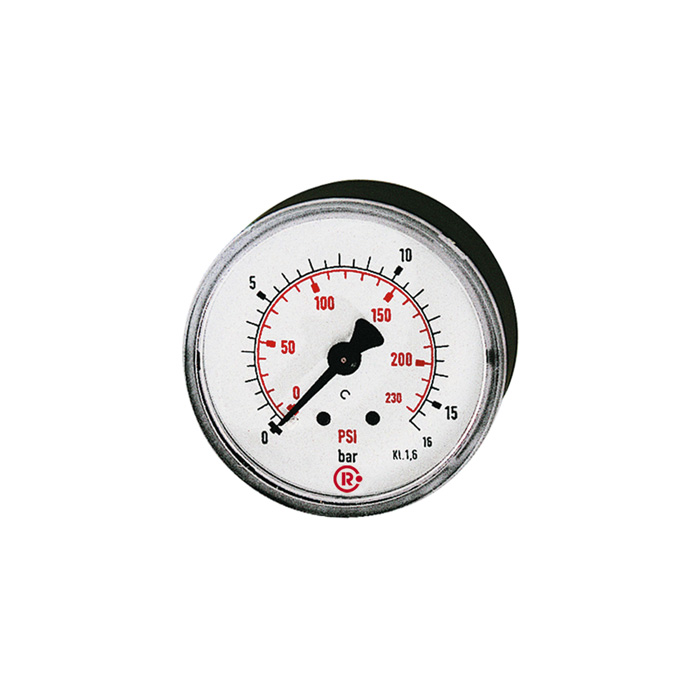

RIEGLER Standard mano, plastic, G 1/4 rear, 0 - 10.0 bar/145 psi, Ø40
Type number: 110.03-KD
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Standard mano made of plastic, for pressure measurement, G 1/4 - Type 110.03-KD
The RIEGLER standard manometer, plastic, G 1/4 rear, 0 - 10.0 bar/145 psi, Ø40 indicates the current system pressure reliably and precisely. The housing is made of plastic. The permissible medium temperature is between -20 °C and 60 °C. G 1/4 connection thread - suitable for common industry standards. Reliable pressure indicator for safe system monitoring.
Field of application
Typical areas of application: Pressure monitoring in compressed air, hydraulic and process systems.
| Housing | Plastic |
| Medium temperature min. | -20 °C |
| Medium temperature max. | 60 °C |
| Ambient temperature min. | -20 °C |
| Ambient temperature max. | 60 °C |
| Measuring element | Copper alloy |
| Pointer movement | Copper alloy |
| Viewing window | Plastic crystal clear |
| Measuring range min. bar | 0 |
| Measuring range max. bar | 10 |
| Measuring range min. psi | 0 |
| Diameter | 40 mm |
| Graduation value in the bar range | 0.2 bar |
| Connection | G 1/4 |
| Measuring range max. psi | 145 |
| Quality class | 45444 |
| Connection position | rear, centric |
| Class name | PLUS |
