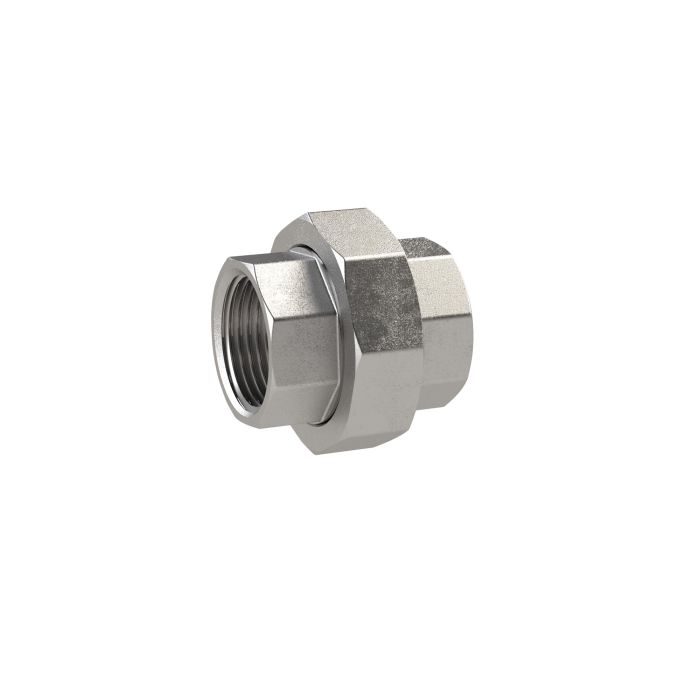

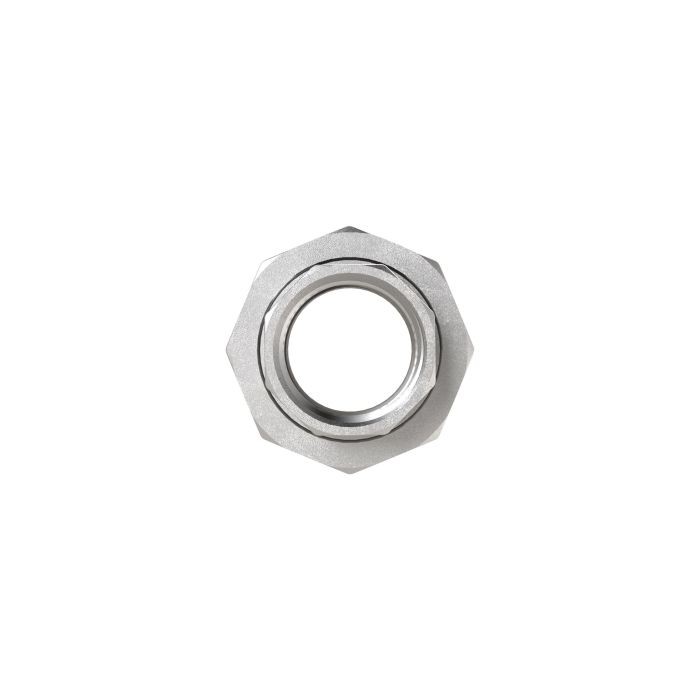

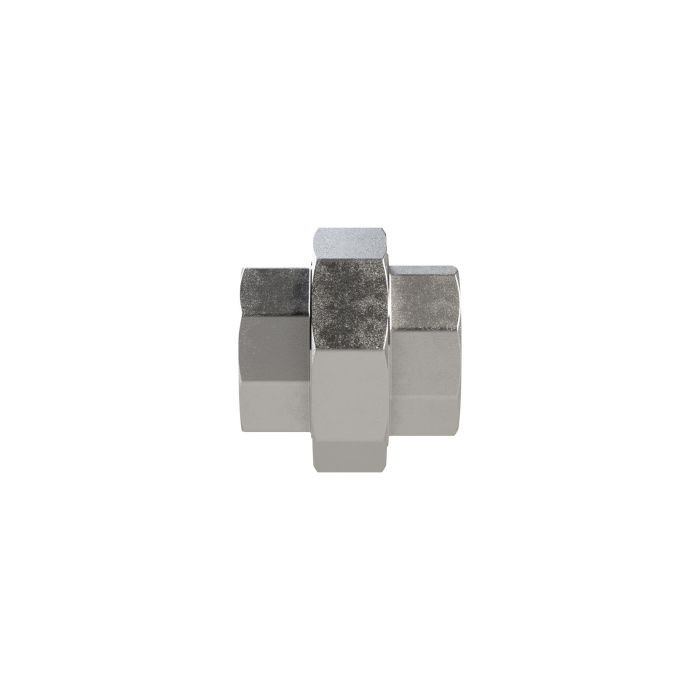

RIEGLER sol. Double threaded nipple, con. tight, G 3/4, IG, SW 46, ES 1.4408
Type number: LDGNG34ES4408KDII
EAN: 4047322723916
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Detachable double threaded nipple, conical sealing, G 3/4, female thread, SW 46, max. working pressure 20 bar, ES 1.4408
| Share of SVHC SCIP | no SVHC substance |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Working pressure max. | 20 bar |
| Execution | conical sealing |
| Exception | no exception |
| CAS No. SVHC 1 | none CAS No. |
| Thread | G 3/4 |
| Thread standard | DIN EN ISO 228-1 |
| Class name | STAINLESS STEEL |

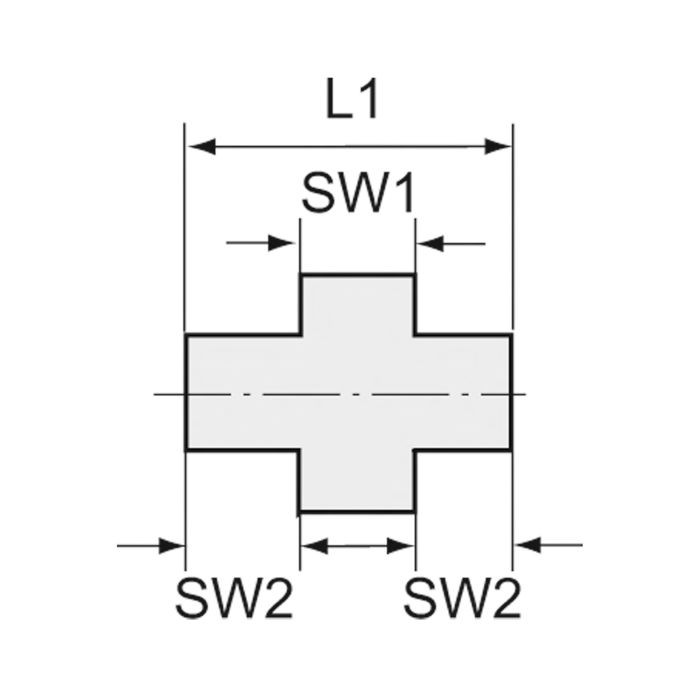

| L1 | 40.5 mm |
| Material identification | 14408 |
| REACH Info | no SVHC substance contained |
| REACH SVHC1 Substance Name | no |
| RoHS Article of the Directive | no entry |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS material information | RoHS compliant |
| SW 1 | 46 mm |
| SW 2 | 31 mm |
