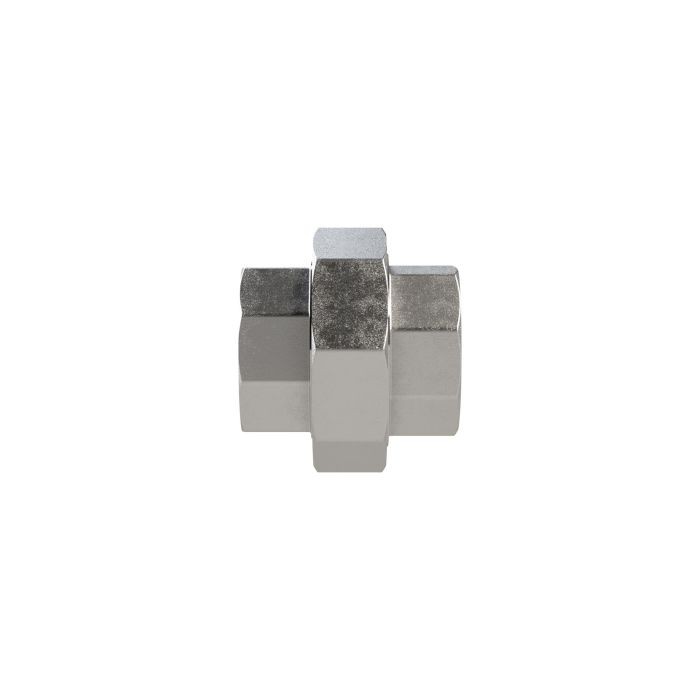

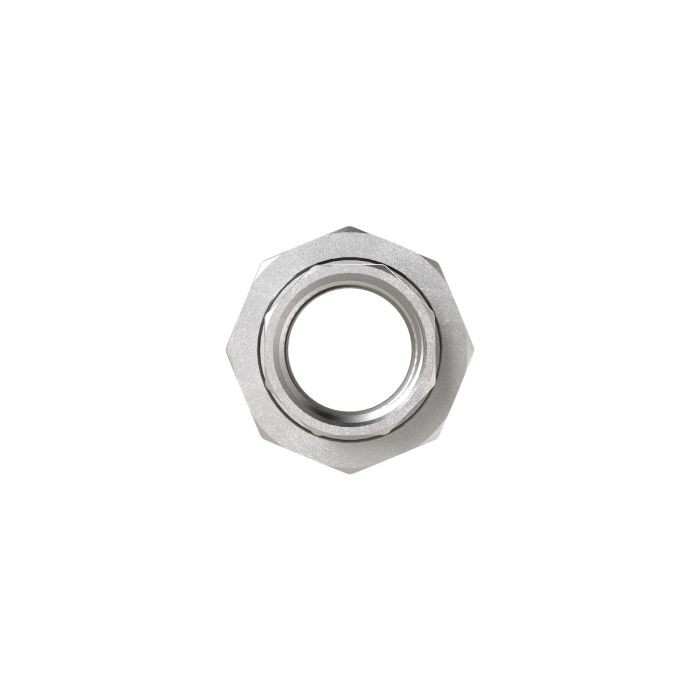

RIEGLER sol. Double threaded nipple, con. tight, G 1 1/2, internal thread, SW 72, ES 1.4408
Type number: LDGNG112ES4408KDII
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Detachable double threaded nipple, conical sealing, G 1 1/2, female thread, SW 72, max. working pressure 20 bar, ES 1.4408
| Working pressure max. | 20 bar |
| Thread | G 1 1/2 |
| Thread standard | DIN EN ISO 228-1 |
| Execution | conical sealing |

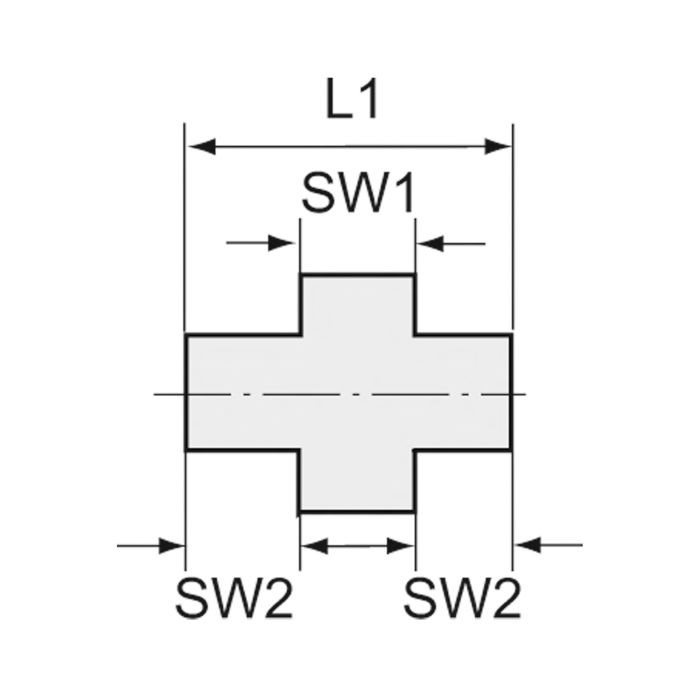

| L1 | 56.3 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | no entry |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| SCIP message number Supplier | no SCIP No. available |
| Share of SVHC SCIP | no SVHC substance |
| SCIP message number RIEGLER | no SCIP No. available |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Material identification | 14408 |
| Class name | STAINLESS STEEL |
| Stand Material Compliance | 45139 |
| SW 1 | 72 mm |
| SW 2 | 54 mm |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[118794] RIEGLER sol. Double threaded nipple, con. tight, G 1 1/4, IG, SW65, ES 1.4408](/web/image/product.template/267926/image_128/%5B118794%5D%20RIEGLER%20sol.%20Double%20threaded%20nipple%2C%20con.%20tight%2C%20G%201%201-4%2C%20IG%2C%20SW65%2C%20ES%201.4408?unique=2644488)
|
Type number: LDGNG114ES4408KDII |
16.48 € | |
![[118790] RIEGLER sol. Double threaded nipple, con. tight, G 1/2, female thread, SW 38, ES 1.4408](/web/image/product.template/280937/image_128/%5B118790%5D%20RIEGLER%20sol.%20Double%20threaded%20nipple%2C%20con.%20tight%2C%20G%201-2%2C%20female%20thread%2C%20SW%2038%2C%20ES%201.4408?unique=94b6c7d)
|
Type number: LDGNG12ES4408KDII |
5.38 € | |
![[118786] RIEGLER sol. Double threaded nipple, con. tight, G 1/4, IG, SW 30, ES 1.4408](/web/image/product.template/268096/image_128/%5B118786%5D%20RIEGLER%20sol.%20Double%20threaded%20nipple%2C%20con.%20tight%2C%20G%201-4%2C%20IG%2C%20SW%2030%2C%20ES%201.4408?unique=3e2e127)
|
Type number: LDGNG14ES4408KDII |
4.38 € | |
![[118793] RIEGLER sol. Double threaded nipple, con. tight, G 1, IG, SW 54, ES 1.4408](/web/image/product.template/267909/image_128/%5B118793%5D%20RIEGLER%20sol.%20Double%20threaded%20nipple%2C%20con.%20tight%2C%20G%201%2C%20IG%2C%20SW%2054%2C%20ES%201.4408?unique=2f2951f)
|
Type number: LDGNG1ES4408KDII |
12.82 € | |

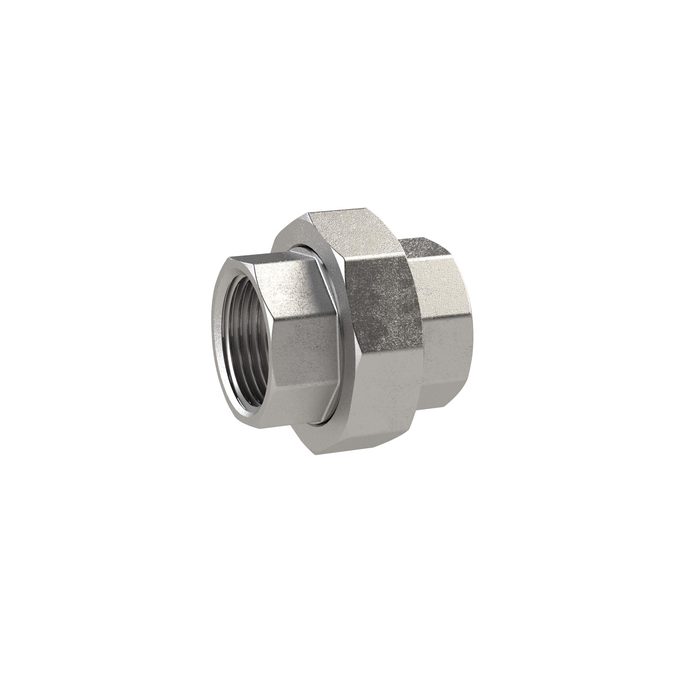

![[118842] RIEGLER sol. Double threaded nipple, con. tight, G 2, IG, SW 86, ES 1.4408](/web/image/product.template/268070/image_128/%5B118842%5D%20RIEGLER%20sol.%20Double%20threaded%20nipple%2C%20con.%20tight%2C%20G%202%2C%20IG%2C%20SW%2086%2C%20ES%201.4408?unique=1c623cc)
|
