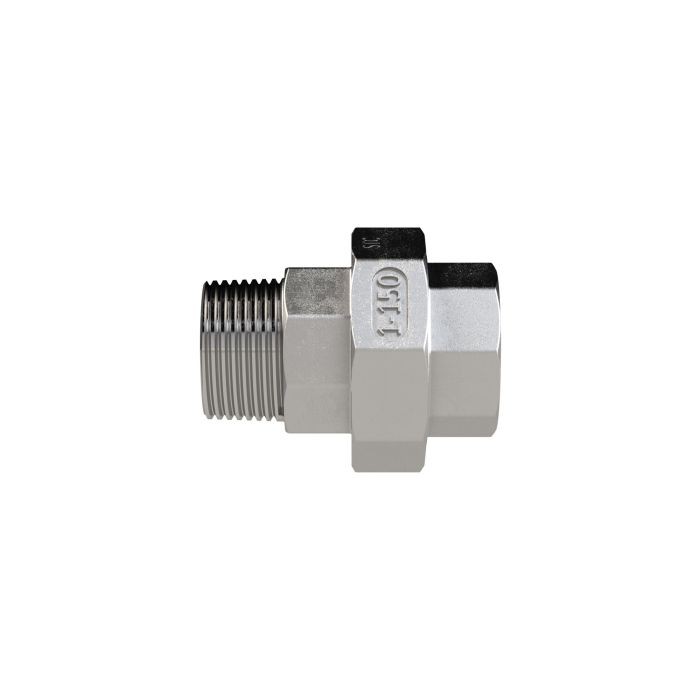

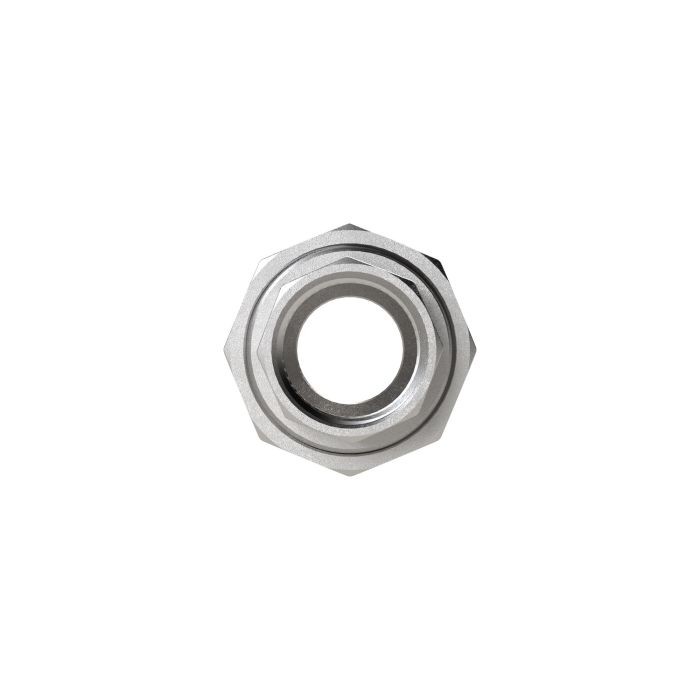

RIEGLER sol. Double nipple, con. tight, G 1/2, I/A, SW 38, ES1.4408
Type number: LDGNG12ES4408KDIA
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER sol. Double nipple for pipeline construction, max. 20 bar, G 1/2 - Type LDGNG12ES4408KDIA
The RIEGLER sol. Double nipple, con. tight, G 1/2, I/A, SW 38, ES1.4408 connects two female threaded connections of the same or different sizes. Designed for a maximum operating pressure of 20 bar. Connection thread G 1/2 (DIN EN ISO 228-1) - suitable for common industry standards. Universal adapter for different thread sizes.
Field of application
Typical areas of application: Pipeline construction, compressed air distribution and sanitary installations.
| Share of SVHC SCIP | no SVHC substance |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Working pressure max. | 20 bar |
| Execution | conical sealing |
| Exception | no exception |
| CAS No. SVHC 1 | none CAS No. |
| Thread | G 1/2 |
| Thread standard | DIN EN ISO 228-1 |
| Class name | STAINLESS STEEL |

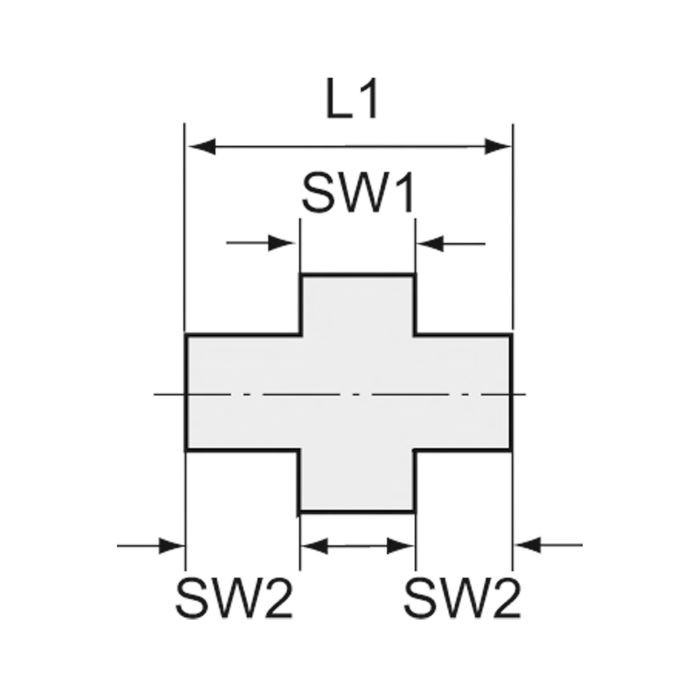

| L1 | 52.5 mm |
| Material identification | 14408 |
| REACH Info | no SVHC substance contained |
| REACH SVHC1 Substance Name | no |
| RoHS Article of the Directive | no entry |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS material information | RoHS compliant |
| SW 1 | 38 mm |
| SW 2 | 25 mm |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[118861] RIEGLER sol. Double nipple, con.tight, G 1 1/2, I/A, SW 72, ES1.4408](/web/image/product.template/280945/image_128/%5B118861%5D%20RIEGLER%20sol.%20Double%20nipple%2C%20con.tight%2C%20G%201%201-2%2C%20I-A%2C%20SW%2072%2C%20ES1.4408?unique=3c99e33)
|
Type number: LDGNG112ES4408KDIA |
25.03 € | |
![[118860] RIEGLER sol. Double nipple, con. tight, G 1 1/4, I/A, SW 65, ES1.4408](/web/image/product.template/267965/image_128/%5B118860%5D%20RIEGLER%20sol.%20Double%20nipple%2C%20con.%20tight%2C%20G%201%201-4%2C%20I-A%2C%20SW%2065%2C%20ES1.4408?unique=dae330a)
|
Type number: LDGNG114ES4408KDIA |
18.00 € | |
![[118855] RIEGLER sol. Double nipple, con. tight, G 1/4, I/A, SW 30, ES1.4408](/web/image/product.template/280944/image_128/%5B118855%5D%20RIEGLER%20sol.%20Double%20nipple%2C%20con.%20tight%2C%20G%201-4%2C%20I-A%2C%20SW%2030%2C%20ES1.4408?unique=26acfcd)
|
Type number: LDGNG14ES4408KDIA |
5.32 € | |
![[118859] RIEGLER sol. Double nipple, con. tight, G 1, I/A, SW 54, ES1.4408](/web/image/product.template/267911/image_128/%5B118859%5D%20RIEGLER%20sol.%20Double%20nipple%2C%20con.%20tight%2C%20G%201%2C%20I-A%2C%20SW%2054%2C%20ES1.4408?unique=87e2e3a)
|
Type number: LDGNG1ES4408KDIA |
13.77 € | |
![[118862] RIEGLER sol. Double nipple, con. tight, G 2, I/A, SW 85, ES1.4408](/web/image/product.template/268091/image_128/%5B118862%5D%20RIEGLER%20sol.%20Double%20nipple%2C%20con.%20tight%2C%20G%202%2C%20I-A%2C%20SW%2085%2C%20ES1.4408?unique=d236f74)
|
Type number: LDGNG2ES4408KDIA |
35.12 € | |
![[118858] RIEGLER sol. Double nipple, con. tight, G 3/4, I/A, SW 46, ES1.4408](/web/image/product.template/267784/image_128/%5B118858%5D%20RIEGLER%20sol.%20Double%20nipple%2C%20con.%20tight%2C%20G%203-4%2C%20I-A%2C%20SW%2046%2C%20ES1.4408?unique=6d653c9)
|
Type number: LDGNG34ES4408KDIA |
8.14 € | |

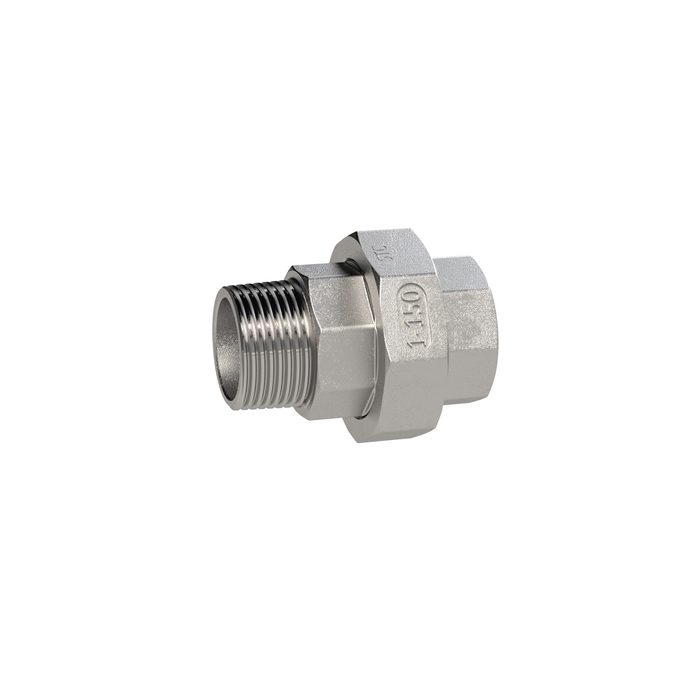

![[118856] RIEGLER sol. Double nipple, con. tight, G 3/8, I/A, SW 34, ES1.4408](/web/image/product.template/267697/image_128/%5B118856%5D%20RIEGLER%20sol.%20Double%20nipple%2C%20con.%20tight%2C%20G%203-8%2C%20I-A%2C%20SW%2034%2C%20ES1.4408?unique=f3ead41)
|
Type number: LDGNG38ES4408KDIA |
5.90 € | |
