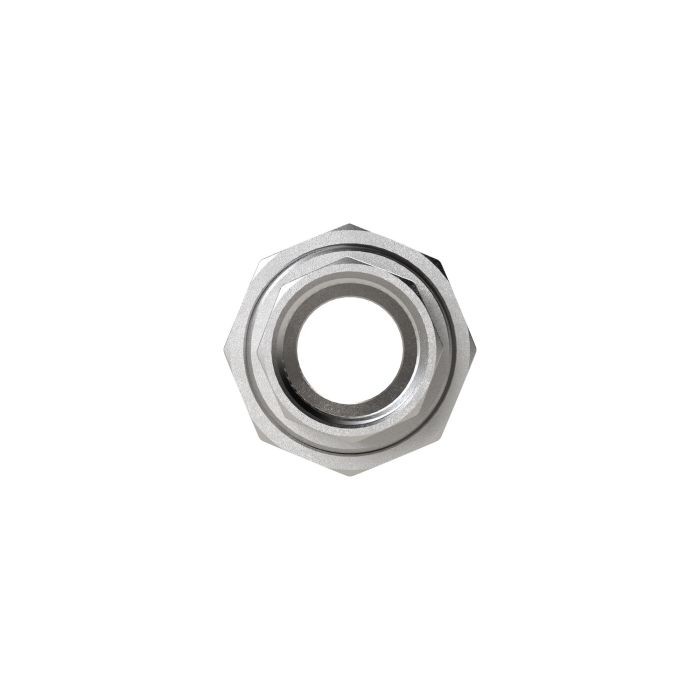

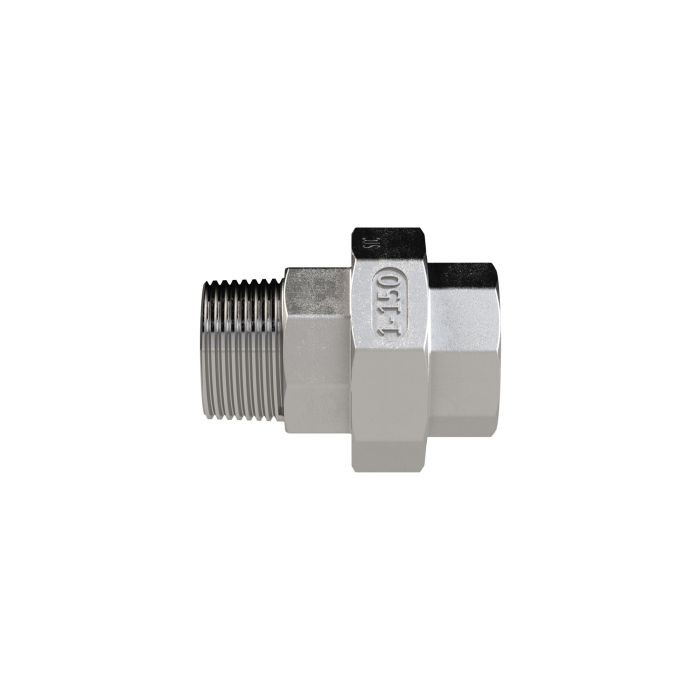

RIEGLER sol. Double nipple, con. tight, G 1 1/4, I/A, SW 65, ES1.4408
Type number: LDGNG114ES4408KDIA
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER sol. Double nipple for pipeline construction, max. 20 bar, G 1 1/4 - Type LDGNG114ES4408KDIA
The RIEGLER sol. Double nipple, con.tight, G 1 1/4, I/A, SW 65, ES1.4408 connects two female threaded connections of the same or different sizes. Designed for a maximum operating pressure of 20 bar. Connection thread G 1 1/4 (DIN EN ISO 228-1) - suitable for common industry standards. Universal adapter for different thread sizes.
Field of application
Typical areas of application: Pipeline construction, compressed air distribution and sanitary installations.
| Share of SVHC SCIP | no SVHC substance |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Working pressure max. | 20 bar |
| Execution | conical sealing |
| Exception | no exception |
| CAS No. SVHC 1 | none CAS No. |
| Thread | G 1 1/4 |
| Thread standard | DIN EN ISO 228-1 |
| Class name | STAINLESS STEEL |

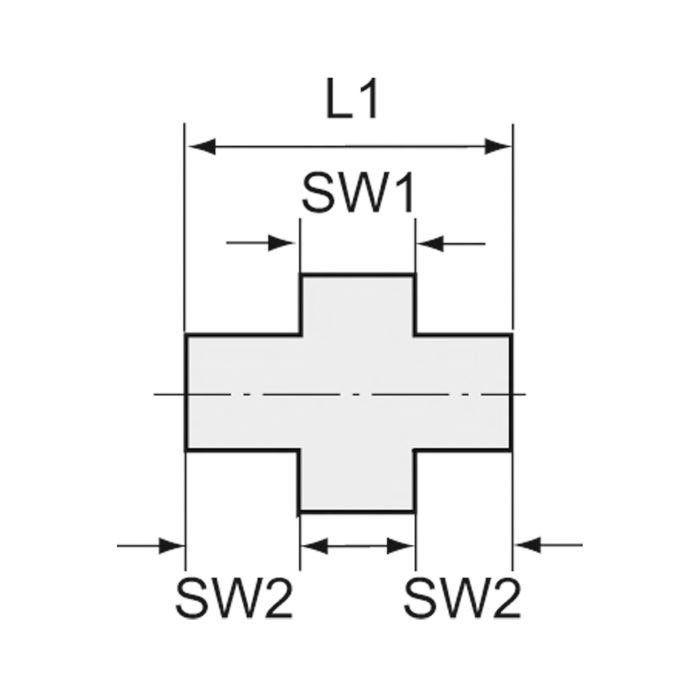

| L1 | 72 mm |
| Material identification | 14408 |
| REACH Info | no SVHC substance contained |
| REACH SVHC1 Substance Name | no |
| RoHS Article of the Directive | no entry |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS material information | RoHS compliant |
| SW 1 | 65 mm |
| SW 2 | 47 mm |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[118861] RIEGLER sol. Double nipple, con.tight, G 1 1/2, I/A, SW 72, ES1.4408](/web/image/product.template/280945/image_128/%5B118861%5D%20RIEGLER%20sol.%20Double%20nipple%2C%20con.tight%2C%20G%201%201-2%2C%20I-A%2C%20SW%2072%2C%20ES1.4408?unique=3c99e33)
|
Type number: LDGNG112ES4408KDIA |
25.03 € | |
![[118857] RIEGLER sol. Double nipple, con. tight, G 1/2, I/A, SW 38, ES1.4408](/web/image/product.template/267727/image_128/%5B118857%5D%20RIEGLER%20sol.%20Double%20nipple%2C%20con.%20tight%2C%20G%201-2%2C%20I-A%2C%20SW%2038%2C%20ES1.4408?unique=e91c6cb)
|
Type number: LDGNG12ES4408KDIA |
6.22 € | |

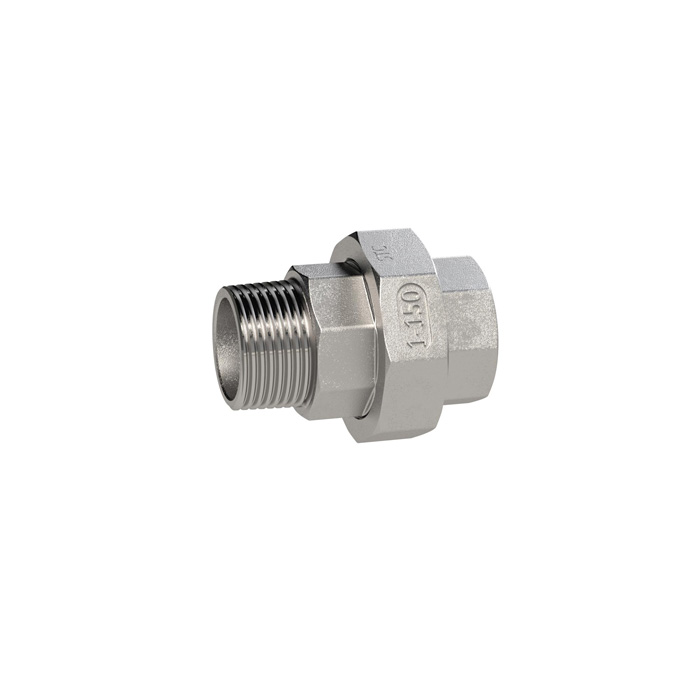

![[118855] RIEGLER sol. Double nipple, con. tight, G 1/4, I/A, SW 30, ES1.4408](/web/image/product.template/280944/image_128/%5B118855%5D%20RIEGLER%20sol.%20Double%20nipple%2C%20con.%20tight%2C%20G%201-4%2C%20I-A%2C%20SW%2030%2C%20ES1.4408?unique=26acfcd)
|
