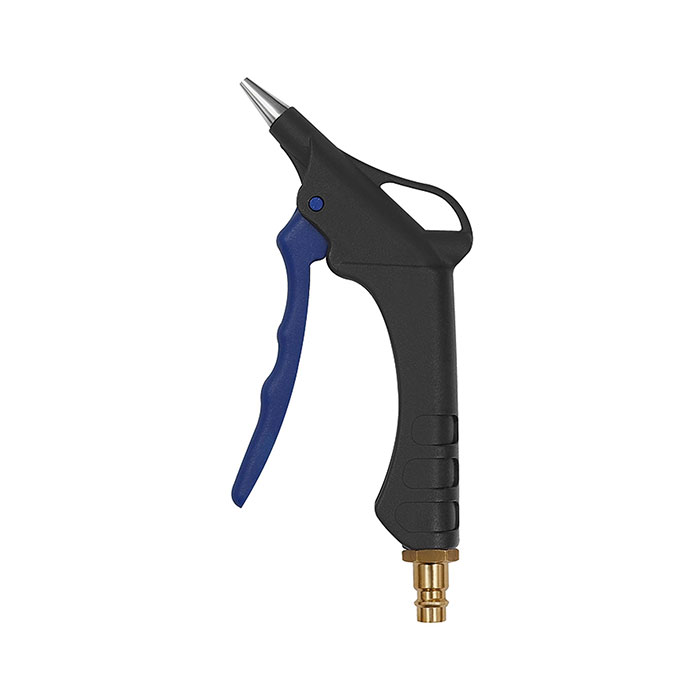

RIEGLER Blow gun, Plastic, with short nozzle, G 1/4 female
Type number: 50 D
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Blow gun, plastic, with short nozzle, G 1/4 internal, operating temperature -20 °C to 45 °C, PN max. 10 bar
| Max. operating pressure | 10 bar |
| Material | Plastic |
| Operating temperature min. | -20 °C |
| Operating temperature max. | 45 °C |
| Connection type | G 1/4 inside |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Class name | EASY |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[125364] RIEGLER Blow gun, Plastic, with short nozzle, Nipple ID 7.2 - 7.8](/web/image/product.template/202493/image_128/%5B125364%5D%20RIEGLER%20Blow%20gun%2C%20Plastic%2C%20with%20short%20nozzle%2C%20Nipple%20ID%207.2%20-%207.8?unique=696b567)
|
Type number: 50 F |
9.15 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[142249] RIEGLER Blow gun holder, incl. 2 brackets](/web/image/product.template/210704/image_128/%5B142249%5D%20RIEGLER%20Blow%20gun%20holder%2C%20incl.%202%20brackets?unique=cb15400)
|
Type number: BPH-1 |
10.42 € | |

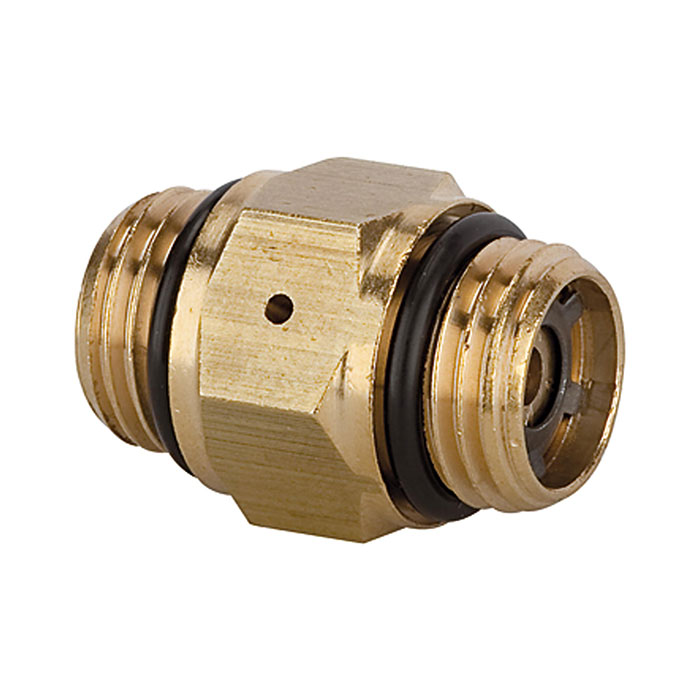

![[101506] RIEGLER Mini pressure regulator, G 1/4 ET/ET, pre-set 2 bar](/web/image/product.template/169480/image_128/%5B101506%5D%20RIEGLER%20Mini%20pressure%20regulator%2C%20G%201-4%20ET-ET%2C%20pre-set%202%20bar?unique=878699a)
|
Type number: 638.42 |
22.93 € | |
![[101507] RIEGLER Mini pressure regulator, G 1/4 ET/ET, pre-set 4 bar](/web/image/product.template/169481/image_128/%5B101507%5D%20RIEGLER%20Mini%20pressure%20regulator%2C%20G%201-4%20ET-ET%2C%20pre-set%204%20bar?unique=2f71856)
|
Type number: 638.44 |
22.93 € | |
![[101508] RIEGLER Mini pressure regulator, G 1/4 ET/ET, pre-set 6 bar](/web/image/product.template/169482/image_128/%5B101508%5D%20RIEGLER%20Mini%20pressure%20regulator%2C%20G%201-4%20ET-ET%2C%20pre-set%206%20bar?unique=9d59f6b)
|
Type number: 638.46 |
22.93 € | |
