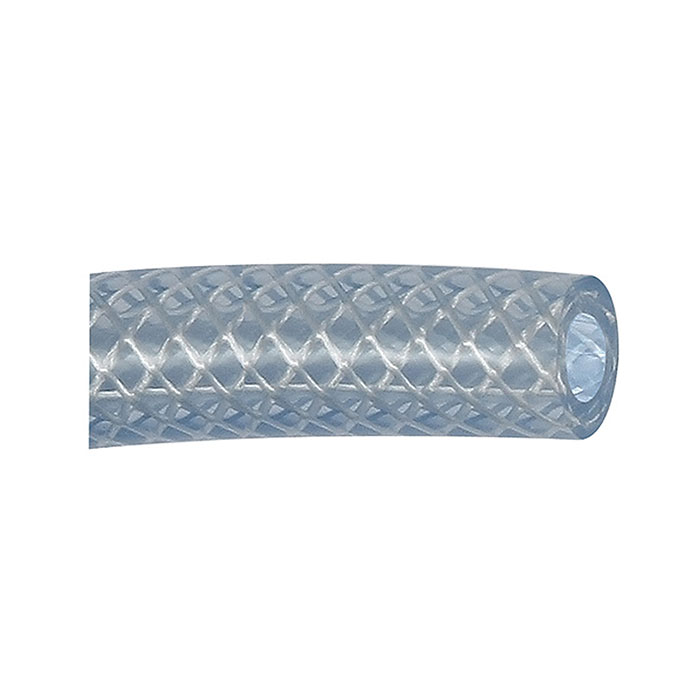

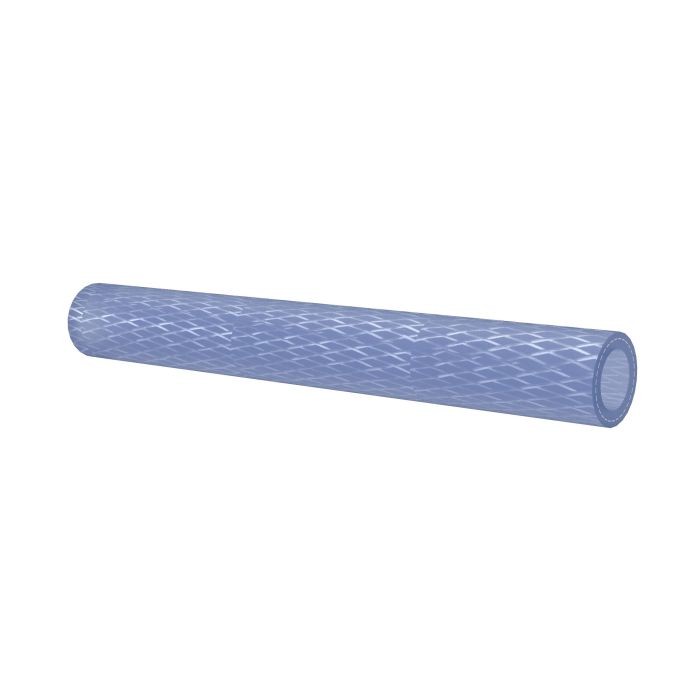

RIEGLER PVC fabric hose, hose-ø 14x8, roll of 50 m
Type number: PGS14X8-50
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
PVC fabric hose, temp. -20 °C to 60 °C, hose ø 14x8, PN at 23 °C max. 15 bar air, 20 bar liquids, roll of 50 m
| Share of SVHC SCIP | no SVHC substance |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Exception | no exception |
| Bending radius min. | 25 mm |
| CAS No. SVHC 1 | none CAS No. |
| Class name | PLUS |
| Max. operating pressure at 23 °C | 15 bar |
| Max. operating pressure liquids at 23 | 20 bar |
| REACH Info | no SVHC substance contained |
| REACH SVHC1 Substance Name | no |
| RoHS Article of the Directive | no entry |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS material information | RoHS compliant |
| Roll length | 50 m |
| Outer hose Ø | 14 mm |
| Hose Ø inside | 8 mm |
| Temperature range max. | 60 °C |
| Temperature range min. | -20 °C |
